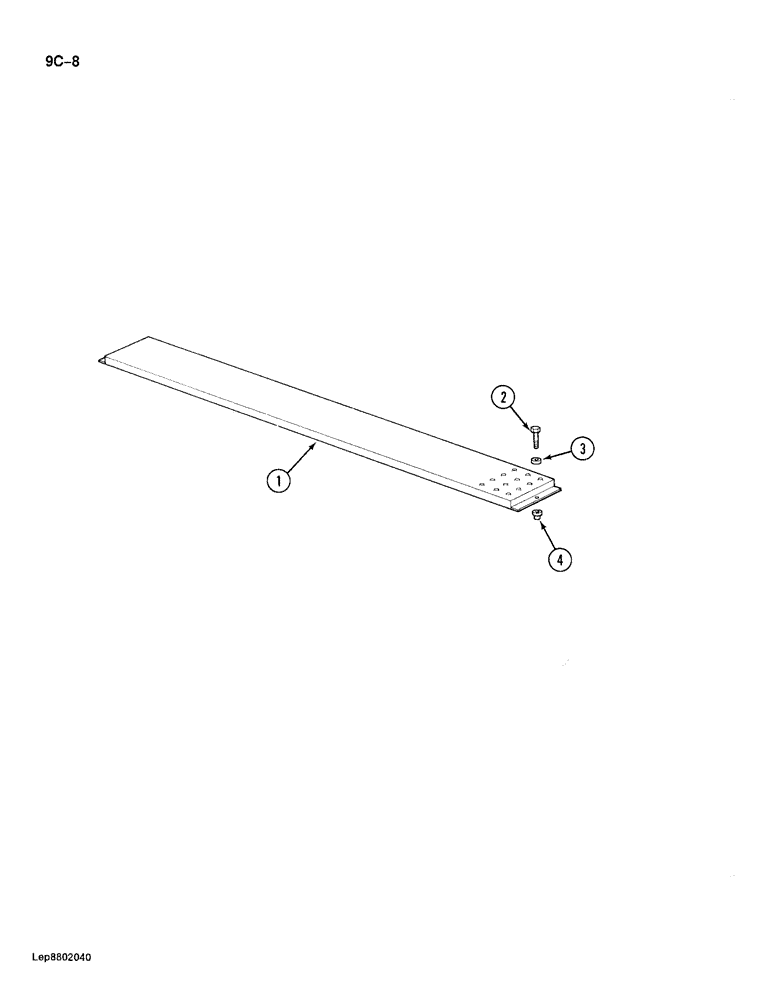

Запчасти Case 688 (9C-8) - OPERATOR PLATFORM (09) - CHASSIS

1

P4247956

WALKWAY

PLATFORM - operator walkway

1шт.

2

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

BOLT, Hex, M8 x 25, 8.8

2шт.

3

P3528794

WASHER

SPACER - bolt, 6 mm thick

2шт.

4

P35448

RIVET

RETAINER - bolt, sleeve type

2шт.
