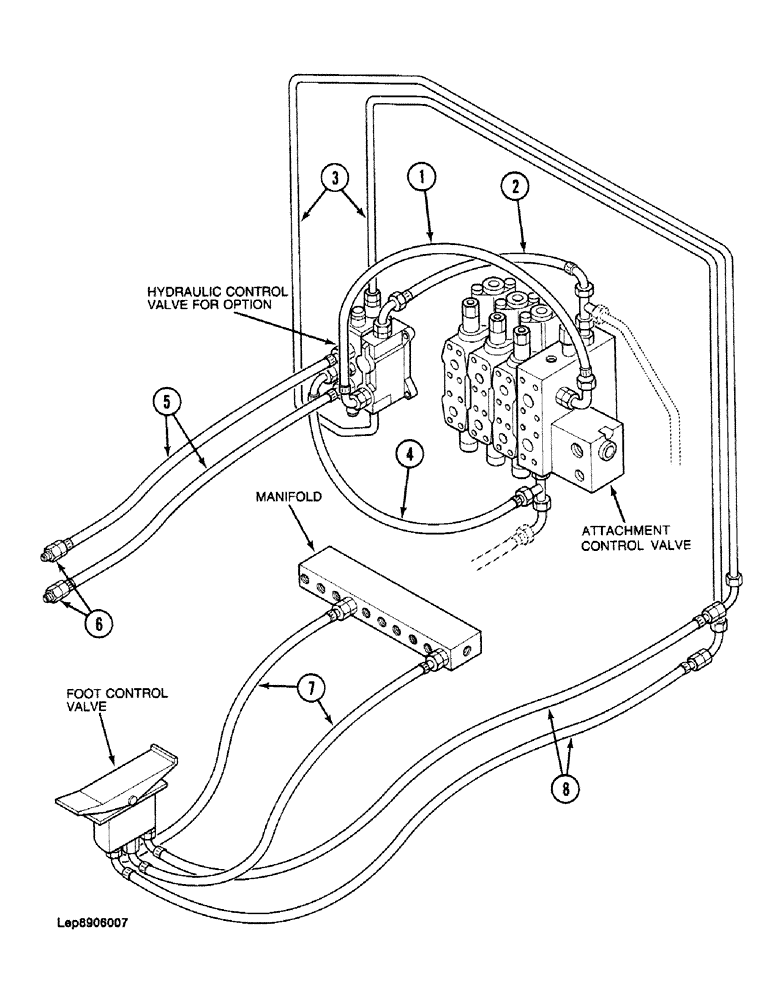

Запчасти Case 688 (1-22) - PICTORIAL INDEX, OPTIONAL HYDRAULIC CIRCUIT (00) - PICTORIAL INDEX

1

Hose, Attachment Control Valve to Optional Hydraulic Control Valve, Pressure, Page 8F-5

1шт.

2

Hose, Attachment Control Valve to Optional Hydraulic Control Valve, Page 8F-5

1шт.

3

Tube, Optional Hydraulic Control Valve to Foot Control Valve, Page 8F-5

1шт.

4

Hose, Return Optional Hydraulic Control Valve to Attachment Control Valve, Page 8F-5

1шт.

5

Hoses, Optional Hydraulic Control Valve to Attachment Tubes, see page 1-25 for continuation, Page 8F-5

1шт.

6

Tubes, see page 1-25 for continuation, Page 8F-5

1шт.

7

Hoses, Foot Control Valve to Manifold, Page 8F-3

1шт.

8

Hose, Foot Control Valve to Tubes, Page 8F-3

1шт.
