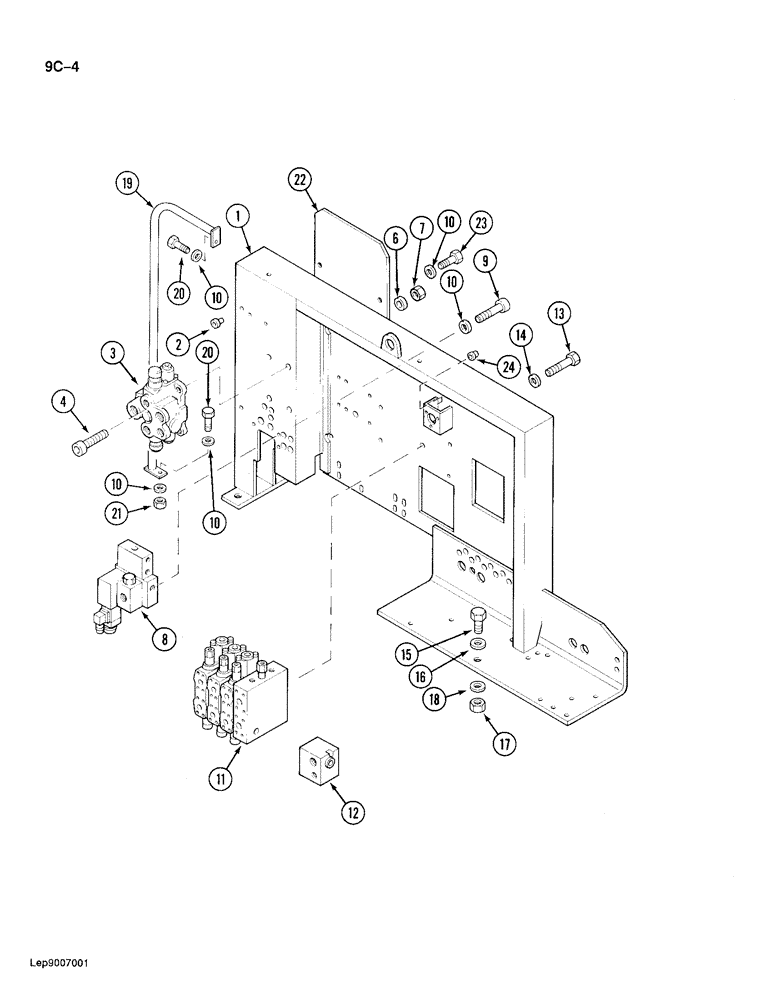

Запчасти Case 688 (9C-4) - VALVE MOUNTING PANEL, P.I.N. FROM 11642 AND AFTER (09) - CHASSIS

1

P2154956

PARTITION

PANEL - valve mounting

1шт.

2

P234587

NUT

RETAINER - bolt, sleeve type, 8 mm

11шт.

3

REF

INSTRUCTION

VALVE ASSEMBLY - swing control, see Figure 8C-42

1шт.

4

P32935

SCREW

BOLT - hex socket, 10 mm x 40 mm

4шт.

6

P3528795

WASHER

SPACER - bolt, 7 mm thick

4шт.

7

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

4шт.

8

REF

INSTRUCTION

VALVE ASSEMBLY - solenoid and swing brake release, see Figures 8C-32 and 8C-34

1шт.

9

P32922

SCREW

BOLT - hex, 8 mm x 25 mm

3шт.

10

P3528794

WASHER

SPACER - bolt, 6 mm thick

3шт.

11

REF

INSTRUCTION

VALVE ASSEMBLY - attachment control, see Figures 8C-20 and 8C-22

1шт.

12

REF

INSTRUCTION

BLOCK ASSEMBLY - attachment control valve, see Figures 8C-26 and 8C-28

1шт.

13

P33840

SCREW

BOLT - hex, 12 mm x 30 mm

3шт.

14

P3528793

WASHER

SPACER - bolt, 8 mm thick

3шт.

15

P33866

SCREW

BOLT - hex, 20 mm x 75 mm

6шт.

16

P4328747

WASHER

SPACER - bolt, 14 mm thick

6шт.

17

P134564

SAFETY NUT

NUT - hex, self-locking, 20 mm

6шт.

18

P5428789

WASHER

SPACER - bolt, 7 mm thick

6шт.

19

P4247976

GRAB RAIL

HANDLE - platform access

1шт.

20

P133884

SCREW

BOLT - hex, 8 mm x 35 mm

2шт.

21

P134596

SAFETY NUT

NUT - hex, self-locking, 8 mm

1шт.

22

P4623479

HOOD

PLATE - cover

1шт.

23

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

BOLT, Hex, M8 x 25, 8.8

4шт.

24

P834513

NUT

RETAINER - bolt, sleeve type, 6 mm

3шт.
