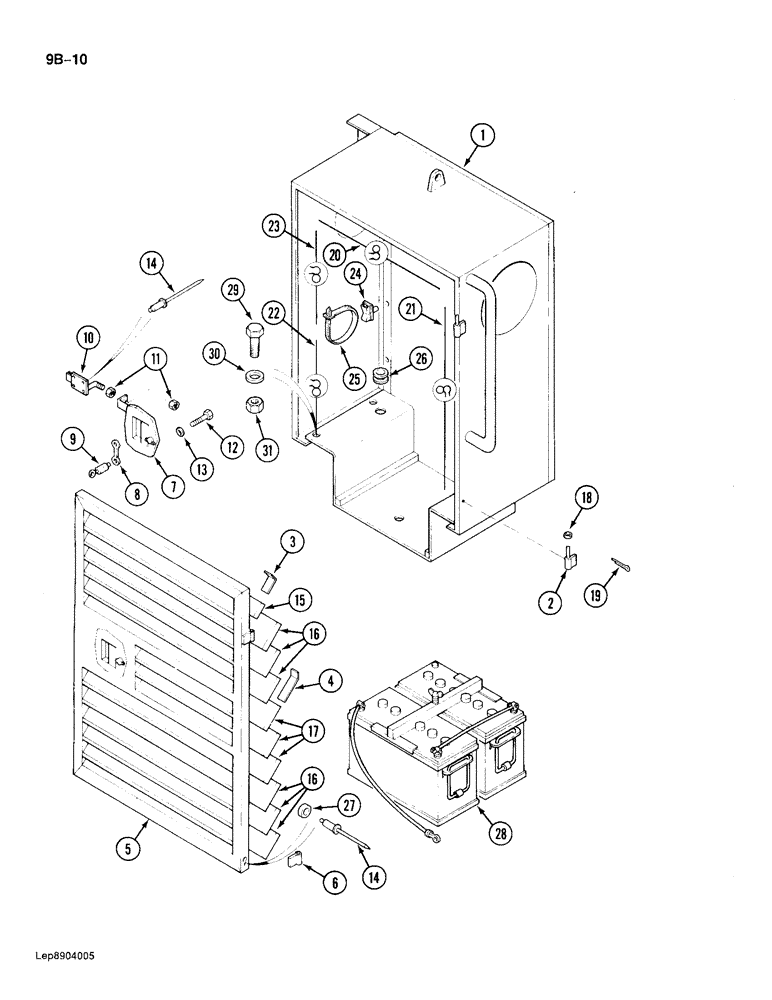

Запчасти Case 688 (9B-10) - BATTERY AND AIR CLEANER COMPARTMENT (09) - CHASSIS

1

P8043815

ELECTRICAL CABINET

COMPARTMENT - battery and air cleaner

1шт.

2

P36666

FIXED HINGE

PIN - hinge, door

2шт.

3

P1524518

PROTECTION PLATE

RETAINER - pad to door, small

4шт.

4

P1524519

PROTECTION PLATE

RETAINER - pad to door, large

33шт.

5

P7543878

DOOR

- battery and air cleaner compartment, Includes: Ref. 6, Serial Range: 11601-XXXXX

1шт.

6

P36667

FENDER

BRACKET - hinge

2шт.

5

P8443853

DOOR

- battery air cleaner compartment, Includes: Ref. 6, Start Serial: XXXXX

1шт.

6

P36667

FENDER

BRACKET - hinge

2шт.

P852092

LOCK ASSY

LOCK AND LATCH ASSEMBLY - compartment door, Includes: Ref. 7 - 10

1шт.

7

P852096

HANDLE

AND LOCK ASSEMBLY - door, Includes: Ref. 8 & 9

1шт.

8

P2340499

DOOR COVER

COVER - cylinder

1шт.

9

P152083

LOCK, CYLINDER

CYLINDER AND KEY - lock

1шт.

P1352009

KEY

- cylinder

1шт.

10

P1352011

END FITTING

LATCH AND ROD ASSEMBLY - door lock

1шт.

11

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.

12

P32621

SCREW

BOLT - hex, 6 mm x 16 mm

4шт.

13

P3528799

WASHER

SPACER - bolt, 4 mm thick

4шт.

14

P35413

RIVET

POP RIVET - 8 mm x 16.5 mm

5шт.

15

P3841438

FOAM

PAD - grill, upper, Serial Range: 11601-XXXXX

1шт.

15

P4441408

LARGE PLATE

PAD - grill, upper, Start Serial: XXXXX

1шт.

16

P3841437

FOAM

PAD - grill, long, Serial Range: 11601-XXXXX

6шт.

16

P4441406

LARGE PLATE

PAD - grill, long, Start Serial: XXXXX

6шт.

17

P3841436

FOAM

PAD - grill, short, Serial Range: 11601-XXXXX

3шт.

17

P4441407

LARGE PLATE

PAD - grill, short, Start Serial: XXXXX

3шт.

18

P34607

WASHER

- flat, M6 N

2шт.

19

P35510

SPLIT PIN

COTTER PIN - 2 mm x 20 mm

2шт.

20

REF

INSTRUCTION

SEAL - compartment door, 27-1/2" long, cut from P1303155

1шт.

21

REF

INSTRUCTION

SEAL - compartment door, 29-7/8" long, cut from P1303155

1шт.

22

REF

INSTRUCTION

SEAL - compartment door, 14-1/4" long, cut from P1303155

1шт.

23

REF

INSTRUCTION

SEAL - compartment door, 15-1/2" long, cut from P1303155

1шт.

24

P3036926

BASE

RETAINER - harness strap

3шт.

25

P336923

CLAMP

TIE STRAP - nylon, 4-5/8" long

3шт.

26

P3441407

GROMMET

- rubber, electrical harness

1шт.

27

P41467

STOP

PLUG - door, rubber

1шт.

28

REF

INSTRUCTION

BATTERIES, BATTERY MOUNTING AND CABLE - electrical, see Figure 4-34

1шт.

29

P33866

SCREW

BOLT - hex, 20 mm x 75 mm

4шт.

30

P4328747

WASHER

SPACER - bolt, 14 mm thick

8шт.

31

P134564

SAFETY NUT

NUT - hex, self-locking, 20 mm

4шт.
