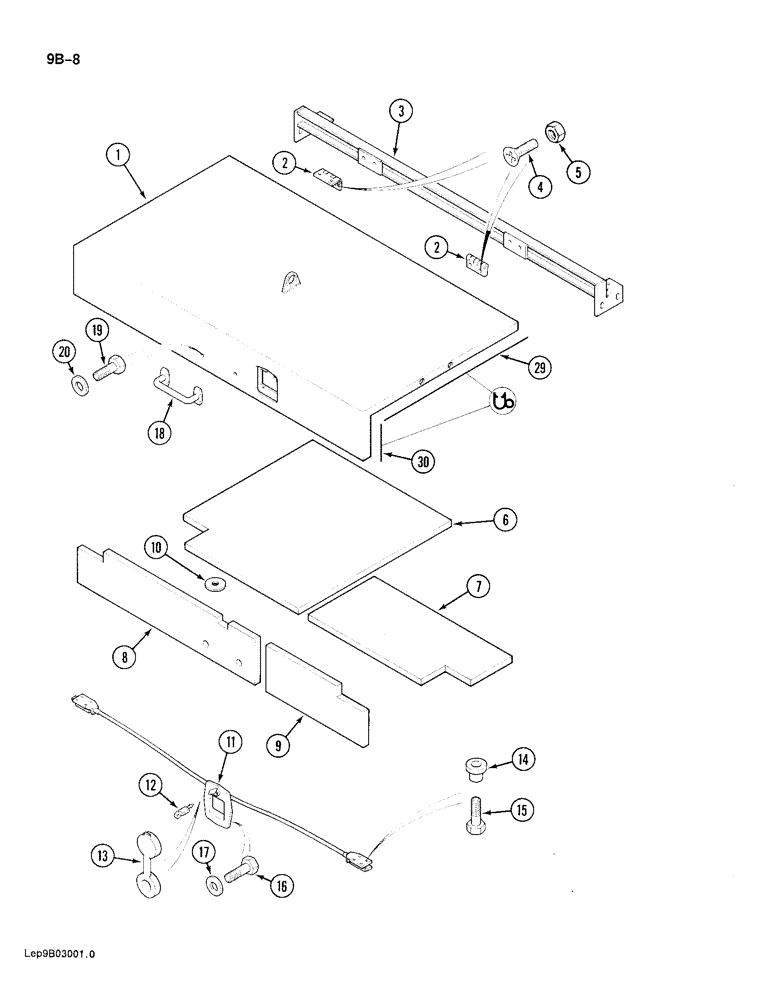

Запчасти Case 688 (9B-08) - ENGINE UPPER ACCESS COVER, P.I.N. FROM XXXXX AND AFTER (09) - CHASSIS

1

P8643836

COWL

COVER AND HINGE ASSEMBLY - engine upper access, Includes: Ref. 2

1шт.

2

P736667

HINGE

- cover

2шт.

P3337440

PLUG

- plastic, grease

2шт.

3

P7828204

CROSSBAR

BRACKET - cover

1шт.

4

P32465

SCREW

- hex socket, 10 mm x 25 mm

4шт.

5

P134596

SAFETY NUT

NUT - hex, self-locking, 10 mm

4шт.

6

P4441453

FOAM

PAD - insulation, access cover, center

1шт.

7

P4441454

FOAM

PAD - insulation, access cover, right-hand

1шт.

8

P4441455

FOAM

PAD - insulation, access cover, front right-hand

1шт.

9

P4441456

FOAM

PAD - insulation, access cover, front left-hand

1шт.

10

P3036998

CLIP,ELECTRICAL

RETAINER -, Serial Range: pad-cover

13шт.

11

P1352042

LOCK ASSY

LOCK ASSEMBLY - upper access cover, Includes: Ref. 12 & 13

1шт.

12

P152083

LOCK, CYLINDER

CYLINDER - lock

1шт.

P1352009

KEY

- lock

2шт.

13

P2340499

DOOR COVER

PROTECTOR - cylinder

1шт.

14

P35466

RIVET

RETAINER - bolt, sleeve type

8шт.

15

P433853

SCREW

BOLT - hex, 5 mm x 20 mm

8шт.

16

P32621

SCREW

BOLT - hex, 6 mm x 16 mm

4шт.

17

P3528799

WASHER

SPACER - bolt, 4 mm thick

4шт.

18

P1352041

HANDLE

- cover lift

1шт.

19

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8

2шт.

20

P3528794

WASHER

SPACER - bolt, 6 mm thick

2шт.

21

REF

INSTRUCTION

SEAL - cover, 25-1/2" long, cut from P1303155

2шт.

22

REF

INSTRUCTION

SEAL - cover, 5-3/8" long, cut from P1303155

2шт.
