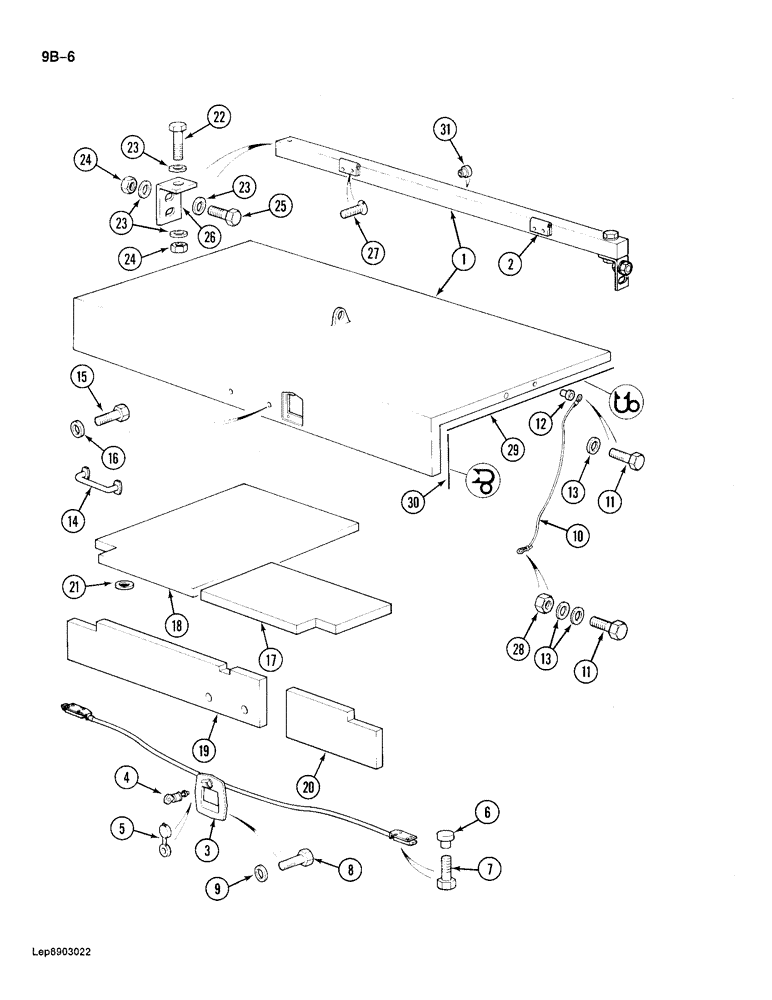

Запчасти Case 688 (9B-06) - ENGINE UPPER ACCESS COVER, P.I.N. FROM 11601 TO XXXXX (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
P8143845
HOOD ASSY.
COVER AND HINGE ASSEMBLY - engine upper access, Includes: Ref. 2 - 5
1шт.
2
P736667
HINGE
- cover
2шт.
P3337440
PLUG
- plastic, grease
2шт.
3
P1352042
LOCK ASSY
LOCK ASSEMBLY - upper access cover, Includes: Ref. 4 & 5
1шт.
4
P152083
LOCK, CYLINDER
CYLINDER - lock
1шт.
P1352009
KEY
- lock
2шт.
5
P2340499
DOOR COVER
PROTECTOR - cylinder
1шт.
6
P35466
RIVET
RETAINER - bolt, sleeve type
8шт.
7
P433853
SCREW
BOLT - hex, 5 mm x 20 mm
8шт.
8
P32621
SCREW
BOLT - hex, 6 mm x 16 mm
4шт.
9
P3528799
WASHER
SPACER - bolt, 4 mm thick
4шт.
10
P2531358
CABLE
- upper access cover
1шт.
11
P133884
SCREW
BOLT - hex, 8 mm x 35 mm
2шт.
12
P35422
RIVET
RETAINER - bolt, sleeve type
3шт.
13
P3528794
WASHER
SPACER - bolt, 6 mm thick
1шт.
14
P1352041
HANDLE
- cover lift
1шт.
16
P3528794
WASHER
SPACER - bolt, 6 mm thick
2шт.
17
P4241443
FOAM
PAD - insulation, access cover, center
1шт.
18
P4241442
FOAM
PAD - insulation, access cover, right-hand
1шт.
19
P4241449
FOAM
PAD - insulation, access cover, front right-hand
1шт.
20
P4241450
FOAM
PAD - insulation, access cover, front left-hand
1шт.
21
P3036998
CLIP,ELECTRICAL
RETAINER -, Serial Range: pad-cover
10шт.
22
P933816
SCREW
BOLT - hex, 10 mm x 95 mm
2шт.
23
P3528795
WASHER
SPACER - bolt, 7 mm thick
12шт.
24
P34598
SAFETY NUT
NUT - hex, self-locking, 10 mm
10шт.
25
P933818
SCREW
BOLT - hex, 10 mm x 40 mm
4шт.
26
P1831625
ANGLE
BRACKET - mounting, access cover
2шт.
27
P32465
SCREW
- hex socket, 10 mm x 25 mm
2шт.
28
P134596
SAFETY NUT
NUT - hex, self-locking, 10 mm
2шт.
29
REF
INSTRUCTION
SEAL - cover, 25-1/2" long, cut from P1303155
2шт.
30
REF
INSTRUCTION
SEAL - cover, 5-3/8" long, cut from P1303155
2шт.
31
P35474
RIVET
RETAINER - bolt, sleeve type
3шт.
Выбрано товаров: 33
