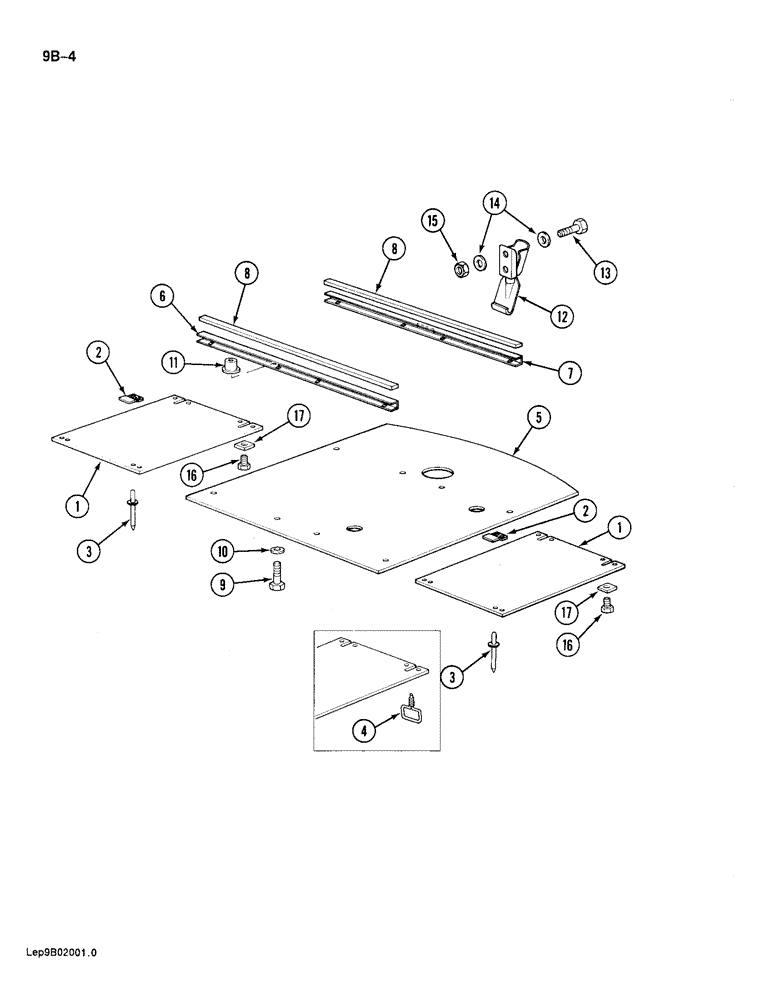

Запчасти Case 688 (9B-04) - ENGINE LOWER ACCESS COVERS (09) - CHASSIS

P7043888

PANEL

COVER ASSEMBLY - engine lower access, side, Includes: Ref. 1 - 3, Serial Range: 11601-11708

2шт.

1

NSS

NOT SOLD SEPARAT

COVER - engine lower access, side

1шт.

2

P2826165

CLIP,ELECTRICAL

CLIP - retainer, access cover

2шт.

3

P35446

RIVET

POP RIVET - 8 mm x 24 mm, Serial Range: clip-cover

4шт.

P8643839

PANEL

COVER ASSEMBLY - engine lower access, side, Includes: Ref. 1 - 3, Start Serial: 11709

2шт.

1

NSS

NOT SOLD SEPARAT

COVER - engine lower access, side

1шт.

2

P2826165

CLIP,ELECTRICAL

CLIP - retainer, access cover

2шт.

3

P35446

RIVET

POP RIVET - 8 mm x 24 mm, Serial Range: clip-cover

4шт.

4

P852091

HANDLE

AND SPRING ASSEMBLY - cover retaining, Serial Range: 11601-11708

4шт.

P7043832

PANEL

COVER ASSEMBLY - engine lower access, center, Includes: Ref. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

COVER - engine lower, access, center

1шт.

6

P2125771

BRACKET

STIFFENER - cover, front

1шт.

7

P2125770

BRACKET

STIFFENER - cover, center

1шт.

8

REF

INSTRUCTION

SEAL - access cover, 39-1/4" long, cut from Z3127, fasten with P3578 cement

2шт.

9

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

BOLT, Hex, M8 x 25, 8.8

8шт.

10

P35020

WASHER

- flat, L58 mm

8шт.

11

P234587

NUT

RETAINER - bolt, sleeve type

8шт.

12

P3036932

HOOK

LATCH ASSEMBLY - retainer, center cover

1шт.

13

P433853

SCREW

BOLT - hex, 5 mm x 20 mm

2шт.

14

P4328718

WASHER

SPACER - bolt, 3,5 m thick

4шт.

15

P834574

SAFETY NUT

NUT - hex, self-locking, 5 mm

2шт.

16

P733029

SCREW

BOLT - hex, 8 mm x 30 mm, full threaded, Start Serial: 11709

4шт.

17

P1523469

PLATE

RETAINER - cover, Start Serial: 11709

4шт.
