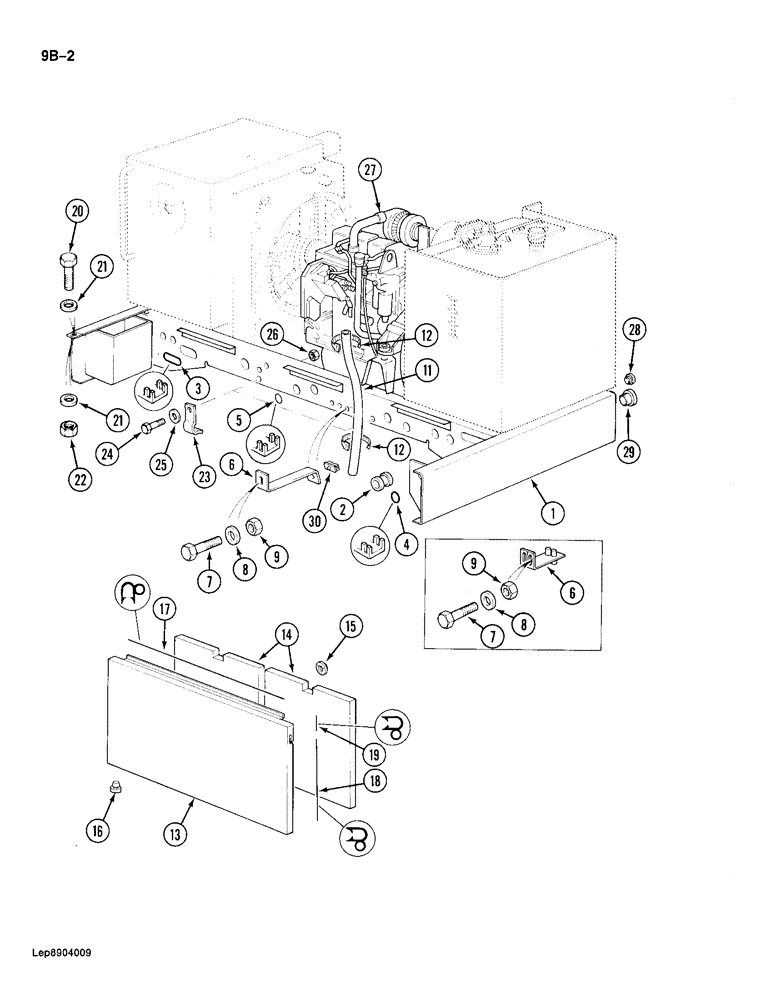

Запчасти Case 688 (9B-02) - ENGINE FRAME AND ACCESS COVERS (09) - CHASSIS

1

P1054976

CHASSIS

FRAME - engine and hydraulic reservoir mounting, Serial Range: 11601-XXXXX

1шт.

1

P2054938

CHASSIS

FRAME - engine and hydraulic reservoir mounting, Start Serial: XXXXX

1шт.

2

P41478

GROMMET

- frame, electrical harness

5шт.

3

REF

INSTRUCTION

PROTECTOR - edge, frame, 7-3/4" long, cut from P1303158

2шт.

4

REF

INSTRUCTION

PROTECTOR - edge, frame, 8-1/8" long, cut from P1303161

1шт.

5

REF

INSTRUCTION

PROTECTOR - edge, frame, 4-1/4" long, cut from P1303158

2шт.

6

P7128222

SUPPORT

- hose, engine breather, Serial Range: 11601-XXXXX

1шт.

6

P3226184

SUPPORT

- hose, engine breather, Start Serial: XXXXX

1шт.

7

P933890

SCREW

BOLT - hex, 10 mm x 30 mm

2шт.

8

P3528795

WASHER

SPACER - bolt, 7 mm thick, Serial Range: 11601-XXXXX

2шт.

8

P35003

WASHER

SPACER - flat, M10 N, Start Serial: XXXXX

2шт.

9

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

2шт.

10

P36998

COLLAR CLAMP

CLAMP - breather hose

3шт.

11

REF

INSTRUCTION

HOSE - 17-3/4" long, engine breather, cut from P31901, Serial Range: 11601-XXXXX

1шт.

11

REF

INSTRUCTION

HOSE - 19-3/4" long, engine breather, cut from P31901, Start Serial: XXXXX

1шт.

12

P51946

CLAMP

TIE STRAP - hose, 10-1/8" long

1шт.

13

P8143847

COWL

COVER - engine front

1шт.

14

P4241444

FOAM

PAD - insulation, engine cover

2шт.

15

P3036998

CLIP,ELECTRICAL

RETAINER -, Serial Range: pad-cover

10шт.

16

P41467

STOP

PLUG - cover, rubber

4шт.

17

REF

INSTRUCTION

SEAL - cover, 47-1/2" long, cut from P1303155

1шт.

18

REF

INSTRUCTION

SEAL - cover, 19-1/2" long, cut from P1303155

2шт.

19

REF

INSTRUCTION

SEAL - cover, 2-1/2" long, cut from P1303155

2шт.

20

P33866

SCREW

BOLT - hex head, M20 x 75

1шт.

21

P4328747

WASHER

SPACER - bolt, 14 mm thick

2шт.

22

P134564

SAFETY NUT

NUT - hex, self-locking, 20 mm

1шт.

23

P926460

SUPPORT

BRACKET - support, center lower access cover

2шт.

24

P933818

SCREW

BOLT - hex, 10 mm x 40

2шт.

25

P3528795

WASHER

SPACER - bolt, 7 mm thick

4шт.

26

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

2шт.

27

A174288

ENGINE ASSEMBLY

- excavator, see Figures 2-24 thru 2-52 and 3-8 thru 3-14, (Replaces A174251)

1шт.

28

P3237454

PLASTIC PLUG

PLUG - plastic, at frame, small

1шт.

29

P3037441

PLASTIC PLUG

PLUG - plastic, at frame, large

2шт.

30

P3036926

BASE

RETAINER - hose strap

1шт.
