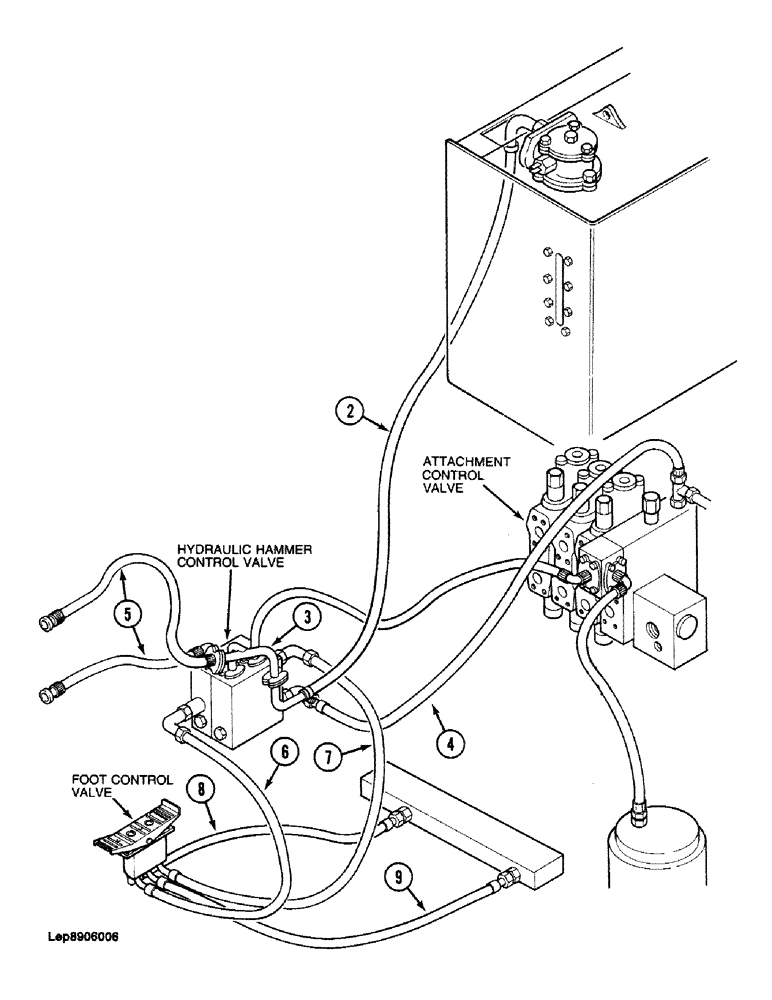

Запчасти Case 688 (1-20) - PICTORIAL INDEX, HYDRAULIC HAMMER CIRCUIT (00) - PICTORIAL INDEX

1

Hose, Pressure, Attachment Control Valve Block to Hydraulic Hammer Control Valve, Page 8E-3, 8E-5

1шт.

2

Hose, Return, Hydraulic Hammer Control Valve to Hydraulic Reservoir, Page 8E-3, 8E-5

1шт.

3

Manifold, Hydraulic Hammer Valve, Page 8E-3, 8E-5

1шт.

4

Hose, Control Circuit, Hydraulic Hammer Valve to Attachment Control Valve, Page 8E-7

1шт.

5

Hoses, Hydraulic Hammer Valve to Attachment Tubes, Page 8E-3, 8E-5

1шт.

6

Hoses, Control Circuit, Hydraulic Hammer Valve to Foot Control Valve, Page 8E-7

1шт.

7

Hose, Control Circuit, Hydraulic Hammer Valve to Foot Control Valve, Page 8E-7

1шт.

8

Hose, Control Circuit, Foot Control Valve to Manifold, Page 8E-7

1шт.

9

Hose, Control Circuit Foot Control Valve to Manifold, Page 8E-7

1шт.
