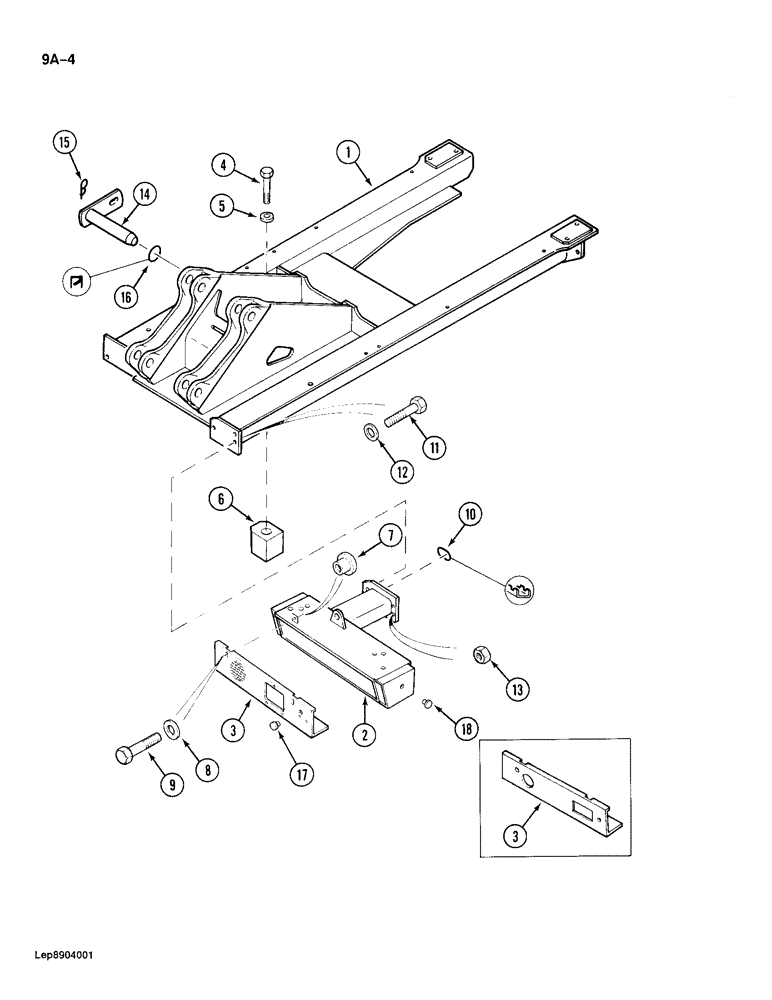

Запчасти Case 688 (9A-4) - TURNTABLE (09) - CHASSIS

1

P1054965

FRAME

TURNTABLE - excavator

1шт.

2

P7128270

BEAM

SUPPORT - cab, front

1шт.

3

P7128240

HOOD

PANEL - mounting, horn and lamp, Serial Range: 11601-XXXXX

1шт.

3

P7828212

SUPPORT

PANEL - mounting, horn and lamp, Start Serial: XXXXX

1шт.

4

P1133883

SCREW

BOLT - hex, 20 mm x 75 mm, grade 10.9 (Replaces P33866)

1шт.

5

P4328747

WASHER

SPACER - bolt, 14 mm thick

1шт.

6

P5120361

RETAINER

- bolt (Replaces P729796)

1шт.

7

P35419

RIVET

NUT - cage type, 10 mm

4шт.

8

P3528795

WASHER

SPACER - bolt, 7 mm thick

4шт.

9

P933890

SCREW

BOLT - hex, 10 mm x 30 mm, full thread

4шт.

10

REF

INSTRUCTION

GUARD - electrical harness through front cab support, 4-1/8 inch long, cut from P1303161

1шт.

11

P133835

SCREW

BOLT - hex, 20 mm x 100 mm

3шт.

12

P4328747

WASHER

SPACER - bolt, 14 mm thick

6шт.

13

P134564

SAFETY NUT

NUT - hex, self-locking, 20 mm

3шт.

14

P50388

HEADED PIN

PIN - mounting, boom and, Serial Range: cylinder-turntable

4шт.

15

P36020

SPLIT PIN/SAFETY PIN

HAIR PIN - split, lock pin

4шт.

16

P151309

SEAL

- mounting pin

8шт.

17

P3037441

PLASTIC PLUG

PLUG - plastic, panel, at front

1шт.

18

P3237454

PLASTIC PLUG

PLUG - plastic, support, at side

1шт.
