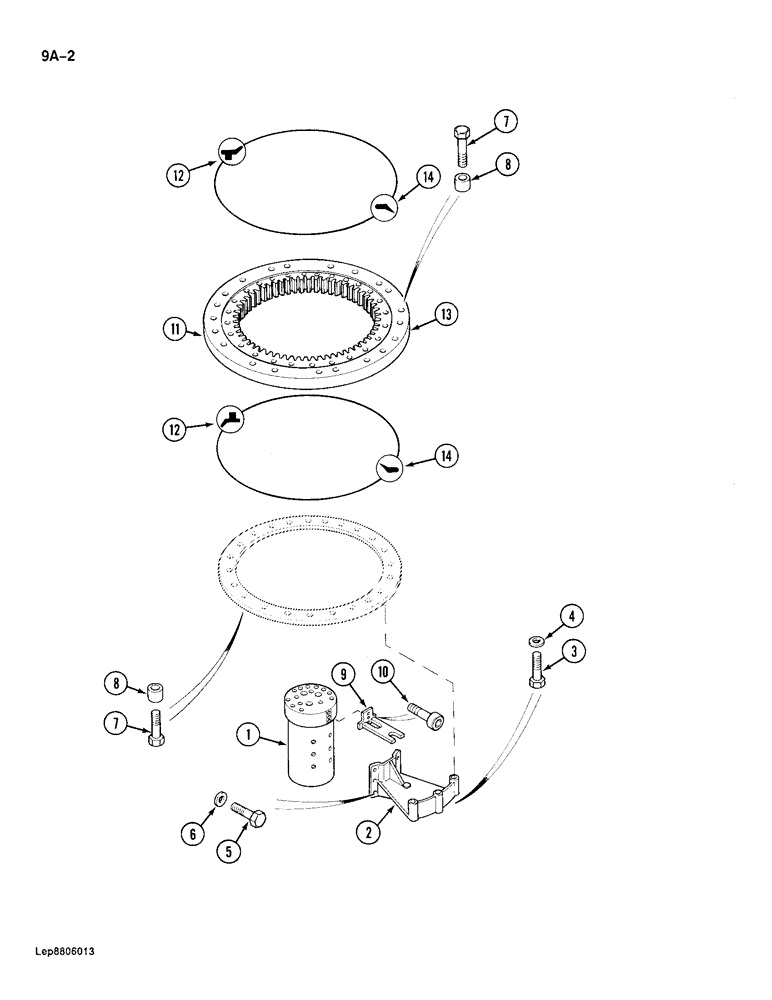

Запчасти Case 688 (9A-2) - TURNTABLE BEARING (09) - CHASSIS

1

REF

INSTRUCTION

SWIVEL ASSEMBLY - hydraulic, see Figure 8C-18

1шт.

2

P2346173

SUPPORT

BRACKET - mounting, swivel, cast type

1шт.

3

P1633872

SCREW

BOLT - hex, 20 mm x 150, grade 10.9

3шт.

4

P5428789

WASHER

SPACER - bolt, 7 mm thick

3шт.

5

P933819

SCREW

BOLT - hex, 12 mm x 55

6шт.

6

P4328731

WASHER

SPACER - bolt, 24 mm thick

6шт.

7

P1633877

SCREW

BOLT - hex, 20 mm x 100, grade 10.9

43шт.

8

P4528718

WASHER

SPACER - bolt, 40 mm thick

43шт.

9

P7428222

STOP LOCK

BRACKET - swivel lock

1шт.

See Figure 9A-4 for bolt to turntable.

1шт.

10

P1232971

SCREW

BOLT - hex, 12 mm x 30

3шт.

P2239913

SLEWING RING

BEARING ASSEMBLY - turntable, if used (Replaces P739983), Includes: Ref. 11 & 12

1шт.

11

NSS

NOT SOLD SEPARAT

BEARING - turntable

1шт.

12

P8046009

SEAL

- turntable bearing, cut to length as needed and use P1003576 adhesive on ends, if used

2шт.

P2239913

SLEWING RING

BEARING - turntable (Replaces P739983), Includes: Ref. 13 & 14

1шт.

13

NSS

NOT SOLD SEPARAT

BEARING - turntable

1шт.

14

SEAL - turntable bearing, cut to length as needed and use P1003576 adhesive on ends, if used

2шт.

Ref #14 - P9646025 nd P9346071 Seals to be adopted

1шт.
