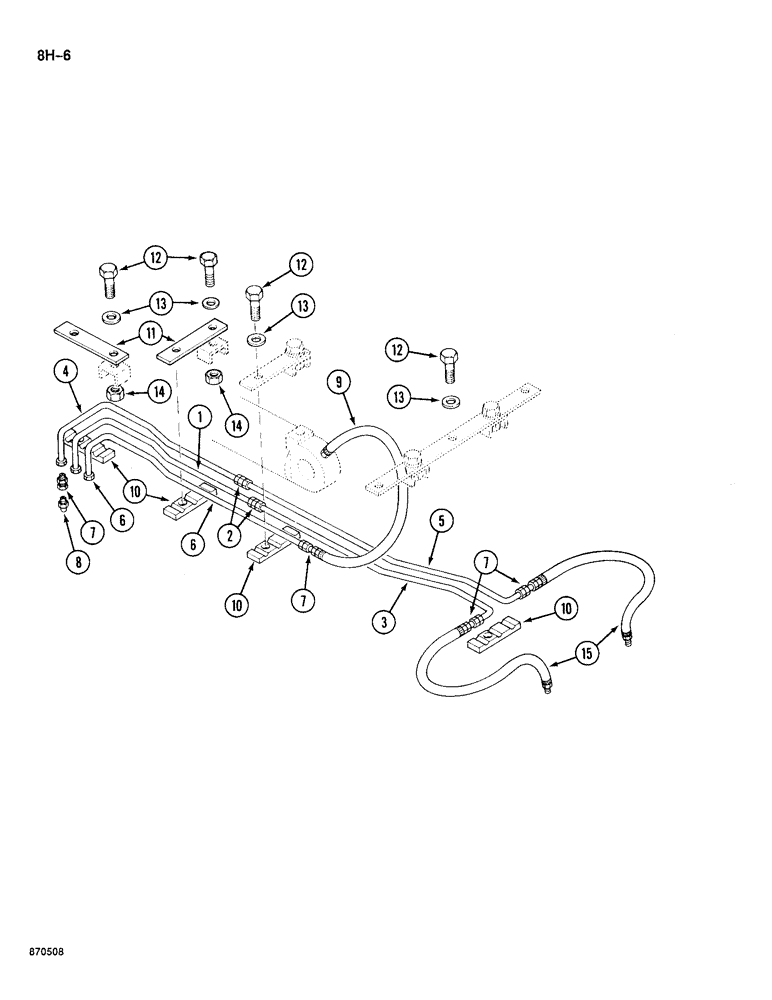

Запчасти Case 688 (8H-6) - CYLINDER LUBRICATION LINES, TUBES AT BOOM (08) - HYDRAULICS

1

P6249145

PIPE

TUBE - lubrication, rod end of left-hand boom cylinder, front section

1шт.

2

P3237534

UNION

ADAPTER - straight

2шт.

3

P6449088

PIPE

TUBE - lubrication, rod end of left-hand boom cylinder, rear section

1шт.

4

P6249147

PIPE

TUBE - lubrication, rod end of right-hand boom cylinder, front section

1шт.

5

P6449087

PIPE

TUBE - lubrication, rod end of right-hand boom cylinder, rear section

1шт.

6

P6549105

PIPE

TUBE - lubrication, base end of arm cylinder

1шт.

7

P3237597

FITTING

ADAPTER - lubrication tube to grease fittings and hoses

6шт.

8

933781R1

LUBE NIPPLE,M10 x 1

NIPPLE, LUBE, M10 x 1

3шт.

9

P31983

HOSE

- 19-11/16" long, tubes to arm cylinders

1шт.

10

P4620363

SHIN

CLAMP - tube, for three tubes

4шт.

11

P3723103

SUPPORT

BRACKET - mounting, tube clamp (Replaces P3523101)

2шт.

12

P933839

SCREW

BOLT - hex, 10 mm x 35 mm

6шт.

13

P3528795

WASHER

SPACER - bolt, 7 mm thick

6шт.

14

86500689

NUT,M10 x 1.5, Cl 10

2шт.

15

P5931961

HOSE

- 27-1/2" long, tubes to boom cylinder

2шт.
