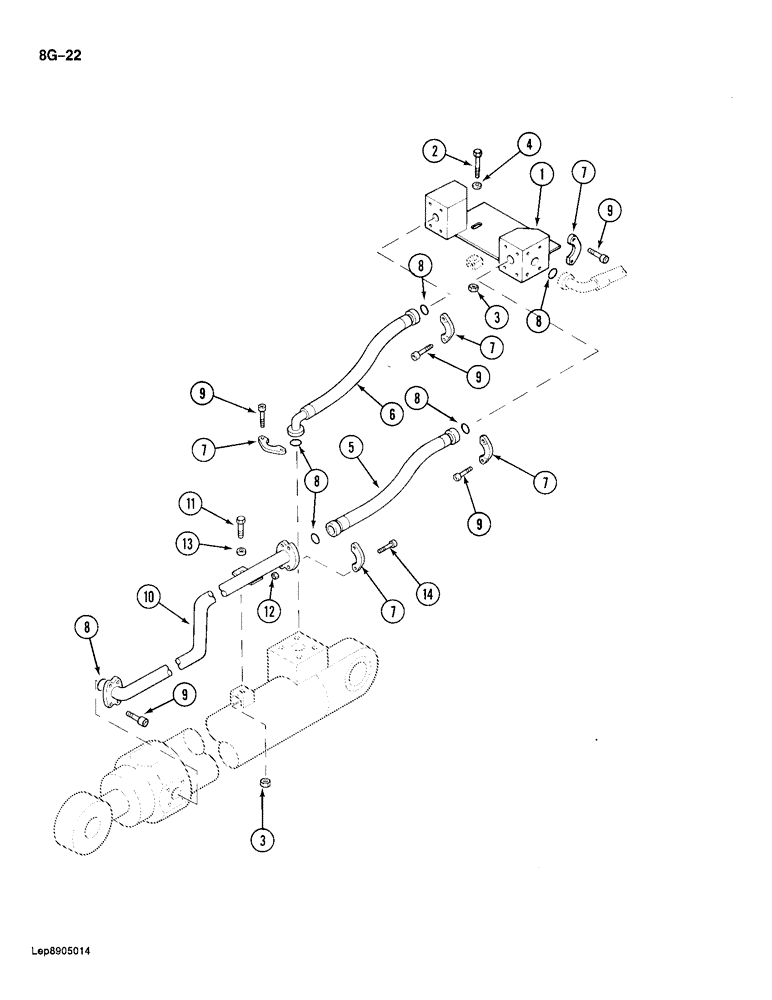

Запчасти Case 688 (8G-22) - TOOL CYLINDER CIRCUIT, TUBES AT ARM (08) - HYDRAULICS

1

P5328271

ELEC SUPPORT PLATE

BLOCK - manifold, hose flange

1шт.

2

P933839

SCREW

BOLT - hex, 10 mm x 35 mm

2шт.

3

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

2шт.

4

P4328796

WASHER

SPACER - bolt, 7 mm thick

2шт.

5

P5431993

HOSE

- 31-1/2" long, to rod end of arm cylinder

1шт.

6

P5931991

HOSE

- 24-13/16" long, to base end of arm cylinder

1шт.

7

P4024266

CLAMP

SPLIT FLANGE - hose flange

8шт.

8

P1130483

O-RING

- tube and hose flange

4шт.

9

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

16шт.

10

P8747632

PIPE

TUBE - to rod end point at cylinder

1шт.

11

P933839

SCREW

BOLT - hex, 10 mm x 35 mm, full thread

1шт.

12

86500689

NUT,M10 x 1.5, Cl 10

4шт.

13

P3528795

WASHER

SPACER - bolt, 7 mm thick

1шт.

14

P32937

SCREW

BOLT - hex socket, 10 mm x 50 mm

4шт.
