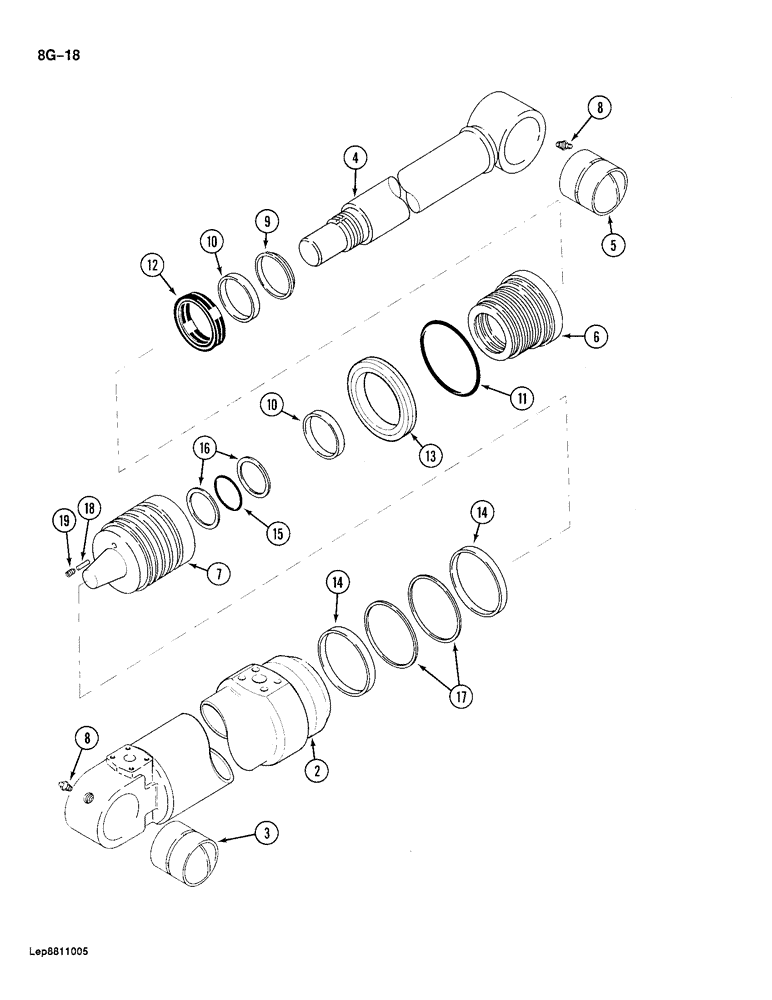

Запчасти Case 688 (8G-18) - ARM CYLINDER (08) - HYDRAULICS

P7946725

CYLINDER ASSY.

CYLINDER ASSEMBLY - arm, Includes: Ref. 2 - 19

1шт.

P1952478

JACK BODY

TUBE ASSEMBLY - cylinder, Includes: Ref. 2 & 3

1шт.

2

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

3

P1528673

BUSHING

- tube

1шт.

P8849403

PISTON ROD

ROD ASSEMBLY - piston, to letter I identification, Includes: Ref. 4 & 5

1шт.

4

NSS

NOT SOLD SEPARAT

ROD - piston

1шт.

5

P1528673

BUSHING

- piston rod

1шт.

P8849461

PISTON ROD

ROD ASSEMBLY - piston, from letter J identification and after, Includes: Ref. 4 & 5

1шт.

4

NSS

NOT SOLD SEPARAT

ROD - piston

1шт.

5

P1528673

BUSHING

- piston rod

1шт.

6

P4129189

CYLINDER END CAP

GLAND - cylinder

1шт.

7

P1829960

PISTON

- cylinder, to letter I identification

1шт.

7

P1829980

JACK PISTON

PISTON - cylinder, from letter J identification and after

1шт.

8

933781R1

LUBE NIPPLE,M10 x 1

NIPPLE, LUBE, M10 x 1

2шт.

P5649656

SEAL PACKAGE

KIT - seal, Includes: Ref. 9 - 19

1шт.

9

P146064

WIPER SEAL

WIPER - piston rod

1шт.

10

P2045250

BAND

RING - wear

2шт.

11

P1830402

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

- gland, large

1шт.

12

P1551252

SEAL

U-CUP SEAL - piston rod

1шт.

13

P2030486

SEAL

- gland

1шт.

14

P1845281

BAND

RING - wear

2шт.

15

P2030484

SEAL,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

O-RING - piston rod

1шт.

16

P9046019

BACK-UP RING

BACKUP RING - piston rod O-ring

2шт.

17

P1451233

SPECIAL MAT. SEAL

SEAL - piston

2шт.

18

P827736

PIN

- locking

1шт.

19

P1432951

SCREW

SET SCREW - pin

1шт.
