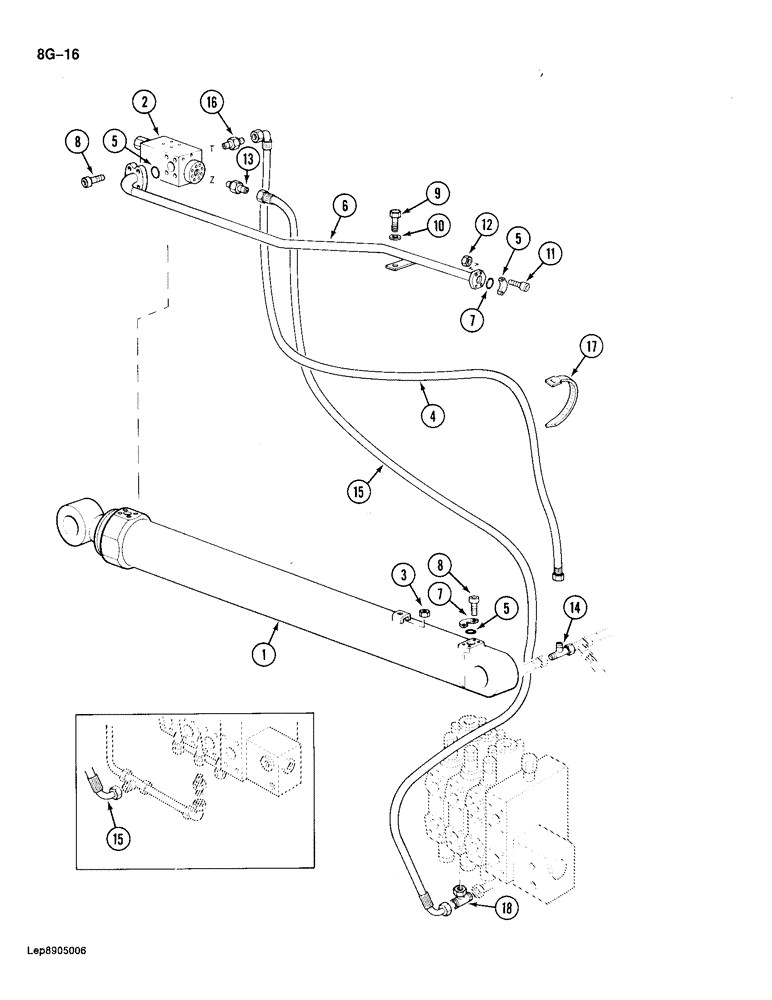

Запчасти Case 688 (8G-16) - ARM CYLINDER CIRCUIT, WITH LOAD HOLDING VALVE (08) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - arm, see Figure 8G-18

1шт.

2

REF

INSTRUCTION

VALVE ASSEMBLY - load housing, see Figure 58G-20

1шт.

3

P34598

SAFETY NUT

NUT - hex self-locking, 10 mm

1шт.

4

P7331935

HOSE

- 236-1/4" long, return, Serial Range: valve-tee

1шт.

5

P1130483

O-RING

- tube and hoses flange

3шт.

6

P8747631

PIPE

TUBE - to rod end of arm cylinder

1шт.

7

P4024266

CLAMP

SPLIT FLANGE - tube and hose flange

4шт.

8

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

8шт.

9

P1133839

SCREW

BOLT - hex, 10 mm x 35 mm, full thread

1шт.

10

P3528795

WASHER

SPACER - bolt, 7 mm thick

1шт.

11

P32937

SCREW

BOLT - hex socket, 10 mm x 50 mm

4шт.

12

86500689

NUT,M10 x 1.5, Cl 10

4шт.

13

P3237581

UNION

ADAPTER - straight

1шт.

P7046042

SEAL

- adapter

1шт.

14

P937277

TEE

- street

1шт.

15

P7331934

HOSE

- 236-1/4" long, control circuit

1шт.

16

P3237533

UNION

ADAPTER - straight

1шт.

P1145268

SEAL

- adapter

1шт.

17

P51946

CLAMP

TIE STRAP - hose, 10-1/8" long

1шт.

18

P937293

TEE

- street, Start Serial: 10745

1шт.
