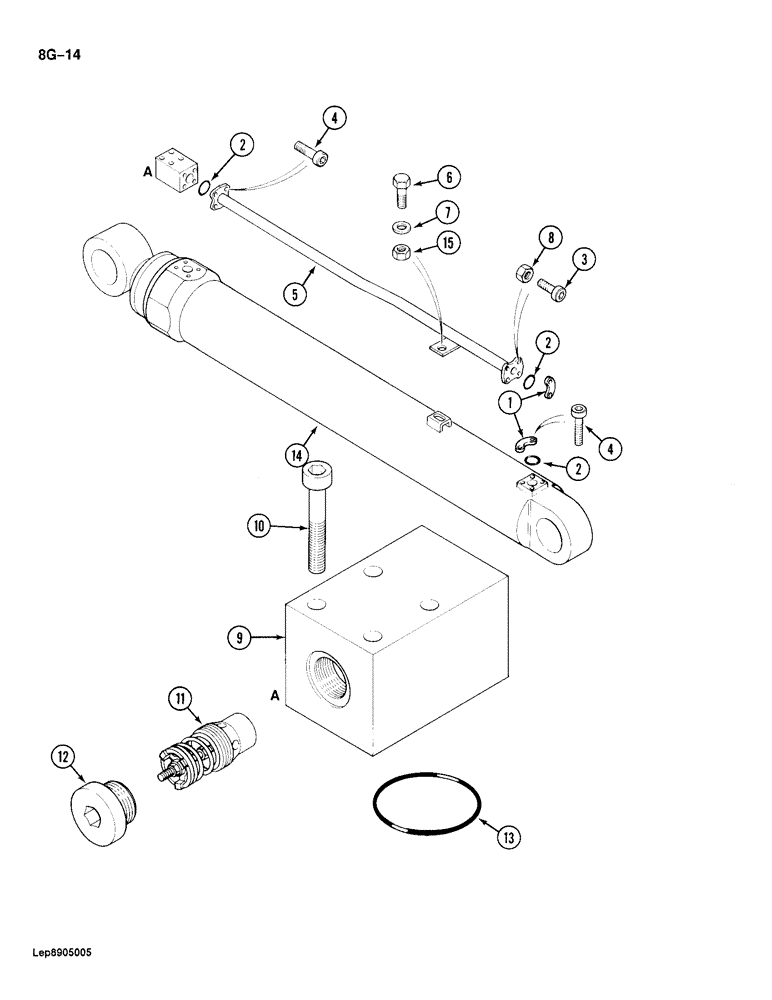

Запчасти Case 688 (8G-14) - ARM CYLINDER CIRCUIT, TUBES AT CYLINDER (08) - HYDRAULICS

1

P4024266

CLAMP

SPLIT FLANGE - hose flange

4шт.

2

P1130483

O-RING

- tube and hose flange

3шт.

3

P32937

SCREW

BOLT - hex socket, 10 mm x 50 mm

4шт.

4

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

8шт.

5

P8747634

PIPE

TUBE - to rod end of arm cylinder

1шт.

6

P933839

SCREW

BOLT - hex, 10 mm x 35 mm

1шт.

7

P3528795

WASHER

SPACER - bolt, 7 mm thick

1шт.

8

86500689

NUT,M10 x 1.5, Cl 10

4шт.

P4343389

SHIN

BLOCK ASSEMBLY - restrictor, Includes: Ref. 9 - 13

1шт.

9

NSS

NOT SOLD SEPARAT

BLOCK - restrictor

1шт.

10

P632925

SCREW

BOLT - hex socket, 10 mm x 70 mm

4шт.

11

P4343387

LIMITER, TRAVEL

RESTRICTOR ASSEMBLY - hydraulic

1шт.

12

P2537429

PLUG

- restrictor block

1шт.

P5746063

SEAL

- plug

1шт.

13

P1130483

O-RING

- block

1шт.

14

REF

INSTRUCTION

CYLINDER ASSEMBLY - arm, see Figure 8G-18

1шт.

15

P1634563

SAFETY NUT

NUT - hex, 10 mm

1шт.
