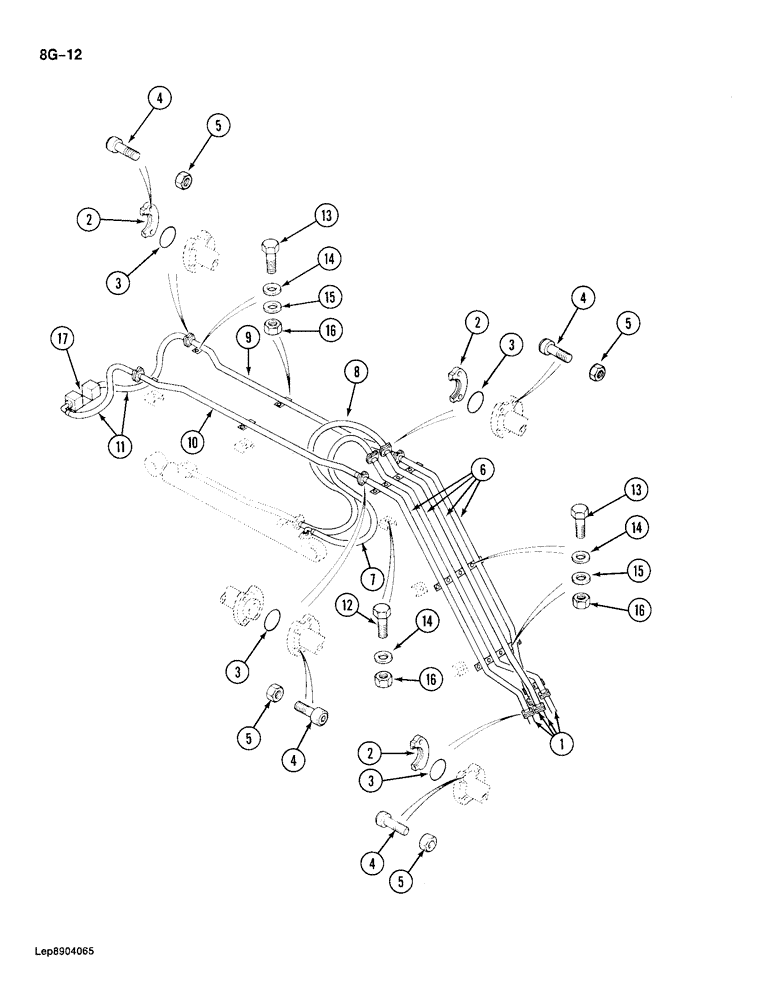

Запчасти Case 688 (8G-12) - ARM AND TOOL CYLINDER CIRCUIT, TUBES AT BOOM (08) - HYDRAULICS

1

REF

INSTRUCTION

HOSE - from arm and tool sections of attachment control valve, see Figures 8C-2 and 8C-4

1шт.

2

P4024266

CLAMP

SPLIT FLANGE - hose flange

16шт.

3

P1130483

O-RING

- hose flange

10шт.

4

P32937

SCREW

BOLT - hex socket, 10 mm x 50 mm

40шт.

5

86500689

NUT,M10 x 1.5, Cl 10

40шт.

6

P3950180

PIPE ASSY.

TUBE ASSEMBLY - to arm and tool cylinders

1шт.

7

P5431935

HOSE

- 31-1/2" long, to base end of arm cylinder

1шт.

8

P5931952

HOSE

- 39-3/8" long, to rod end of arm cylinder

1шт.

9

P7349145

PIPE

TUBE - right-hand side of arm, to tool cylinder

1шт.

10

P7349146

PIPE

TUBE - left-hand side of arm, to tool cylinder

1шт.

11

P5431998

HOSE

- 49-3/16" long, to tool attachment block

2шт.

12

P933839

SCREW

BOLT - hex, 10 mm x 35 mm

8шт.

13

P1133839

SCREW

BOLT - hex, 10 mm x 45 mm

8шт.

14

P3528795

WASHER

SPACER - bolt, 7 mm thick

16шт.

15

P1245227

WASHER

- flat, 10 mm

8шт.

16

P1634563

SAFETY NUT

NUT - hex, self-locking, 10 mm

12шт.

17

REF

INSTRUCTION

BLOCK - manifold, to tool cylinder, see Figure 8G-22

1шт.
