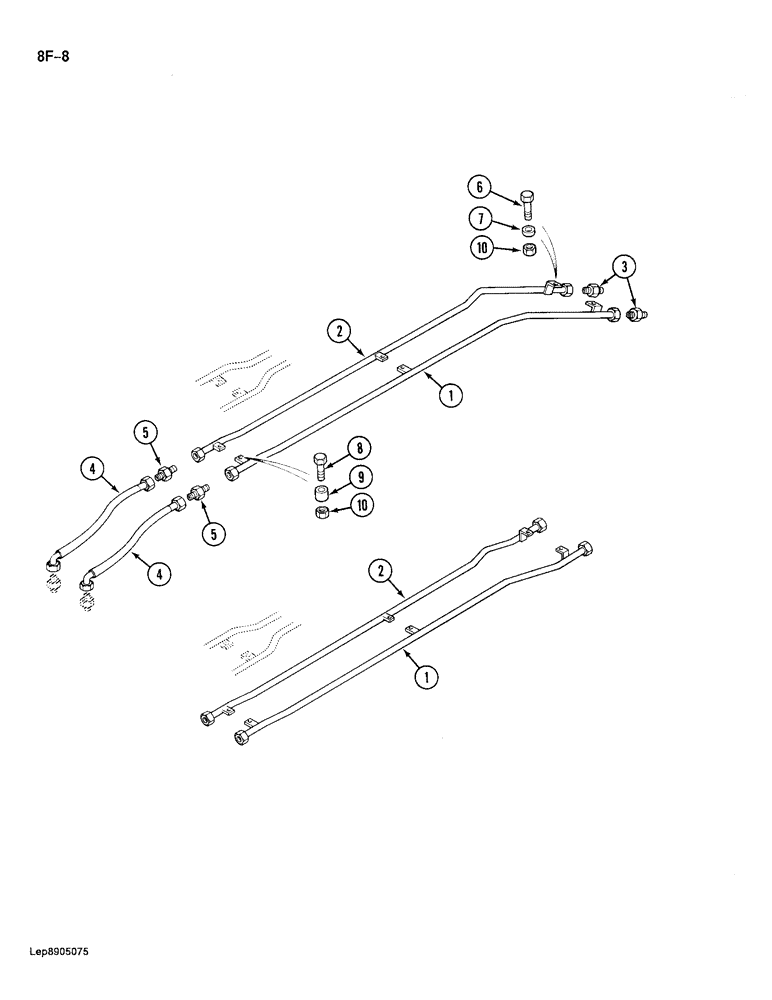

Запчасти Case 688 (8F-08) - HYDRAULIC CIRCUIT FOR OPTIONS - 2.10 M AND 2.65 M ARMS TUBES AT ARM FOR WRIST-O-TWIST/ROTATOR (08) - HYDRAULICS

1

P3550194

PIPE

TUBE - for options, left-hand side of 2.10 m arm

1шт.

1

P3550192

PIPE

TUBE - for options, left-hand side of 2.65 m arm

1шт.

2

P3550193

PIPE

TUBE - for options, right-hand side of 2.10 m arm

1шт.

2

P3550191

PIPE

TUBE - for options, right-hand side of 2.65 m arm

1шт.

3

P3237537

UNION

ADAPTER - straight

2шт.

4

P3731949

HOSE

- 63" long, to optional attachment

2шт.

5

P4037518

UNION

ADAPTER - straight

2шт.

6

P933839

SCREW

BOLT - hex, 10 mm x 35 mm

2шт.

7

P4328796

WASHER

SPACER - bolt, 7 mm thick

2шт.

8

P1133839

SCREW

BOLT - hex, 10 mm x 45 mm

2шт.

9

P4328730

WASHER

SPACER - bolt, 20 mm thick

2шт.

10

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

4шт.
