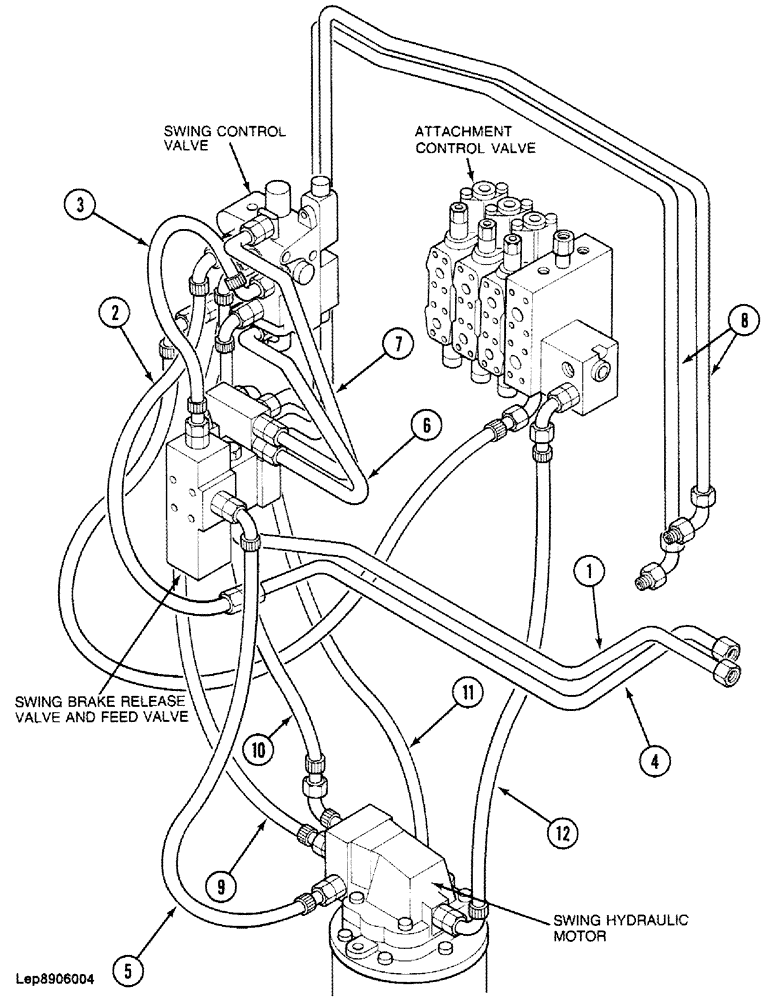

Запчасти Case 688 (1-16) - PICTORIAL INDEX, HYDRAULIC CONTROL CIRCUIT (00) - PICTORIAL INDEX

1

Tube, Pressure, From High Pressure Pump to Swing Control Valve Hose, Page 8C-7, 8C-11

1шт.

2

Hose, Pressure, Tube to Swing Control Valve, Page 8C-7, 8C-11

1шт.

3

Hose, Return, Swing Control Valve to Feed Valve, Page 8C-7, 8C-11

1шт.

4

Tube, Pressure, Swing Brake Release Valve to High Pressure Pump, Page 8C-7, 8C-11

1шт.

5

Hose, Feed Control Valve to Hydraulic Motor, Page 8C-15, 8C-17

1шт.

6

Tube, Swing Control Valve to Brake Release Valve, Page 8C-15, 8C-17

1шт.

7

Tube, Swing Control Valve to Brake Release Valve, Page 8C-15, 8C-17

1шт.

8

Tube, Brake Release Valve to Cab Hydraulic Circuit, see page 1-19 for continuation, Page 8C-15, 8C-17

1шт.

9

Hose, Pressure, Swing Control Valve to Swing Motor, Page 8C-15, 8C-17

1шт.

10

Hose, Pressure, Swing Control Valve to Swing Motor, Page 8C-15, 8C-17

1шт.

11

Hose, Swing Motor, Brake Release, Page 8C-15, 8C-17

1шт.

12

Hose, Return, Swing Hydraulic Motor to Attachment Control Block, Page 8C-15, 8C-17

1шт.
