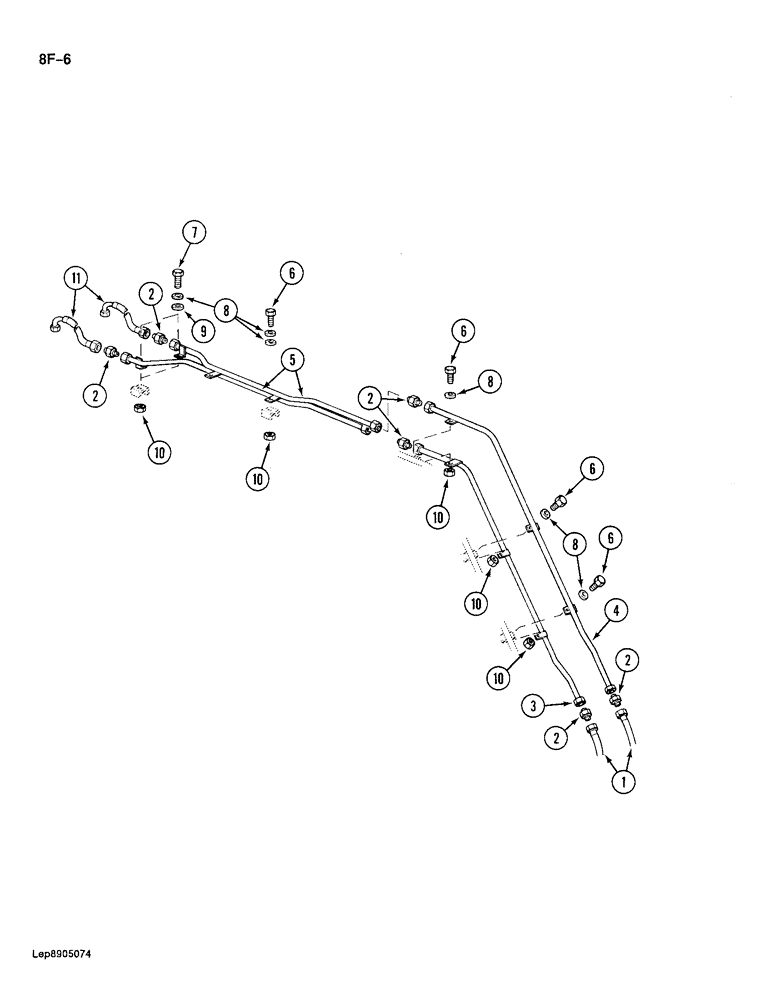

Запчасти Case 688 (8F-06) - HYDRAULIC CIRCUIT FOR OPTIONS, TUBES AT BOOM, FOR WRIST-O-TWIST/ROTATOR (08) - HYDRAULICS

1

REF

INSTRUCTION

HOSE - from option control valve, see Figure 8F-4

2шт.

2

P3237537

UNION

ADAPTER - straight

6шт.

3

P6549030

PIPE

TUBE - from option control valve, left-hand side of boom

1шт.

4

P6549029

PIPE

TUBE - from option control valve, right-hand side of boom

1шт.

5

P3050185

RETURN PIPE

TUBE - from option control valve, at upper side of boom

1шт.

6

P1133839

SCREW

BOLT - hex, 10 mm x 45 mm

4шт.

7

P433814

SCREW

BOLT - hex, 10 mm x 60 mm

2шт.

8

P3528795

WASHER

SPACER - bolt, 7 mm thick

7шт.

9

P1245227

WASHER

- flat, 10 mm

2шт.

10

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

6шт.

11

P5431933

HOSE

- 49-1/4" long, to option tubes at arm, see Figure 8F-8

2шт.
