Запчасти Case 688 (8F-04) - HYDRAULIC CONTROL CIRCUIT, TO OPTION CONTROL VALVE (08) - HYDRAULICS

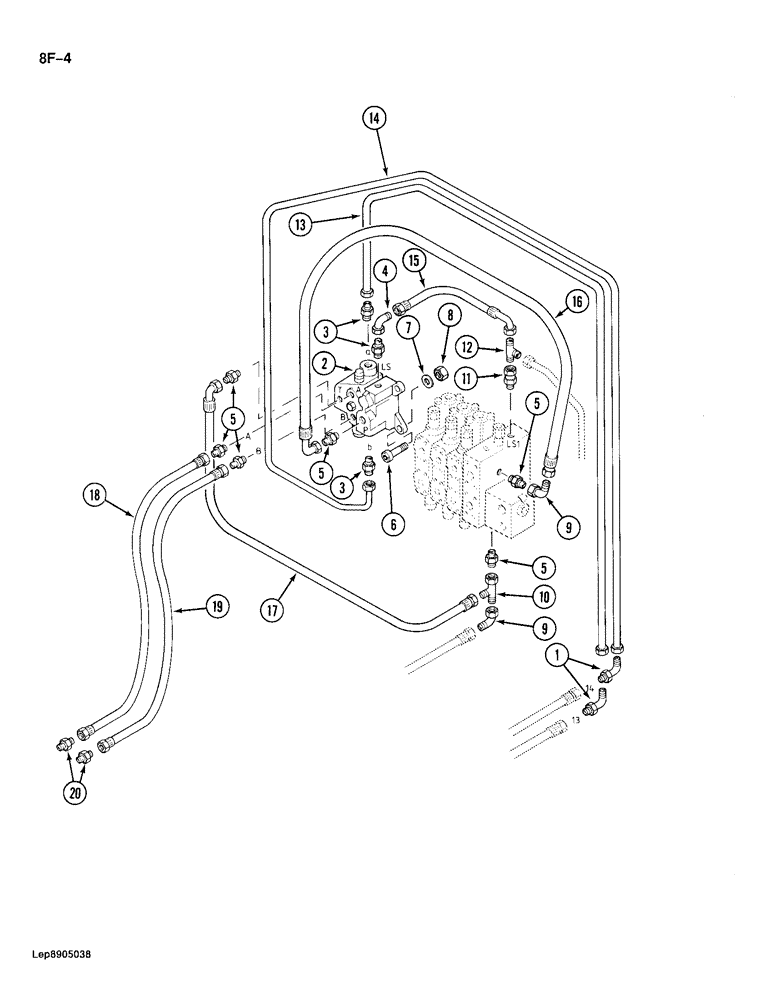

Схема запчастей Case 688 - (8F-04) - HYDRAULIC CONTROL CIRCUIT, TO OPTION CONTROL VALVE (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

P1737008

ANGLE

ELBOW - 90 degree

2шт.

2

REF

INSTRUCTION

VALVE ASSEMBLY - option control, see Figure 8F-10

1шт.

3

P3237530

UNION

ADAPTER - straight

3шт.

P7046042

SEAL

- adapter

1шт.

4

P1737018

ANGLE

ELBOW - 90 degree

1шт.

5

P3237533

UNION

ADAPTER - straight

6шт.

P1145268

SEAL

- adapter

1шт.

6

P32935

SCREW

BOLT - hex socket, 10 mm x 40 mm

4шт.

7

P3528795

WASHER

SPACER - bolt, 7 mm thick

4шт.

8

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

4шт.

9

P1737021

ANGLE

ELBOW - 90 degree

2шт.

10

P937297

TEE

- street

1шт.

11

P3237554

FITTING

ADAPTER - tube long

1шт.

P7046042

SEAL

- adapter, not shown

1шт.

12

P2643351

BLOCK ASSY.

TEE - leak return tube

1шт.

13

P6049062

PIPE

TUBE - control circuit, upper port of control valve

1шт.

14

P6249131

PIPE

TUBE - control circuit, lower port of control valve

1шт.

15

P5431970

HOSE

- 24-13/16" long, leak return to parallel valve section

1шт.

16

P5431930

HOSE

- 31-1/2" long, pressure, to control valve

1шт.

17

P5431963

HOSE

- 24-13/16" long, Serial Range: return-block

1шт.

18

P5431932

HOSE

- 39-3/8" long, valve to attachment (Replaces P5431931)

1шт.

19

P5431932

HOSE

- 49-1/4" long, Serial Range: valve-attachment

1шт.

20

P3237537

UNION

ADAPTER - straight

2шт.

Выбрано товаров: 23
