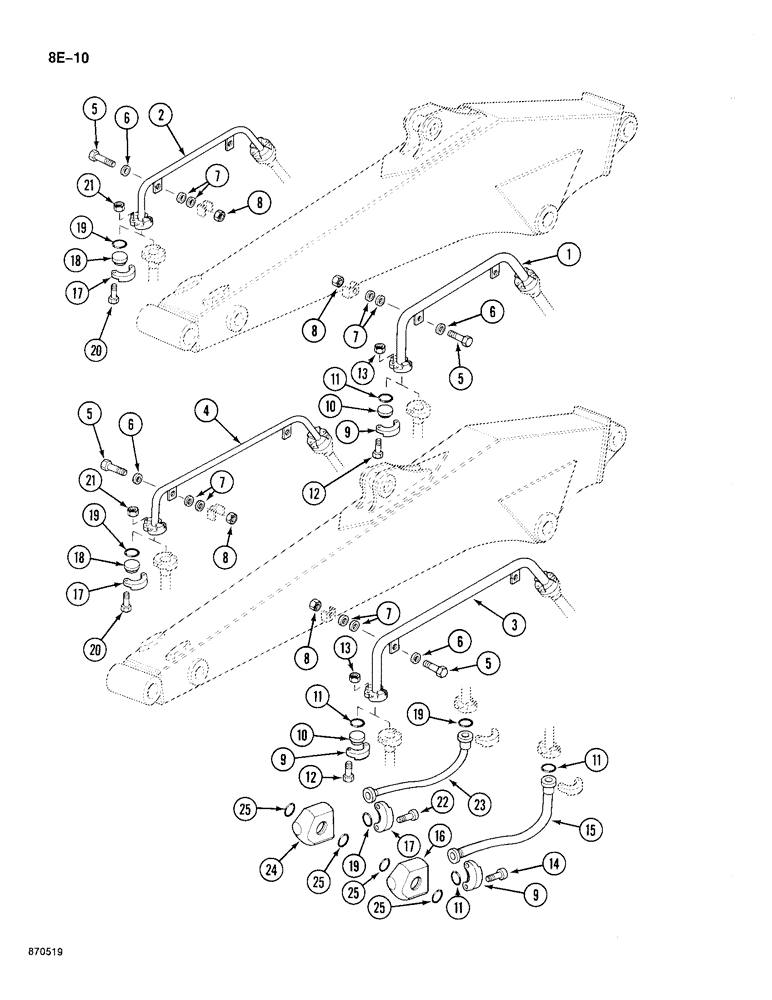

Запчасти Case 688 (8E-10) - HYDRAULIC HAMMER CIRCUIT, TUBES AT ARM (08) - HYDRAULICS

1

P3550136

PIPE

TUBE - left-hand, hydraulic hammer, used with 2.10 m arm

1шт.

2

P3550137

PIPE

TUBE - right-hand, hydraulic hammer, used with 2.10 m arm

1шт.

3

P3550128

PIPE

TUBE - left-hand, hydraulic hammer, used with 2.65 m arm

1шт.

4

P3550129

PIPE

TUBE - right-hand, hydraulic hammer, used with 2.65 m arm

1шт.

5

P1133839

SCREW

BOLT - hex, 10 mm x 45 mm

4шт.

6

P35021

WASHER

SPACER - bolt

4шт.

7

P3528795

WASHER

SPACER - bolt, 7 mm thick

8шт.

8

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

4шт.

9

P4024273

RETAINER

SPLIT FLANGE - hose

4шт.

10

P5327844

BLANK-OFF PLUG

PLUG - tube

1шт.

11

P1230493

O-RING

- hose flange

3шт.

12

P32945

SCREW

BOLT - hex socket, 12 mm x 50 mm

4шт.

13

337475

NUT,M12, Cl 10

Flange bolt M12, Cl 10

4шт.

14

P1332910

SCREW

BOLT - hex socket, 12 mm x 35 mm, grade 10.9

4шт.

15

P6531940

HOSE

- 63" long

1шт.

16

P5137723

FITTING

COUPLING - swivel, hydraulic hammer

1шт.

17

P4024266

CLAMP

SPLIT FLANGE - hose

4шт.

18

P5327832

BLANK-OFF PLUG

PLUG - flange type, PN400DN19

1шт.

19

P1130483

O-RING

- flange

3шт.

20

P32937

SCREW

BOLT - hex socket, 10 mm x 50 mm

4шт.

21

86500689

NUT,M10 x 1.5, Cl 10

Flange bolt M10, Cl 10

4шт.

22

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

23

P6531929

HOSE

- 63" long

1шт.

24

P5137724

FITTING

COUPLING - swivel, hydraulic hammer

1шт.

25

P30336

O-RING

- swivel coupling

4шт.
