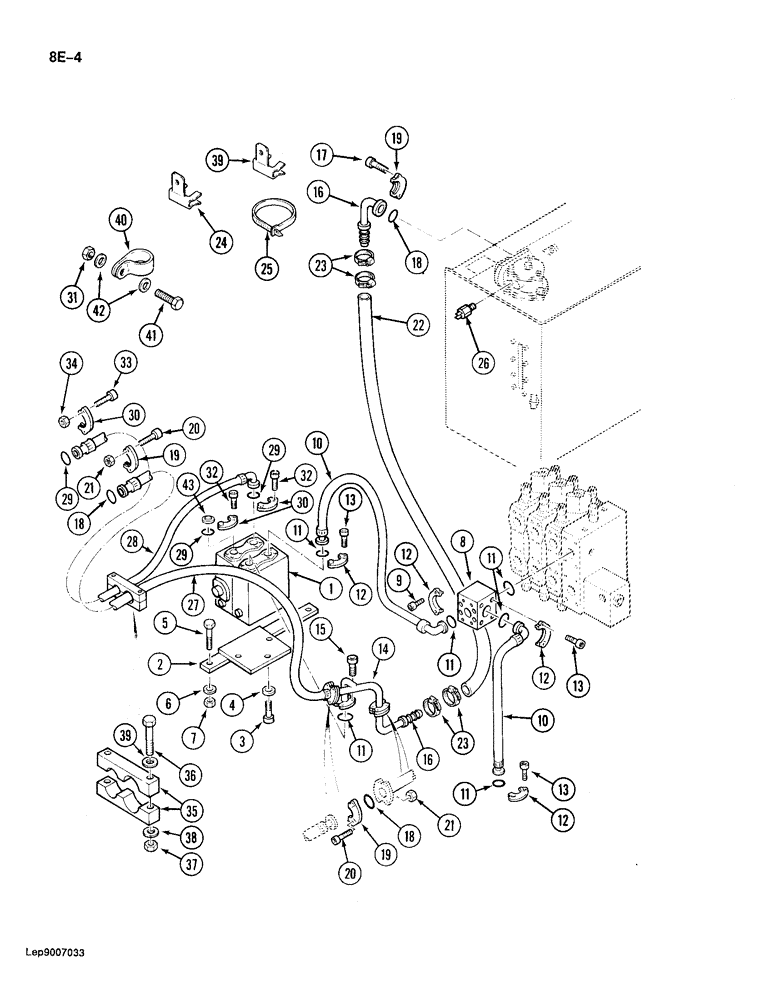

Запчасти Case 688 (8E-04) - HYDRAULIC HAMMER CIRCUIT, PRESSURE AND RETURN LINES, P.I.N. FROM XXXXX AND AFTER (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - hydraulic hammer control, see Figure 8E-14

1шт.

2

P4427118

SUPPORT

PLATE - valve mounting

1шт.

3

P33840

SCREW

BOLT - hex, 12 mm x 30 mm

3шт.

4

P3528793

WASHER

SPACER - bolt, 8 mm thick

3шт.

5

P133804

BOLT,Hex, M20 x 85

- hex, 20 mm x 85 mm

2шт.

6

P3528796

WASHER

SPACER - bolt, 14 mm thick

2шт.

7

P134564

SAFETY NUT

NUT - hex, self-locking, 20 mm

2шт.

8

P1237216

TEE

BLOCK - manifold

1шт.

9

P732993

SCREW

BOLT - hex socket, 12 mm x 120 mm, grade 10.9

4шт.

10

P6731910

HOSE

- 39-3/8" long

2шт.

11

P330421

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

- manifold block

5шт.

12

P4024267

SHIN

SPLIT FLANGE - hose

4шт.

13

P32944

SCREW

BOLT - hex socket, 12 mm x 40 mm

4шт.

14

P3750194

MANIFOLD

- hammer valve

1шт.

15

P32933

SCREW

BOLT - hex socket, 10 mm x 30 mm

4шт.

16

P37141

END FITTING

ADAPTER ASSEMBLY - return hoses, at reservoir and manifold

2шт.

17

P32932

SCREW

BOLT - hex socket, 12 mm x 25 mm

4шт.

18

P1230493

O-RING

- hose flange

3шт.

19

P4024273

RETAINER

SPLIT FLANGE - hose

8шт.

20

P32945

SCREW

BOLT - hex socket, 12 mm x 50 mm

12шт.

21

337475

NUT,M12, Cl 10

12шт.

22

REF

INSTRUCTION

HOSE - 157-3/4" long, cut from P1103645

1шт.

23

P36902

COLLAR CLAMP

CLAMP - hose

4шт.

24

P2036922

DEUTZ PART

CLIP - retainer, 1/8 - 1/4" range

1шт.

25

P136922

CLAMP

TIE STRAP - hose, 13-3/4" long

5шт.

26

P1241892

ELECTRO/HYD CONTACT

SENDER - filter restriction indicator

1шт.

27

P6531974

HOSE

- 78-3/4" long

1шт.

28

P5931901

HOSE

- 78-3/4" long, return, cut from P1103645

1шт.

29

P1130483

O-RING

- hose flange

3шт.

30

P4024266

CLAMP

SPLIT FLANGE - hose

6шт.

31

P234513

SAFETY NUT

NUT - hex, 6 mm

2шт.

32

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

8шт.

33

P32937

SCREW

BOLT - hex socket, 10 mm x 50 mm

4шт.

34

100016

NUT,M10 x 1.5, Cl 8

hex, flange bolt, 10 mm

4шт.

35

P5120335

SHIN

CLAMP - hose, two hoses

2шт.

36

P933808

SCREW

BOLT - hex, 10 mm x 90 mm

2шт.

37

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

2шт.

38

P3528795

WASHER

SPACER - bolt, 7 mm thick

4шт.

39

P1436963

CLASP

CLIP - retainer, 1/2 - 3/4" range

1шт.

40

P1736988

CLAMP

- hose

2шт.

41

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

Hex, M6 x 25, 8.8, Full Thd

2шт.

42

P3528799

WASHER

SPACER - bolt, 4 mm thick

4шт.

43

P5327832

BLANK-OFF PLUG

PLUG - flange type, PN400DN19

1шт.
