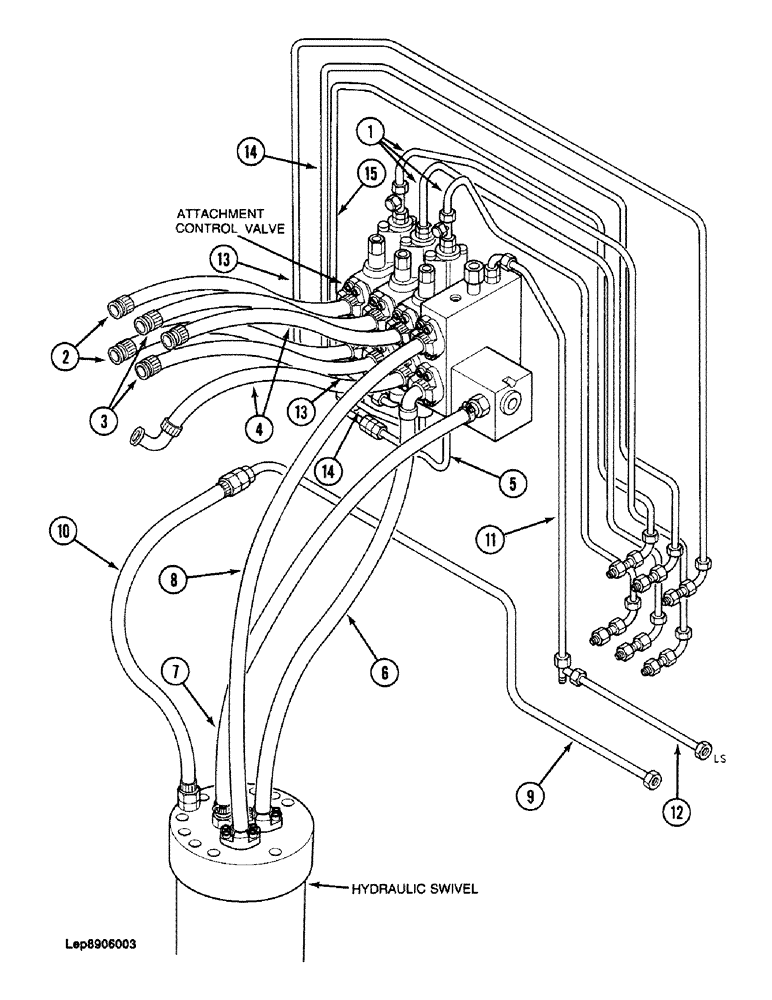

Запчасти Case 688 (1-14) - PICTORIAL INDEX, HYDRAULIC CONTROL CIRCUIT (00) - PICTORIAL INDEX

1

Tube, Control Upper Port of Bucket, Arm, and Boom Section, Page 8C-3, 8C-5

1шт.

2

Hoses, Attachment Control Valve to Arm Tubes on Boom, Page 8C-3, 8C-5

1шт.

3

Hoses, Attachment Control Valve to Bucket Tubes on Boom, Page 8C-3, 8C-5

1шт.

4

Hoses, Attachment Control Valve to Boom Manifold, Page 8C-3, 8C-5

1шт.

5

Tubes, Control Circuit, Boom Lines, Page 8C-3, 8C-5

1шт.

6

Hose, Return, Hydraulic Swivel to Attachment Control Valve, Page 8C-7 - 8C-13

1шт.

7

Hose, Return, Hydraulic Swivel to Attachment Control Block, Page 8C-7 - 8C-13

1шт.

8

Hose, Pressure, Attachment Control Valve to Hydraulic Swivel, Page 8C-7 - 8C-13

1шт.

9

Tube, Leak Return, Undercarriage Circuit, Page 8C-7 - 8C-13

1шт.

10

Hose, Tube to Hydraulic Swivel, Undercarriage Circuit, Page 8C-7 - 8C-13

1шт.

11

Tube, Leak Return, Attachment Circuit, Control Valve to Tee, Page 8C-3, 8C-5

1шт.

12

Tube, Leak Return, Attachment Circuit, Tee to Leak Return Filter, Page 8C-3, 8C-5

1шт.

13

Tubes, Control Circuit, Arm Lines, Page 8C-3, 8C-5

1шт.

14

Tubes, Control Circuit, Bucket Lines, Page 8C-3, 8C-5

1шт.

15

Tubes, Control Circuit, Boom Lines, Page 8C-3, 8C-5

1шт.
