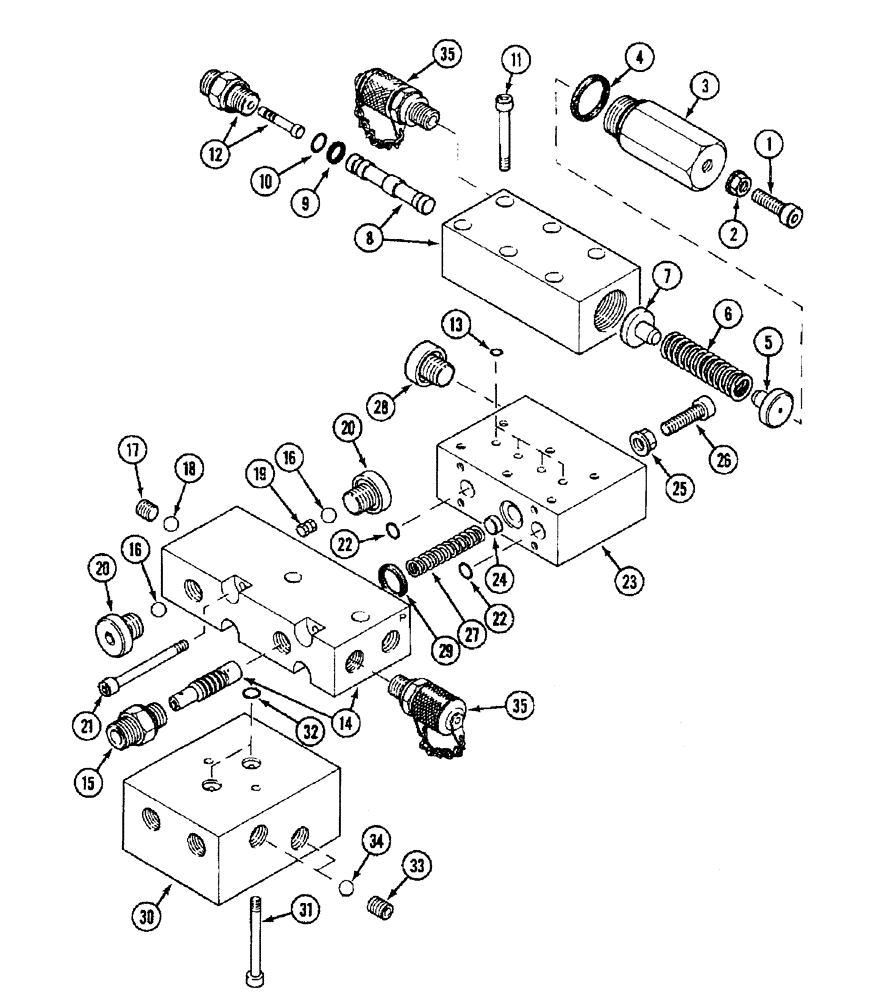

Запчасти Case 688 (8D-16) - COUNTER ROTATION VALVE, P.I.N. 11601 - XXXXX (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
P4743314
HYDRAULIC VALVE
VALVE - valve assembly, counter rotation
1шт.
P4743384
SELECTOR
SELECTOR - valve assembly, selector
1шт.
1
P0732978Q
SCREW
1шт.
2
P2434541
NUT
NUT - nut, adjusting screw
1шт.
3
P1030033
CAP
CAP - body, selector valve
1шт.
4
P2230417
SEAL
SEAL - o ring, body
1шт.
5
P6027871
TAPPET
TAPPET - seat spring
1шт.
6
P2838108
SPRING
SPRING - spring, selector
1шт.
7
P6427831
TAPPET
TAPPET - seat, spring
1шт.
8
P4743386
BODY
BODY - block assembly, body and spool
1шт.
9
P1245260
BACK-UP RING
BACK UP RING - seal
1шт.
10
P1230429
O-RING
O RING - spool
1шт.
11
P232916
SCREW
SCREW - bolt, hex socket, 5 mm x 30 mm
6шт.
12
P4743368
SET OF PARTS
SET OF PARTS - plug assembly, selector
1шт.
P7046042
SEAL
SEAL - plug
1шт.
13
P1230429
O-RING
O RING -, Serial Range: block-body
4шт.
P4743387
PRESSURE LIMITER
PRESSURE LIMITER - valve assembly, counter rotation valve
1шт.
14
P4743388
SET OF PARTS
SET OF PARTS - kits, repairing set
1шт.
15
P2327530
UNION - adapter, straight
1шт.
P7046042
SEAL
SEAL - plug
1шт.
16
P31043
BALL
BALL - valve
2шт.
17
P32813
SCREW
SCREW - body
1шт.
18
P31002
BALL
BALL - valev
1шт.
19
P6427832
TAPPET
TAPPET - pusher, ball
1шт.
20
P2537447
PLUG
PLUG - at body
2шт.
P7046042
SEAL
SEAL - plug
1шт.
21
P332907
SCREW
SCREW - bolt, hex socket, 5 mm x 50 mm
4шт.
22
P1230429
O-RING
O RING -, Serial Range: body-body
2шт.
23
P4743389
BODY
BODY - valve
1шт.
24
P6427833
TAPPET
TAPPET - pusher, spring
1шт.
25
P2434541
NUT
NUT - adjusting screw
1шт.
26
P0732978Q
SCREW
1шт.
27
P1038265
SPRING
SPRING - valve
1шт.
28
P2537447
PLUG
PLUG - body
1шт.
P7046042
SEAL
SEAL - plug
1шт.
29
P1130462
O-RING
O RING - body
1шт.
30
P4743385
ELEMENT
ELEMENT - block assembly, junction block
1шт.
31
P432913
SCREW
SCREW - bolt, hex socket, 6 mm x 40 mm
2шт.
32
P1230429
O-RING
O RING - junction, Serial Range: block-body
2шт.
33
P4743366
SEAT
SEAT - screw
2шт.
34
P31018
BALL
BALL - junction block
2шт.
Выбрано товаров: 41
