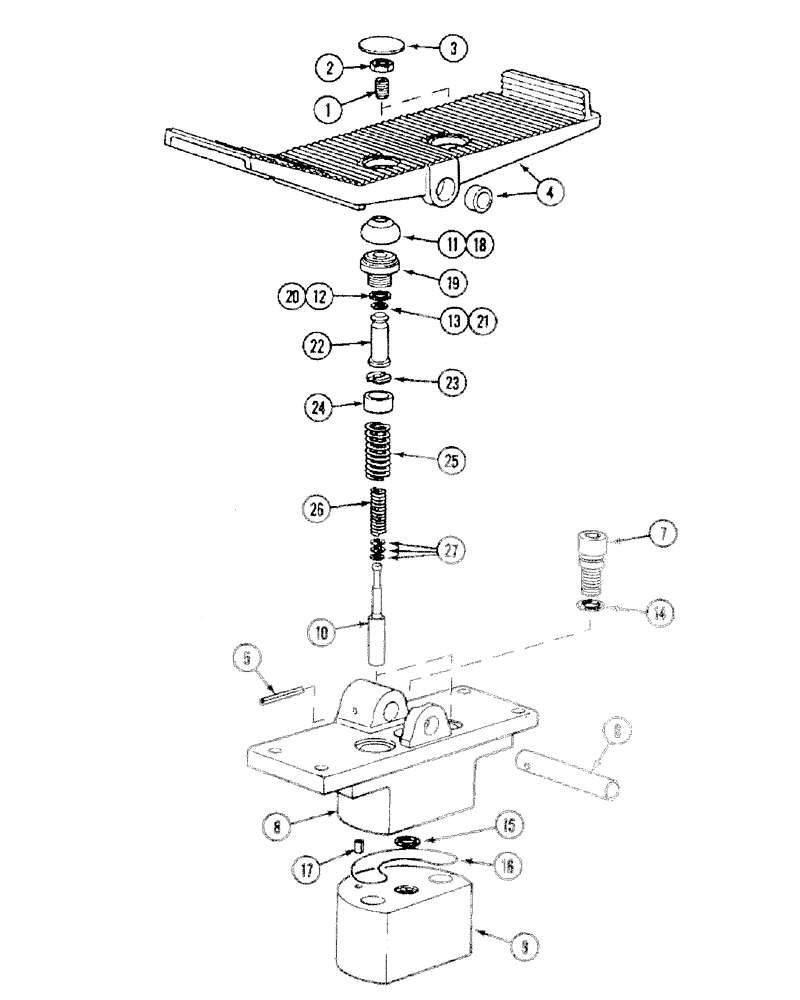

Запчасти Case 688 (8D-14) - FOOT CONTROL VALVE (08) - HYDRAULICS

P4343360

BLOCK ASSY.

VALVE ASSEMBLY - foot control

2шт.

P5242742

PEDAL

ASSEMBLY - foot control

1шт.

1

NSS

NOT SOLD SEPARAT

- screw, adjustment

2шт.

2

NSS

NOT SOLD SEPARAT

- nut, lock, adjusting screw

2шт.

3

NSS

NOT SOLD SEPARAT

- pedal, at adjusting screw

2шт.

4

NSS

NOT SOLD SEPARAT

- pedal and bushings, foot control

1шт.

5

NSS

NOT SOLD SEPARAT

- roll, pin, pedal shaft

1шт.

6

NSS

NOT SOLD SEPARAT

- shaft, pedal

1шт.

7

NSS

NOT SOLD SEPARAT

- bolt, special, upper valve body to port block

1шт.

8

NSS

NOT SOLD SEPARAT

- body, valve, upper

1шт.

9

NSS

NOT SOLD SEPARAT

- body, port, valve

1шт.

10

NSS

NOT SOLD SEPARAT

- spool, regulating

2шт.

P5449619

SEAL PACKAGE

KIT, SEALS - seal, guide

1шт.

11

NSS

NOT SOLD SEPARAT

- rubber, cartridge guide

2шт.

12

NSS

NOT SOLD SEPARAT

- o-ring, guide, large

2шт.

13

NSS

NOT SOLD SEPARAT

- o-ring, guide, small

2шт.

P5449620

KIT

- seal, valve body

1шт.

14

NSS

NOT SOLD SEPARAT

- o-ring, valve body screw

1шт.

15

NSS

NOT SOLD SEPARAT

- o-ring, valve body, small

1шт.

16

NSS

NOT SOLD SEPARAT

- o-ring, valve body, large

1шт.

17

NSS

NOT SOLD SEPARAT

- roll pin, port block

2шт.

P5449621

KIT

- cartridge and guide

2шт.

18

NSS

NOT SOLD SEPARAT

- boot, rubber, cartridge guide

1шт.

19

NSS

NOT SOLD SEPARAT

- guide, cartridge

1шт.

20

NSS

NOT SOLD SEPARAT

- o-ring, guide, large

1шт.

21

NSS

NOT SOLD SEPARAT

- o-ring, guide, small

1шт.

22

NSS

NOT SOLD SEPARAT

- cartridge, control

1шт.

P5449697

KIT

- cartridge spring

2шт.

23

NSS

NOT SOLD SEPARAT

- retainer, spring stop

1шт.

24

NSS

NOT SOLD SEPARAT

- stop, spring

1шт.

25

NSS

NOT SOLD SEPARAT

- spring, cartridge, outer

1шт.

26

NSS

NOT SOLD SEPARAT

- spring, cartridge, inner

1шт.

27

NSS

NOT SOLD SEPARAT

- shim set, spring

1шт.
