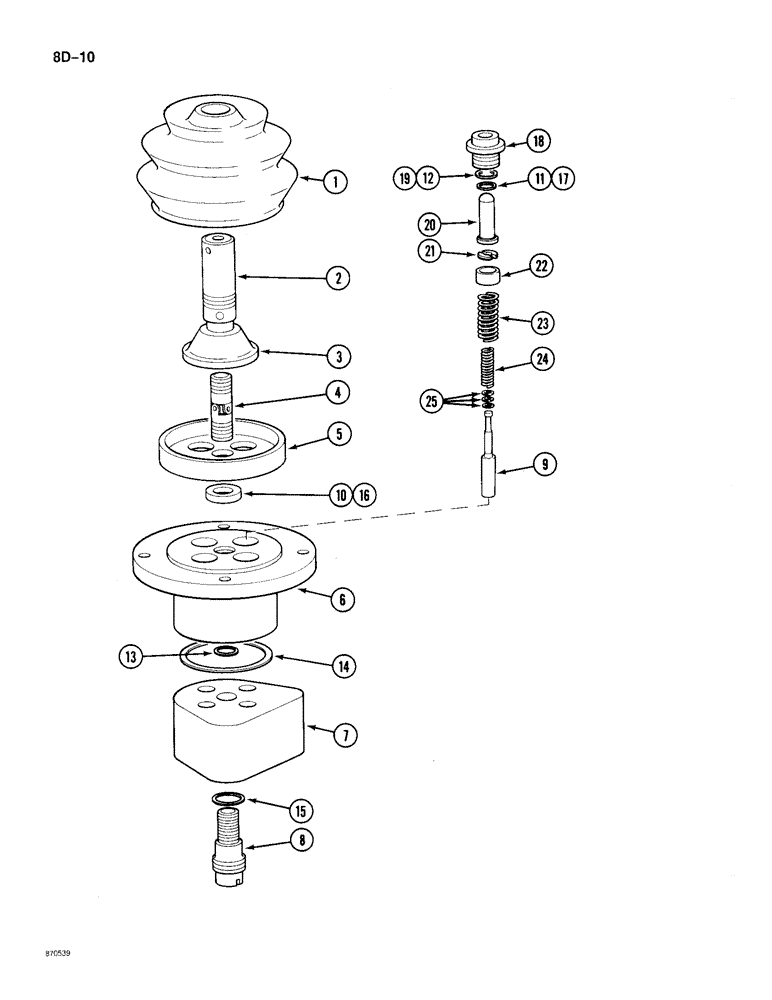

Запчасти Case 688 (8D-10) - HAND CONTROL VALVE, P.I.N. FROM 11601 TO 11644 (08) - HYDRAULICS

P4343363

BLOCK ASSY.

VALVE ASSEMBLY - hand control (Order P4743324, see Figure 8D-12), Includes: Ref. 1 - 25

2шт.

1

P5446210

BELLOWS

BOOT - protective, rubber

1шт.

2

NSS

NOT SOLD SEPARAT

LEVER - control

1шт.

3

NSS

NOT SOLD SEPARAT

CAM - control lever

1шт.

4

P5242741

COUPLING

UNIVERSAL JOINT - control lever

1шт.

5

NSS

NOT SOLD SEPARAT

PLATE - top cover

1шт.

6

NSS

NOT SOLD SEPARAT

BODY - valve upper

1шт.

7

NSS

NOT SOLD SEPARAT

BLOCK - port, valve

1шт.

8

NSS

NOT SOLD SEPARAT

STUD - retainer, Serial Range: body-block

1шт.

9

NSS

NOT SOLD SEPARAT

SPOOL - regulating

4шт.

P3749651

SEAL PACKAGE

KIT - seal guide, Includes: Ref. 10 - 15

1шт.

10

NSS

NOT SOLD SEPARAT

SPACER - Teflon, plate to valve body

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - guide, inner

4шт.

12

NSS

NOT SOLD SEPARAT

O-RING - guide, outer

4шт.

P3749617

KIT

- seal, valve body

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - valve body, small

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - valve body, large

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - retainer stud

1шт.

P5949645

KIT

- cartridge and guide (Replaces P5449627), Includes: Ref. 16 - 20

4шт.

16

NSS

NOT SOLD SEPARAT

SPACER - Teflon, plate to valve body

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING - guide, inner

1шт.

18

NSS

NOT SOLD SEPARAT

GUIDE - cartridge

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING - guide, outer

1шт.

20

NSS

NOT SOLD SEPARAT

CARTRIDGE - control

1шт.

P5949611

KIT

- cartridge spring, Includes: Ref. 21 - 25

4шт.

21

NSS

NOT SOLD SEPARAT

RETAINER - spring stop

2шт.

22

NSS

NOT SOLD SEPARAT

STOP - ring

1шт.

23

NSS

NOT SOLD SEPARAT

SPRING - cartridge, outer

1шт.

24

NSS

NOT SOLD SEPARAT

SPRING - cartridge, inner

1шт.

25

NSS

NOT SOLD SEPARAT

SHIM SET - spring

1шт.
