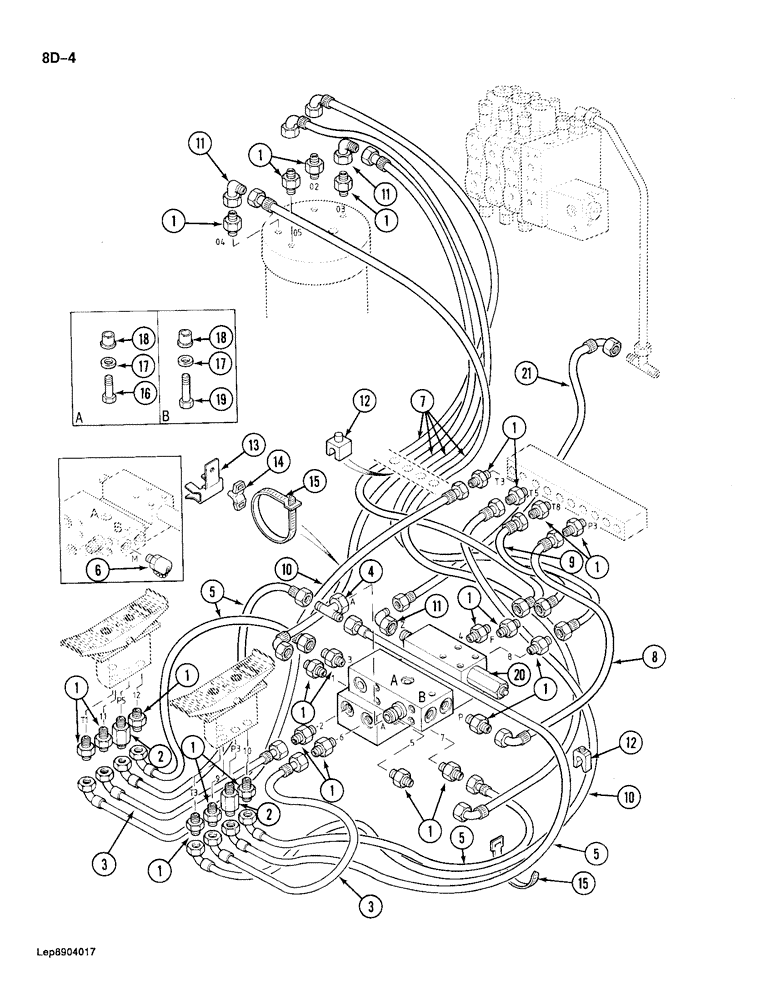

Запчасти Case 688 (8D-04) - HYDRAULIC CONTROL CIRCUIT, MANIFOLD TO FOOT CONTROL VALVES AND SWIVEL (08) - HYDRAULICS

1

P3237530

UNION

ADAPTER - straight

25шт.

P7046042

SEAL

- adapter

1шт.

2

P4237593

FITTING

ADAPTER - straight, long

2шт.

P7046042

SEAL

- adapter

1шт.

3

P5431952

HOSE

- 14-1/4" long, control circuit

2шт.

4

P937293

TEE

- street

1шт.

5

P5431953

HOSE

- 15-3/4" long, control circuit

4шт.

6

P3237549

UNION

DISCONNECT ASSEMBLY - pressure check, Serial Range: 11601-XXXXX

1шт.

P7046042

SEAL

- adapter, not shown

1шт.

7

P6531955

HOSE

- 24-13/16" long, control circuit

2шт.

8

P5931904

HOSE

- 19-3/4" long, control circuit

3шт.

9

P5431949

HOSE

- 19-3/4" long, control circuit

1шт.

10

P5431978

HOSE

- 33-1/2" long, control circuit

1шт.

11

P1737018

ANGLE

ELBOW - 90 degree

3шт.

12

P2036942

SUPPORT

RETAINER - control circuit hoses

6шт.

13

P2036902

CLASP

CLIP - retainer, 1/8" - 1/4" range

1шт.

14

P2036939

CLASP

RETAINER - tie strap

1шт.

15

P51946

CLAMP

TIE STRAP - circuit hoses, 10-1/8" long

1шт.

16

P32925

SCREW

BOLT - hex socket, 8 mm x 40 mm

1шт.

17

P3528795

WASHER

SPACER - bolt, 7 mm thick

2шт.

18

P234587

NUT

RETAINER - bolt, sleeve type, M8

1шт.

19

P33822

SCREW

BOLT - hex, 8 mm x 50 mm

1шт.

20

REF

INSTRUCTION

VALVE ASSEMBLY - counter rotation valve, See Figures 8D-16 & 8D-18

1шт.

21

P7331927

HOSE

- 63" long, control circuit

1шт.
