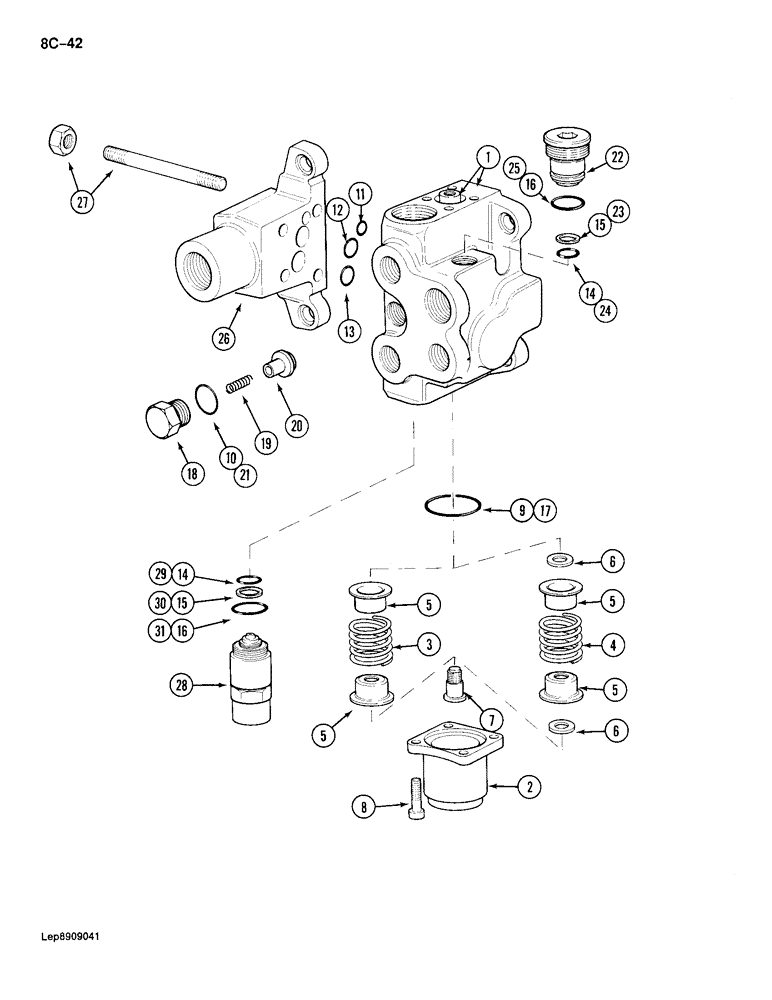

Запчасти Case 688 (8C-42) - SWING CONTROL VALVE, P.I.N. FROM 11642 AND AFTER (08) - HYDRAULICS

P3843614

DISTRIBUTOR

VALVE BODY ASSEMBLY - swing control, Includes: Ref. 1 - 9

1шт.

P5949629

SPARE PART SET

VALVE - swing control

1шт.

1

NSS

NOT SOLD SEPARAT

VALVE BODY - swing control

1шт.

Ref #1 - (Not included in Kit P5949629)

1шт.

2

NSS

NOT SOLD SEPARAT

CAP - valve spool

2шт.

3

NSS

NOT SOLD SEPARAT

SPRING - spool

1шт.

4

NSS

NOT SOLD SEPARAT

SPRING - spool

1шт.

5

NSS

NOT SOLD SEPARAT

SEAT - spring

4шт.

6

NSS

NOT SOLD SEPARAT

WASHER - bolt

2шт.

7

NSS

NOT SOLD SEPARAT

BOLT - spool

2шт.

8

NSS

NOT SOLD SEPARAT

BOLT - hex socket, cap

8шт.

9

NSS

NOT SOLD SEPARAT

O-RING - spool cap

2шт.

P5949621

SEAL PACKAGE

KIT - repair, small, Includes: Ref. 10 - 17

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - load check plug

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - valve body to end cover, small

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - valve body to end cover, large upper port

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - valve body to end cover, large lower port

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - small, plug

3шт.

15

NSS

NOT SOLD SEPARAT

BACKUP RING - O-ring

3шт.

16

NSS

NOT SOLD SEPARAT

O-RING - plug, large

3шт.

17

NSS

NOT SOLD SEPARAT

O-RING - spool cap

2шт.

P5949628

SET OF PARTS

VALVE ASSEMBLY - load check, Includes: Ref. 18 - 21

1шт.

18

NSS

NOT SOLD SEPARAT

PLUG - load check valve

1шт.

19

NSS

NOT SOLD SEPARAT

SPRING - poppet

1шт.

20

NSS

NOT SOLD SEPARAT

POPPET - load check

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL - plug

1шт.

P3337497

SET OF PARTS

PLUG ASSEMBLY - swing control valve, Includes: Ref. 22 - 25

1шт.

22

NSS

NOT SOLD SEPARAT

PLUG - swing control valve

1шт.

23

NSS

NOT SOLD SEPARAT

BACKUP RING - O-ring

1шт.

24

NSS

NOT SOLD SEPARAT

O-RING - small, plug

1шт.

25

NSS

NOT SOLD SEPARAT

O-RING - plug, large

1шт.

26

P3843613

ELEMENT

COVER - end, valve

1шт.

27

P2644907

TRUSS ROD

STUD - end cover to valve body

4шт.

P3843615

CARTRIDGE

RELIEF VALVE ASSEMBLY - swing control, Includes: Ref. 28 - 31

2шт.

28

NSS

NOT SOLD SEPARAT

VALVE - relief valve

1шт.

P5949620

SEAL PACKAGE

SEAL KIT - repair seal

2шт.

29

NSS

NOT SOLD SEPARAT

O-RING - valve, small

1шт.

30

NSS

NOT SOLD SEPARAT

BACKUP RING - O-ring

1шт.

31

NSS

NOT SOLD SEPARAT

O-RING - valve, large

1шт.
