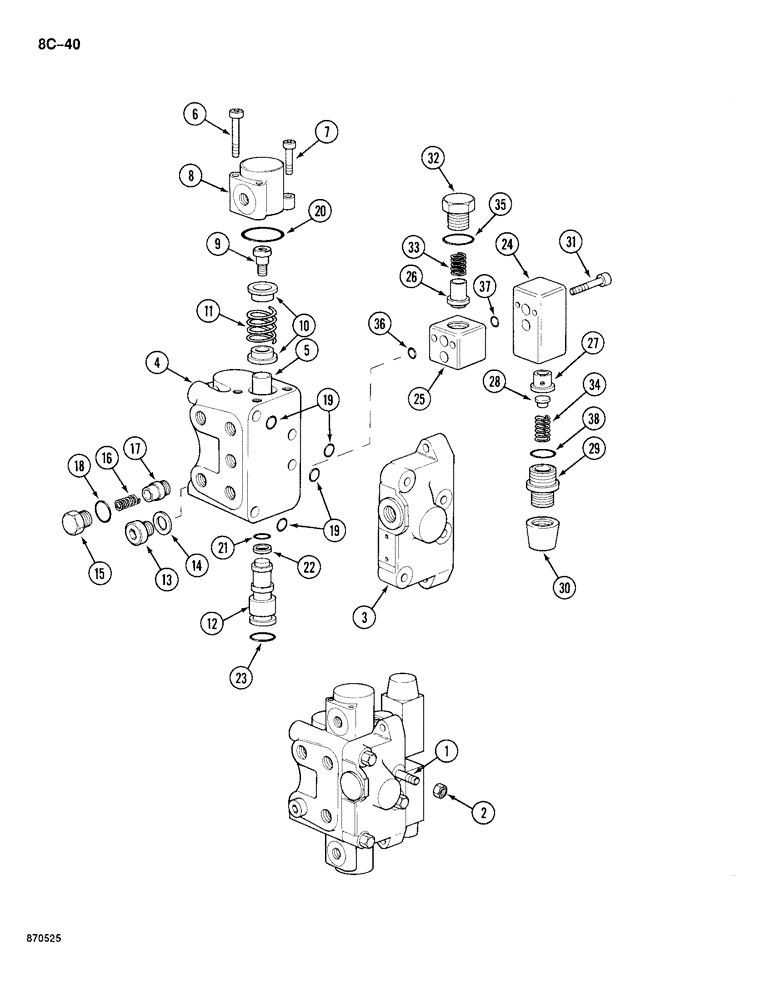

Запчасти Case 688 (8C-40) - SWING CONTROL VALVE, P.I.N. FROM 11601 TO 11641 (08) - HYDRAULICS

1

P144992

TRUSS ROD

STUD - end cover to valve body

4шт.

2

P1634589

NUT

- hex, self-locking, 10 mm

8шт.

3

P3143624

ELEMENT

COVER - end, valve

1шт.

P3143625

DISTRIBUTOR

VALVE BODY ASSEMBLY - swing control, Includes: Ref. 4 - 23

1шт.

4

NSS

NOT SOLD SEPARAT

VALVE BODY - swing control

1шт.

5

NSS

NOT SOLD SEPARAT

SPOOL - swing control valve

1шт.

6

P432913

SCREW

BOLT - hex socket, 6 mm x 40 mm

4шт.

7

P32911

SCREW

BOLT - hex socket, 6 mm x 20 mm

4шт.

8

P2340464

CAP

- valve spool

2шт.

9

P2033090

SCREW

BOLT - spool

2шт.

10

P8230112

CUPEL

SEAT - spring

4шт.

11

P38259

SPRING

- spool

2шт.

12

P2537402

BLANK-OFF PLUG

PLUG - section, valve body

1шт.

13

P3037409

PLUG

- valve body

1шт.

14

P8046044

SEAL

- plug

1шт.

15

P2537433

PLUG

- load check valve

1шт.

16

P38283

SPRING

- poppet

1шт.

17

P2643624

VALVE POPPET

POPPET - load check

1шт.

P5449657

SEAL PACKAGE

KIT - repair, seal, Includes: Ref. 18 - 23

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING - load check plug

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING - valve body to end cover

4шт.

20

NSS

NOT SOLD SEPARAT

O-RING - spool cap

2шт.

21

NSS

NOT SOLD SEPARAT

O-RING - small, plug

1шт.

22

NSS

NOT SOLD SEPARAT

BACKUP RING - O-ring

1шт.

23

NSS

NOT SOLD SEPARAT

O-RING - plug, lower

1шт.

P2643606

BOX

RELIEF VALVE ASSEMBLY - swing control, Includes: Ref. 24 - 34

2шт.

24

NSS

NOT SOLD SEPARAT

BLOCK - relief valve

1шт.

25

NSS

NOT SOLD SEPARAT

BLOCK - relief valve

1шт.

26

NSS

NOT SOLD SEPARAT

PISTON - relief valve

1шт.

27

NSS

NOT SOLD SEPARAT

GUIDE - relief valve

1шт.

28

NSS

NOT SOLD SEPARAT

POPPET - relief valve

1шт.

29

NSS

NOT SOLD SEPARAT

BODY - plunger

1шт.

30

NSS

NOT SOLD SEPARAT

COVER - body

1шт.

31

P1532910

SCREW

BOLT - hex socket, 6 mm x 75 mm

2шт.

32

P2537443

PLUG

- relief valve

1шт.

33

P38277

SPRING

- relief valve

1шт.

34

P38278

SPRING

- plunger

1шт.

P3749656

SEAL PACKAGE

KIT - repair seal, Includes: Ref. 35 - 38

2шт.

35

NSS

NOT SOLD SEPARAT

O-RING - plug

1шт.

36

NSS

NOT SOLD SEPARAT

O-RING -, Serial Range: block-body

2шт.

37

NSS

NOT SOLD SEPARAT

O-RING - block

2шт.

38

NSS

NOT SOLD SEPARAT

O-RING - body

1шт.
