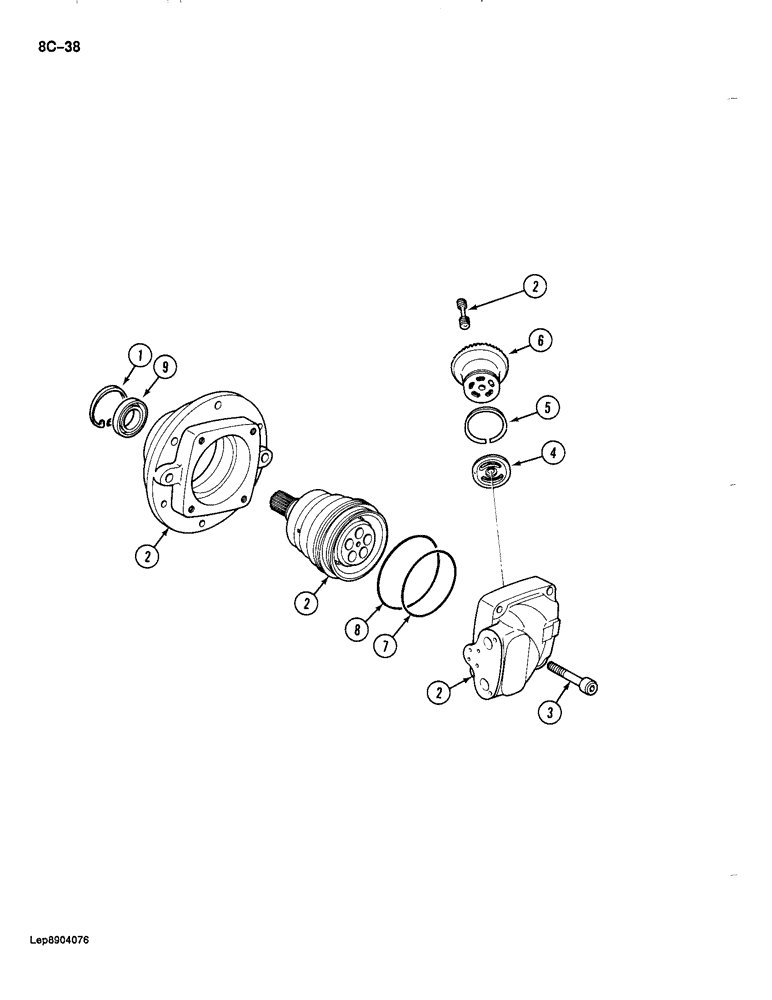

Запчасти Case 688 (8C-38) - SWING HYDRAULIC MOTOR (08) - HYDRAULICS

P4743722

MOTOR, HYDRAULIC

HYDRAULIC MOTOR ASSEMBLY - swing, Includes: Ref. 1 - 9

1шт.

1

P936325

RING, SNAP

SNAP RING - washer retaining

1шт.

2

P1729866

PISTON

MOTOR - no component part available, service only as a remanufactured unit, order P4743722

1шт.

3

P532942

SCREW

BOLT - hex socket, 12 mm x 60 mm, grade 10.9

4шт.

4

P6546297

ELEC SUPPORT PLATE

PLATE - valve

1шт.

5

P936311

RING, SNAP

RING - locking, plate

1шт.

6

P1030006

LOCK, CYLINDER

BLOCK - cylinder

1шт.

P3749696

SEAL PACKAGE

KIT - repair, seal, Includes: Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING - shaft assembly, small

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING - shaft assembly, large

1шт.

9

P7146036

OIL SEAL

SEAL - shaft, front housing

1шт.

Ref #9 - (65 mm O.D. X 45 mm I.D. X 7 mm Thk)

1шт.
