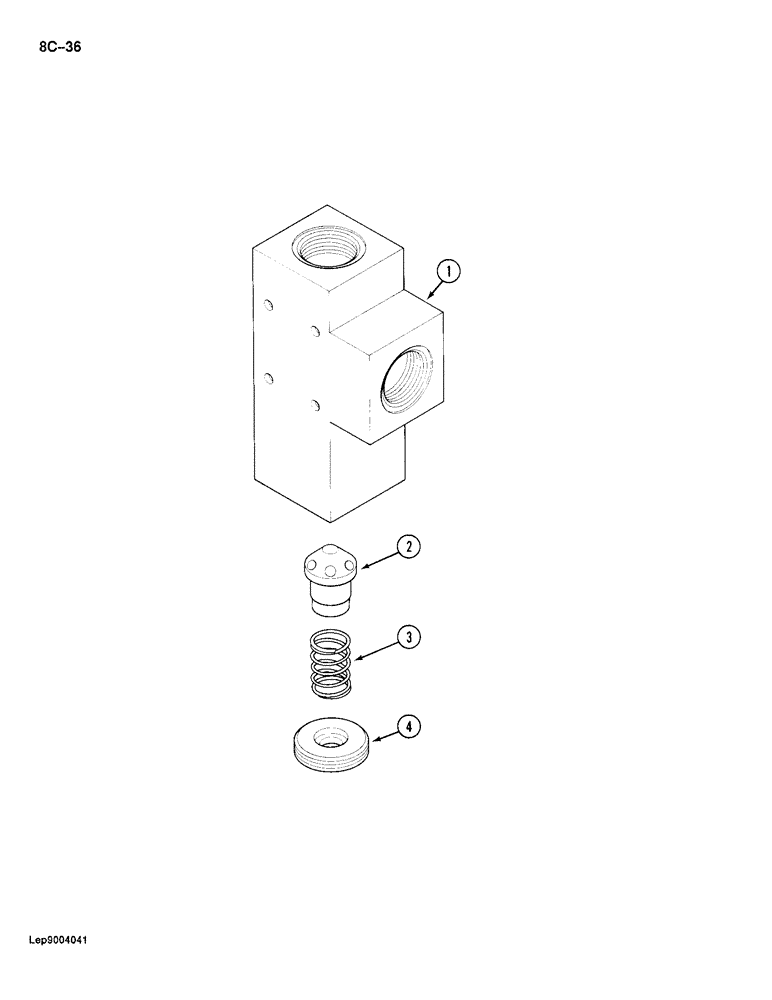

Запчасти Case 688 (8C-36) - FEED CONTROL VALVE (08) - HYDRAULICS

P4743301

VALVE

BLOCK ASSEMBLY - feed control valve, Includes: Ref. 1 - 4, Serial Range: 11601-XXXXX

1шт.

1

P4743302

BODY

- feed control valve, Serial Range: 11601-XXXXX

1шт.

2

P4743303

VALVE POPPET

POPPET - feed control valve, Serial Range: 11601-XXXXX

1шт.

3

P2838107

SPRING

- feed control valve, Serial Range: 11601-XXXXX

1шт.

4

P4229120

GUIDE

RETAINER - spring, Serial Range: 11601-XXXXX

1шт.

P4943332

VALVE

BLOCK ASSEMBLY - feed control valve, Includes: Ref. 1 - 4, Serial Range: 11601-XXXXX

1шт.

1

REF

INSTRUCTION

BODY - feed control valve, Start Serial: XXXXX

1шт.

2

P4943339

VALVE POPPET

POPPET - feed control valve, Start Serial: XXXXX

1шт.

3

P2838127

SPRING

- feed control valve, Start Serial: XXXXX

1шт.

4

P4229127

STOP

RETAINER - spring, Start Serial: XXXXX

1шт.
