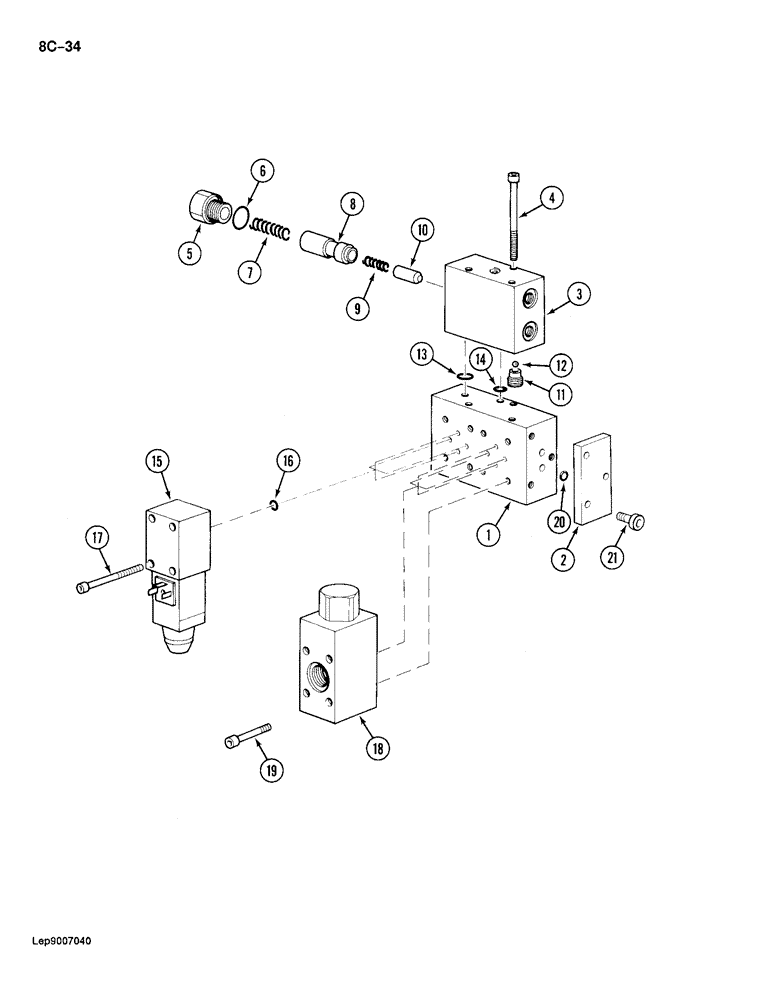

Запчасти Case 688 (8C-34) - SOLENOID VALVE AND SWING BRAKE RELEASE, P.I.N. FROM 11695 (08) - HYDRAULICS

1

P3923371

BODY

BLOCK - manifold

1шт.

P4743391

SHIN

BLOCK ASSEMBLY - swing brake release

1шт.

2

P4323353

LARGE PLATE

COVER - block assembly, Includes: Ref. 3 - 14

1шт.

3

NSS

NOT SOLD SEPARAT

BLOCK - swing brake release

1шт.

4

P632913

SCREW

BOLT - hex socket, 5 mm x 80 mm, grade 10.9

3шт.

5

P3743357

CAP

PLUG - brake release block

1шт.

6

P1145268

SEAL

- plug

1шт.

7

P1038211

SPRING

- spool, large

1шт.

8

NSS

NOT SOLD SEPARAT

SPOOL - brake release block

1шт.

9

P1038212

SPRING

- poppet, small

1шт.

10

NSS

NOT SOLD SEPARAT

POPPET - brake release

1шт.

11

P3743356

SEAT

PLUG - check valve

1шт.

12

P31002

BALL

- check valve

1шт.

13

P1130463

O-RING

- brake release block, large

2шт.

14

P1230430

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- brake release block, small

1шт.

P4943343

SHIN

SOLENOID VALVE ASSEMBLY - pilot circuit control, Includes: Ref. 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

SOLENOID VALVE - pilot circuit control

1шт.

16

P1230430

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- solenoid, Serial Range: valve-block

4шт.

17

P1332902

SCREW

BOLT - hex socket, 5 mm x 55 mm

4шт.

18

REF

INSTRUCTION

VALVE ASSEMBLY - pressure limiter, see Figure 8C-44

1шт.

19

P1332902

SCREW

BOLT - hex socket, 5 mm x 55 mm

4шт.

20

P1130463

O-RING

-, Serial Range: cover-body

2шт.

21

P32921

SCREW,Hex Soc Hd, M8 x 20, 10.9

BOLT - hex socket, 8 mm x 20 mm

3шт.
