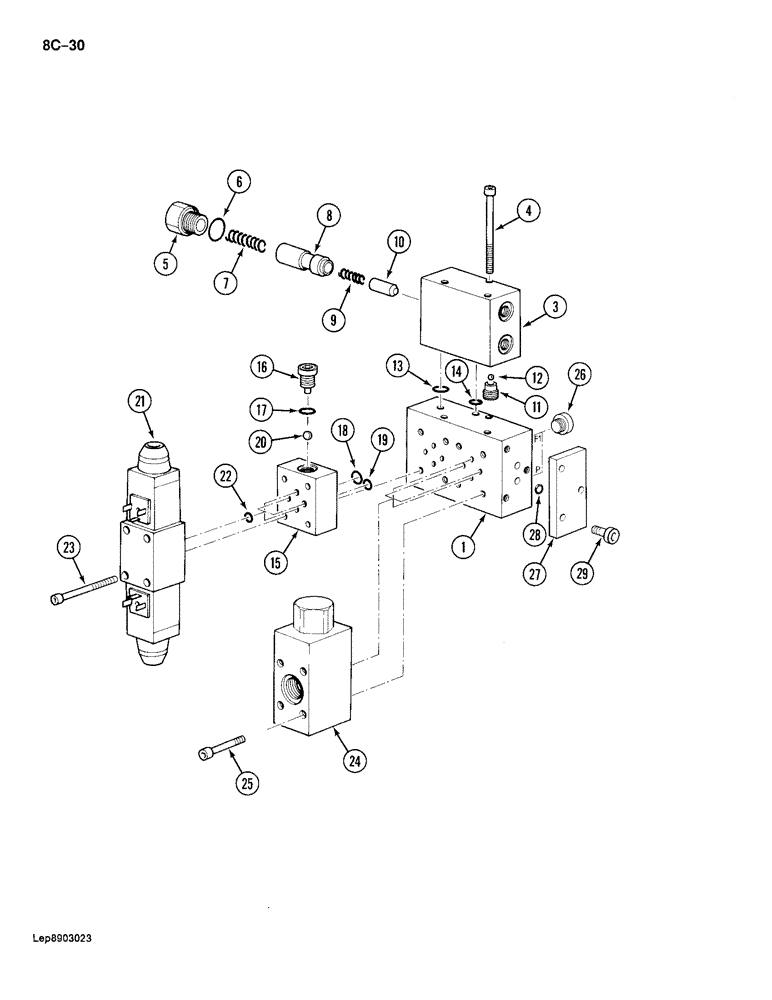

Запчасти Case 688 (8C-30) - SOLENOID VALVE AND SWING BRAKE RELEASE, P.I.N. FROM 11601 TO 11641 (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
P3923371
BODY
BLOCK - manifold, Includes: Ref. 3 - 14
1шт.
P3143393
BLOCK ASSY.
BLOCK ASSEMBLY - swing brake release, Includes: Ref. 3 - 14
1шт.
3
NSS
NOT SOLD SEPARAT
BLOCK - swing brake release
1шт.
4
P632913
SCREW
BOLT - hex head socket, 5 mm x 80 mm, grade 10.9
3шт.
5
P3743357
CAP
PLUG - brake release block
1шт.
6
P1145268
SEAL
- plug
1шт.
7
P1038211
SPRING
- spool, large
1шт.
8
NSS
NOT SOLD SEPARAT
SPOOL - brake release block
1шт.
9
P1038212
SPRING
- poppet, small
1шт.
10
NSS
NOT SOLD SEPARAT
POPPET - brake release
1шт.
11
P3743356
SEAT
PLUG - check valve
1шт.
12
P31002
BALL
- check valve
1шт.
13
P1130463
O-RING
- brake release block, large
2шт.
14
P1230430
O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro
- brake release block, small
1шт.
P2643379
BLOCK
ASSEMBLY - check valve, Includes: Ref. 15 - 20
1шт.
15
NSS
NOT SOLD SEPARAT
BLOCK - check valve
1шт.
16
P2537471
PLUG
- check valve
1шт.
17
P7046042
SEAL
- plug
1шт.
18
P1130463
O-RING
- block, large
1шт.
19
P1230430
O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro
- block, small
3шт.
20
P31004
BALL
- check valve
2шт.
P3743364
DISTRIBUTOR
SOLENOID VALVE ASSEMBLY - pilot circuit control, Includes: Ref. 21 - 23
1шт.
21
NSS
NOT SOLD SEPARAT
SOLENOID VALVE - pilot circuit control
1шт.
22
P1230430
O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro
- solenoid, Serial Range: valve-block
4шт.
23
P1332902
SCREW
BOLT - hex socket, 5 mm x 55 mm, used with SIGMA/VICKERS solenoid valve
4шт.
24
REF
INSTRUCTION
VALVE ASSEMBLY - pressure limiter, see Figure 8C-44
1шт.
25
P1332902
SCREW
BOLT - hex socket, 5 mm x 55 mm
4шт.
26
P2537447
PLUG
- manifold block
2шт.
P7046042
SEAL
- plug
1шт.
27
P4323353
LARGE PLATE
COVER - block assembly
1шт.
28
P1130463
O-RING
-, Serial Range: cover-body
2шт.
29
P32921
SCREW,Hex Soc Hd, M8 x 20, 10.9
BOLT - hex socket, 8 mm x 20 mm
3шт.
Выбрано товаров: 32
