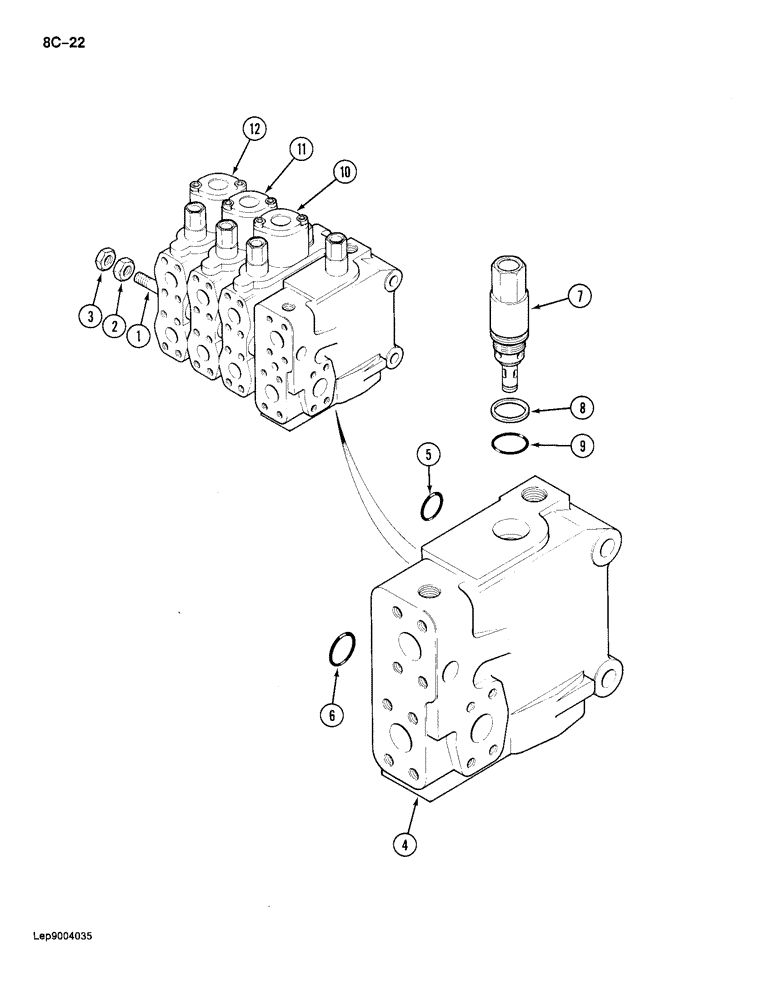

Запчасти Case 688 (8C-22) - ATTACHMENT CONTROL VALVE, P.I.N. FROM 11654 AND AFTER (08) - HYDRAULICS

1

P2527738

STEM

STUD - control valve sections

3шт.

2

P34169

NUT

- hex, 16 mm

3шт.

3

P34564

NUT

- hex, self-locking, 16 mm

3шт.

P3843623

LARGE PLATE

SECTION ASSEMBLY - inlet and outlet, attachment control valve, Includes: Ref. 4 - 9

1шт.

4

NSS

NOT SOLD SEPARAT

SECTION - inlet and outlet

1шт.

5

P2230466

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- inlet and outlet secction, small

1шт.

6

P2230467

O-RING,0.103" Thk x 1.11" ID, -122, Cl 5, 75 Duro

- inlet and outlet section, large

4шт.

P3143647

LIMITER, TRAVEL

MAIN RELIEF VALVE ASSEMBLY - attachment hydraulic circuit, Includes: Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

MAIN RELIEF VALVE - hydraulic circuit

1шт.

8

P1245232

RING

BACKUP RING - seal

1шт.

9

P2230463

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- relief valve body

1шт.

10

REF

INSTRUCTION

SECTION ASSEMBLY - attachment control, boom, see Figure 8C-24

1шт.

11

REF

INSTRUCTION

SECTION ASSEMBLY - attachment control, tool, see Figure 8C-24

1шт.

12

REF

INSTRUCTION

SECTION ASSEMBLY - attachment control, arm, see Figure 8C-24

1шт.
