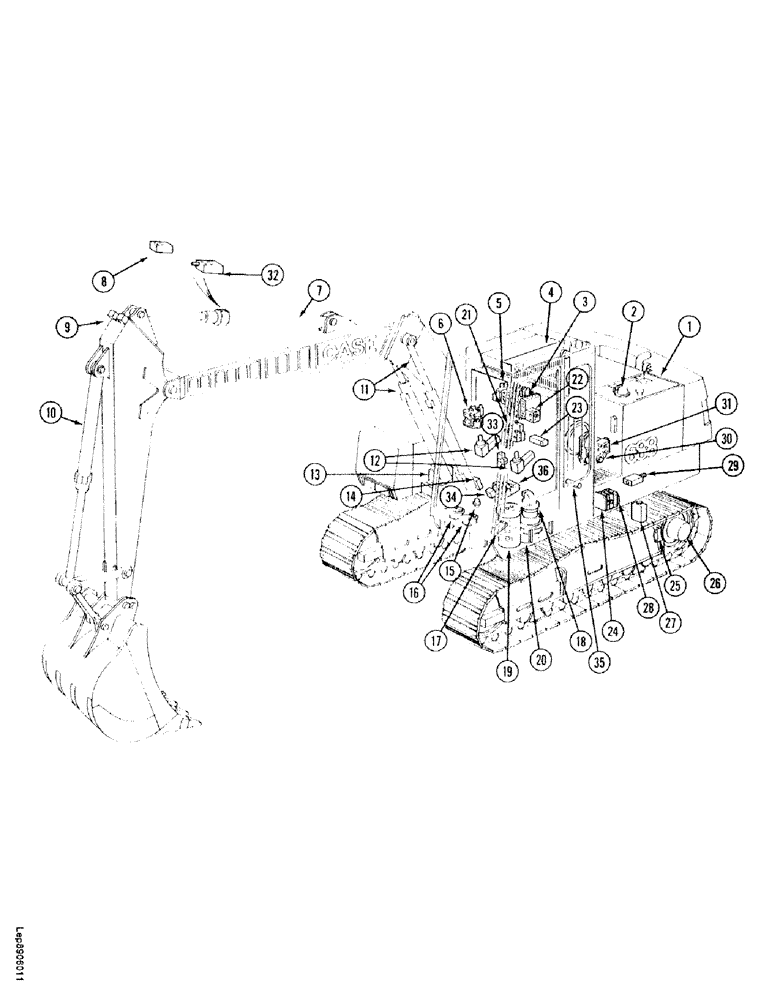

Запчасти Case 688 (1-10) - PICTORIAL INDEX, HYDRAULIC COMPONENTS (00) - PICTORIAL INDEX

1

Hydraulic Reservoir, Page 8A-3

1шт.

2

Hydraulic Return Oil Filter, Page 8A-5

1шт.

3

Attachment Control Valve, Page, Serial Range: 8C-21-8C-25

1шт.

4

Oil Cooler and Radiator, Page 2-11

1шт.

5

Control Valve for Option, Page 8F-11

1шт.

6

Swing Control Valve, Page 8C-41

1шт.

7

Arm Cylinder, Page 8G-19

1шт.

8

Arm Cylinder Block Assembly, Page 8G-15

1шт.

9

Manifold Block, Page 8G-23

1шт.

10

Tool Cylinder, Page 8G-25

1шт.

11

Boom Cylinders, Page 8G-11

1шт.

12

Hand Control Valve, Page 8D-11, 8D-13

1шт.

13

Hydraulic Hammer Control Valve, Page 8E-13

1шт.

14

Block Assembly, Page 8G-7

1шт.

15

Hydraulic Foot Pump, Page 9D-5

1шт.

16

Foot Control Valve, Page 8D-15

1шт.

17

Optional Foot Control Valve, Page 8D-15

1шт.

18

Swing Hydraulic Motor, Page 8C-39

1шт.

19

Hydraulic Swivel, Page 8C-19

1шт.

20

Swing Transmission, Page 6-11, 6-13

1шт.

21

Solenoid Valve and Swing Brake Release, Page 8C-31, 8C-35

1шт.

22

Attachment Control Valve Block, Page 8C-27, 8C-29

1шт.

23

Thermostat Controlled Valve, Page 8B-17

1шт.

24

Drive Control Valve, Page 7-9 - 7-15

1шт.

25

Track Drive Hydraulic Motor, Page 7-19

1шт.

26

Final Drive Transmission, Page 6-7, 6-9

1шт.

27

Travel Speed Limiter Valve, Page 7-17

1шт.

28

Brake Release Valve, Page 7-11

1шт.

29

Anti Surge Valve, Page 8B-13

1шт.

30

Low Pressure Hydraulic Pump, Page 8B-19

1шт.

31

High Pressure Hydraulic Pump, Page 8B-21 - 8B-33

1шт.

32

Load Holding Valve, arm cylinder, Page 8G-17

1шт.

33

Feed Control Valve, Page 8C-37

1шт.

34

Load Holding Valve, boom cylinders, Page 8G-9

1шт.

35

Leak Return Valve Filter, Page 8B-15

1шт.

36

Counter Rotation Valve, Page 8D-17, 8D-19

1шт.
