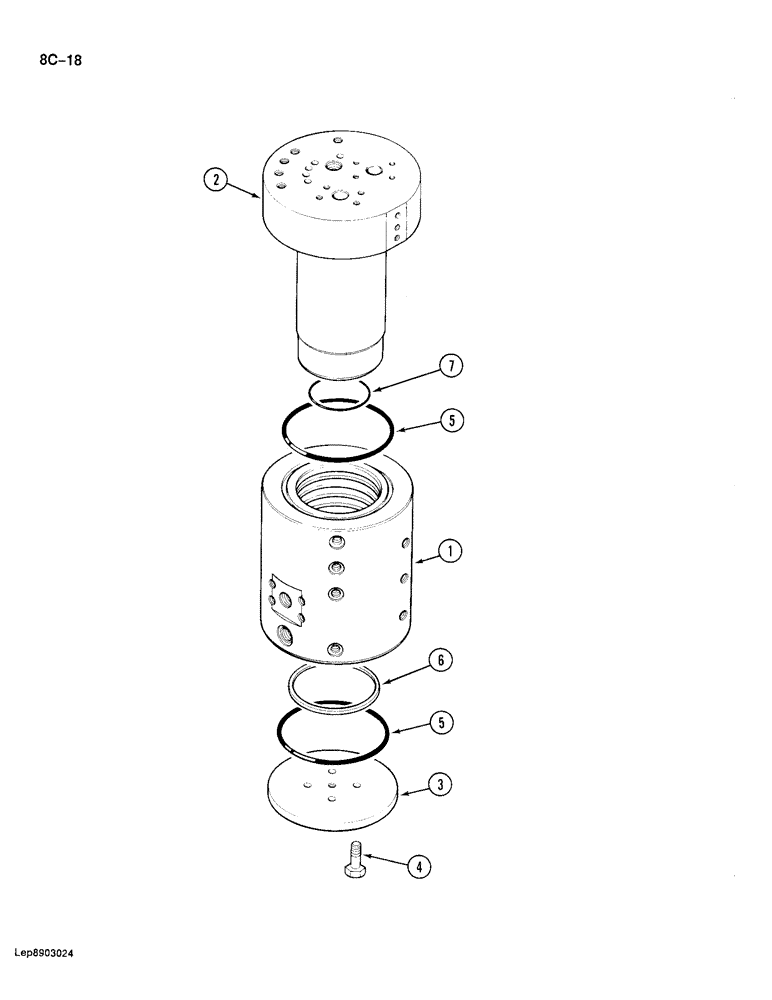

Запчасти Case 688 (8C-18) - HYDRAULIC SWIVEL (08) - HYDRAULICS

P39026

HYDRAULIC SWIVEL

SWIVEL ASSEMBLY - hydraulic, Includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - swivel

1шт.

2

NSS

NOT SOLD SEPARAT

SWIVEL - inner

1шт.

3

P8230197

LARGE PLATE

RETAINER - inner swivel

1шт.

4

P933890

SCREW

BOLT - hex, 10 mm x 30 mm

4шт.

5

P1030377

O-RING

- housing, upper and lower

2шт.

6

P646098

SPECIAL MAT. SEAL

SEAL - ring, swivel

8шт.

7

P130455

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

- inner, Serial Range: swivel-retainer

1шт.
