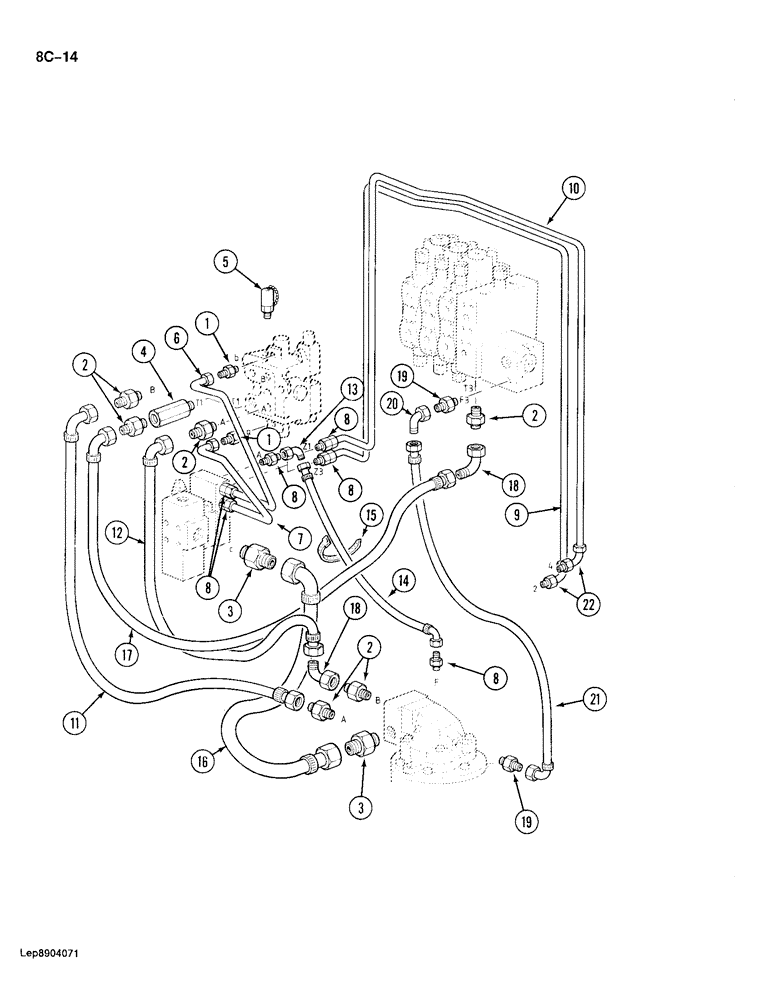

Запчасти Case 688 (8C-14) - SWING MOTOR HYDRAULIC CIRCUIT, P.I.N. FROM 11601 TO 11641 (08) - HYDRAULICS

1

P2643388

VALVE POPPET

ADAPTER - straight with restrictor

2шт.

P7046042

SEAL

- adapter

1шт.

2

P3237533

UNION

ADAPTER - straight

6шт.

P1145268

SEAL

- adapter

1шт.

3

P4237597

UNION

ADAPTER - straight

2шт.

P945294

SEAL

- adapter

1шт.

4

P2643355

VALVE POPPET

ADAPTER - special, restrictor

1шт.

P5746063

SEAL

- adapter

1шт.

5

P3237549

UNION

DISCONNECT ASSEMBLY - pressure check

1шт.

P7046042

SEAL

- adapter

1шт.

6

P6049028

PIPE

TUBE - control circuit, block to lower port of swing control valve

1шт.

7

P6049027

PIPE

TUBE - control circuit, block to upper port of swing control valve

1шт.

8

P3237530

UNION

TIE STRAP - straight

6шт.

P7046042

SEAL

- adapter

1шт.

9

P6149196

PIPE

TUBE - control circuit, lower port of solenoid valve block

1шт.

10

P6149197

PIPE

TUBE - control circuit, upper port of solenoid valve block

1шт.

11

P5431967

HOSE

- 24-13/16" long, upper port of swing control valve to swing motor

1шт.

12

P5931924

HOSE

- 19-3/4" long, lower port of swing control valve to swing motor

1шт.

13

P1737018

ANGLE

ELBOW - 90 degree

1шт.

14

P6531955

HOSE

- 24-13/16" long, solenoid valve to swing motor

1шт.

15

P336923

CLAMP

TIE STRAP - hose

1шт.

16

P7331957

HOSE

- 24-13/16" long, feed control valve to swing motor

1шт.

17

P6531958

HOSE

- 31-1/2" long, return, swing control valve to attachment valve

1шт.

18

P1737021

ANGLE

ELBOW - 90 degree

2шт.

19

P3237582

FITTING

ADAPTER - straight, barb hose type

2шт.

P5746063

SEAL

- adapter

1шт.

20

P1737020

ANGLE

ELBOW - 90 degree

1шт.

21

P7331950

HOSE

- 15-3/4" long, swing motor to attachment valve

1шт.

22

P1737008

ANGLE

ELBOW - 90 degree

2шт.
