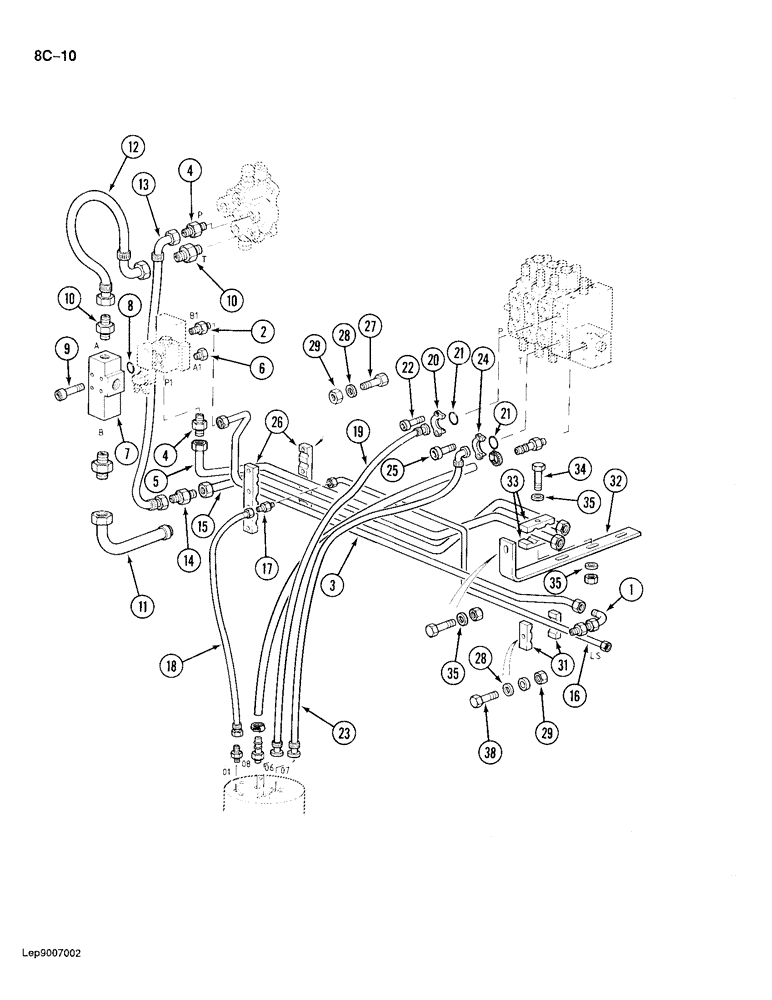

Запчасти Case 688 (8C-10) - SWIVEL AND SWING MOTOR HYDRAULIC CIRCUIT, P.I.N. FROM 11654 AND AFTER (08) - HYDRAULICS

1

P1737010

ANGLE

ELBOW - 90 degree

1шт.

2

P3237532

UNION

ADAPTER - straight

1шт.

P2230418

SEAL

- adapter

1шт.

3

P7249113

PIPE

TUBE - control circuit, upper port of solenoid valve block

1шт.

4

P3237533

UNION

ADAPTER - straight

2шт.

P1145268

SEAL

- adapter

1шт.

5

P7249112

PIPE

TUBE - solenoid valve feeding

1шт.

6

P2537447

PLUG

- solenoid valve

1шт.

P7046042

SEAL

- adapter

1шт.

7

REF

INSTRUCTION

FEED CONTROL VALVE - circuit, see Figure 8C-36

1шт.

8

P1630436

O-RING

- feed control valve to solenoid valve

1шт.

9

P1332975

SCREW

BOLT - hex socket, 5 mm x 105 mm

4шт.

10

P4037597

UNION

ADAPTER - straight

2шт.

P5746063

SEAL

- adapter

1шт.

11

P4637613

PIPE

TUBE - return at cooler, lower port of feed control valve

1шт.

12

P5431963

HOSE

- 24-13/16" long, return, feed control valve to swing valve

1шт.

13

P5431967

HOSE

- 24-13/16" long, feed control valve feeding

1шт.

14

P3237537

UNION

ADAPTER - straight

1шт.

15

P6349088

PIPE

TUBE - swing control valve feeding

1шт.

16

P6449070

PIPE

TUBE - leak return, hydraulic, Serial Range: swivel-pump

1шт.

17

P3237534

UNION

ADAPTER - straight

1шт.

18

P6531934

HOSE

- 31-1/2" long, leak return, hydraulic, Serial Range: swivel-tube

1шт.

19

P5431973

HOSE

- 39-3/8" long, pressure, parralel valve, Serial Range: section-swivel

1шт.

20

P4024267

SHIN

SPLIT FLANGE - hose

4шт.

21

P330421

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

- hose flange

4шт.

22

P32944

SCREW

BOLT - hex socket, 12 mm x 40 mm

8шт.

23

P7331913

HOSE

- 25-3/4" long, return, swivel to parallel valve block

1шт.

24

P4024272

BRACKET

SPLIT FLANGE - hose

4шт.

25

P32933

SCREW

BOLT - hex socket, 10 mm x 30 mm

8шт.

26

P4820364

SHIN

CLAMP - 5 tubes

2шт.

27

P133865

SCREW

BOLT - hex, 8 mm x 60 mm

4шт.

28

P3528794

WASHER

SPACER - bolt, 6 mm thick

7шт.

29

P134596

SAFETY NUT

NUT - hex, self-locking, 8 mm

6шт.

31

P4420364

SHIN

CLAMP - 2 hoses

2шт.

32

P5225627

SUPPORT

BRACKET - clamp support

1шт.

33

P4820363

SHIN

CLAMP - 2 tubes

2шт.

34

P533849

SCREW

BOLT - hex, 10 mm x 65 mm

1шт.

35

P3528795

WASHER

SPACER - bolt, 7 mm thick

2шт.
