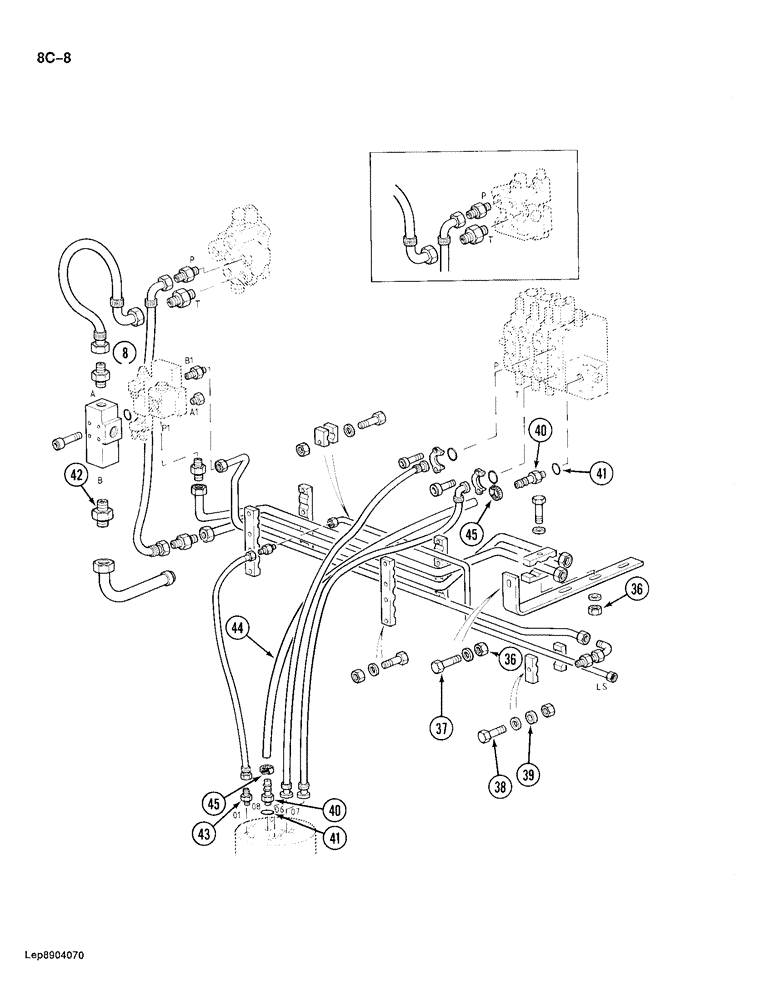

Запчасти Case 688 (8C-08) - SWIVEL AND SWING MOTOR HYDRAULIC CIRCUIT, P.I.N. FROM 11601 TO 11653 (08) - HYDRAULICS

36

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

2шт.

37

P933839

SCREW

BOLT - hex, 10 mm x 35 mm

1шт.

38

P133849

SCREW

BOLT - hex, 8 mm x 80 mm

1шт.

39

P4328730

WASHER

SPACER - bolt, 20 mm thick

1шт.

40

P3237582

FITTING

ADAPTER - straight, barb hose type

2шт.

41

P5746063

SEAL

- adapter

2шт.

42

P4237597

UNION

ADAPTER - straight

1шт.

P945294

SEAL

- adapter

1шт.

43

P3237530

UNION

ADAPTER - straight

1шт.

P7046042

SEAL

- adapter

1шт.

44

REF

INSTRUCTION

HOSE - return, swivel to block, 31-1/2" long, cut from P1103635

1шт.

45

P36998

COLLAR CLAMP

CLAMP - hose

2шт.
