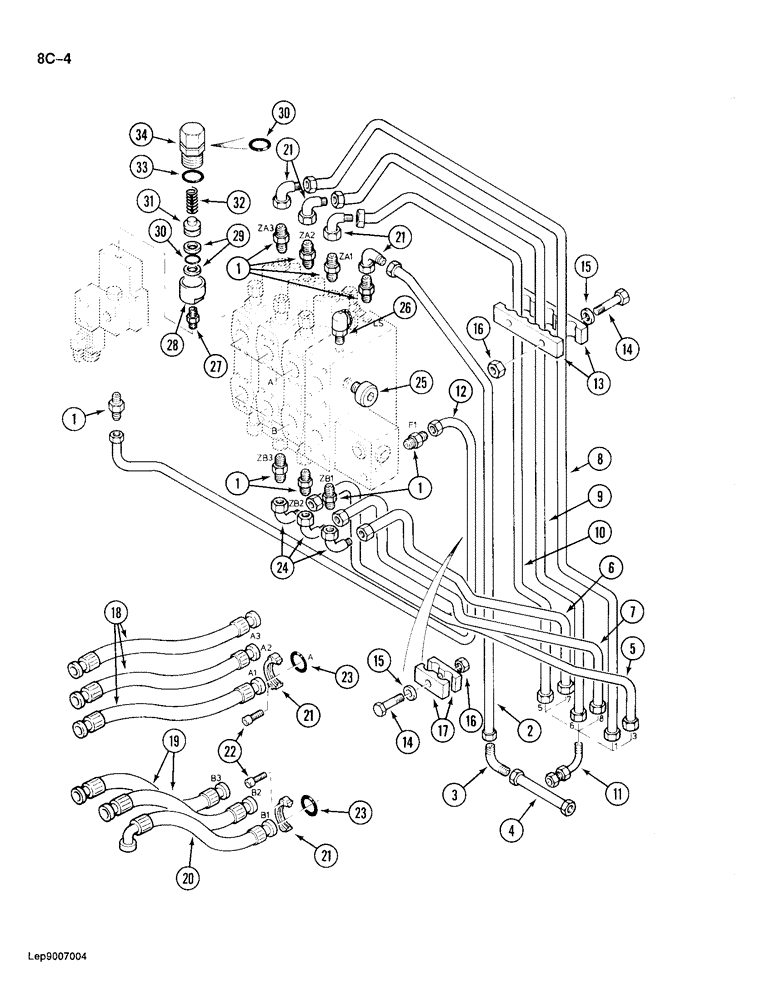

Запчасти Case 688 (8C-04) - HYDRAULIC CONTROL CIRCUIT, TO SOLENOID AND ATTACHMENT CONTROL VALVES PIN FROM 11654 & AFTER (08) - HYDRAULICS

1

P3237530

UNION

ADAPTER - straight

9шт.

P7046042

SEAL

- adapter

1шт.

2

P6449069

PIPE

TUBE - leak return, at parallel section

1шт.

3

P1737055

ANGLE

ELBOW - 90 degree

1шт.

4

P4637609

PIPE

TUBE - leak return, lower

1шт.

5

P7449146

PIPE

TUBE - control, lower port of arm control section

1шт.

6

P7449142

PIPE

TUBE - control, lower port of boom control section

1шт.

7

P7449144

PIPE

TUBE - control, lower port of bucket control section

1шт.

8

P7449145

PIPE

TUBE - control, upper port of arm control section

1шт.

9

P7449143

PIPE

TUBE - control, upper port of bucket control section

1шт.

10

P7449141

PIPE

TUBE - control, upper port of boom control section

1шт.

11

P1737008

ANGLE

ELBOW - 90 degree

6шт.

12

P7249111

PIPE

TUBE - control, to solenoid control valve

1шт.

13

P4620327

SHIN

CLAMP - tube, for five tubes

4шт.

14

P33822

SCREW

BOLT - hex, 8 mm x 50 mm

7шт.

15

P3528794

WASHER

SPACER - bolt, 6 mm thick

8шт.

16

P134596

SAFETY NUT

NUT - hex, self-locking, 8 mm

8шт.

17

P4420364

SHIN

CLAMP - tube, for two tubes

4шт.

18

P5931952

HOSE

- 39-3/8", Serial Range: long,-cylinders

3шт.

19

P5931978

HOSE

- 49-3/16", Serial Range: long,-cylinders

2шт.

20

REF

INSTRUCTION

HOSE - to cylinders, see Figure 8G-4

1шт.

21

P4024266

CLAMP

SPLIT FLANGE - hose flange

12шт.

22

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

24шт.

23

P1130483

O-RING

- hose flange

6шт.

24

P1737018

ANGLE

ELBOW - 90 degree

2шт.

25

P2537413

PLUG

- attachment control valve

1шт.

P1145268

SEAL

- plug

1шт.

26

P3237549

UNION

DISCONNECT ASSEMBLY - pressure check

1шт.

P7046042

SEAL

- disconnect assembly

1шт.

27

P4237509

UNION

ADAPTER - solenoid valve to anti-surge valve

1шт.

P7046042

SEAL

- disconnect assembly

1шт.

P5837716

CARTRIDGE

ANTI-SURGE VALVE - swing brake release, Includes: Ref. 28 - 34

1шт.

28

NSS

NOT SOLD SEPARAT

CARTRIDGE - anti-surge valve

1шт.

29

P1145296

BACK-UP RING

BACKUP RING - O-ring

2шт.

30

P30458

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

- piston

2шт.

31

P6427836

PISTON

- anti-surge valve

1шт.

32

P2838110

SPRING

- anti-surge valve

1шт.

33

P1230493

O-RING

- cap

1шт.

34

NSS

NOT SOLD SEPARAT

CAP - anti-surge valve

1шт.
