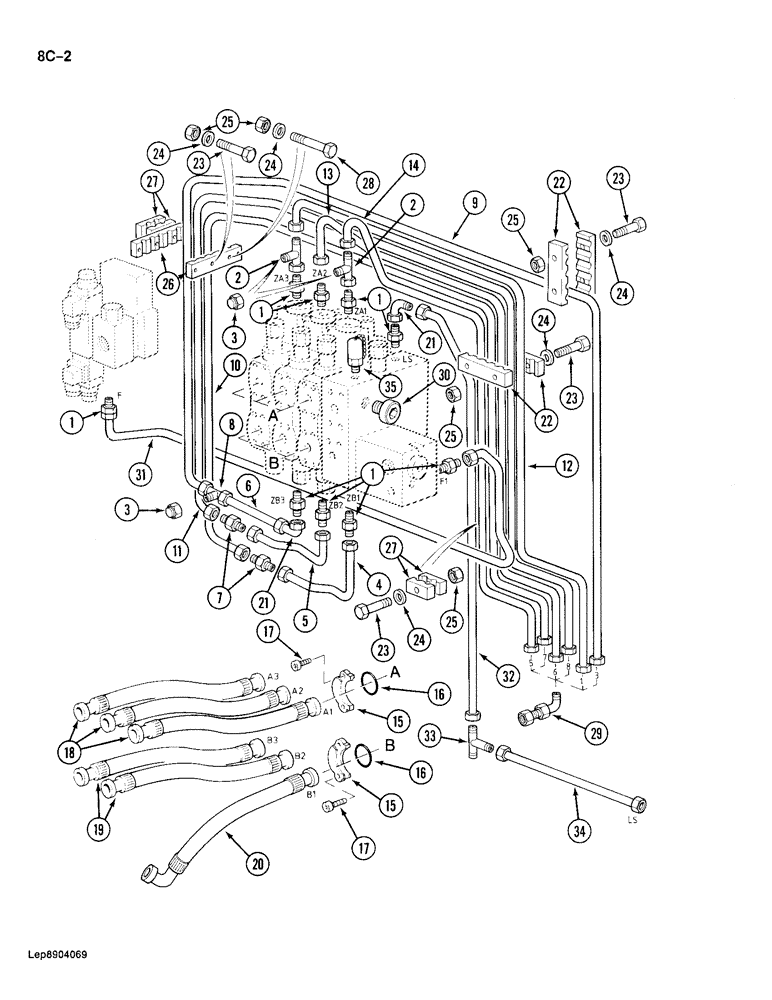

Запчасти Case 688 (8C-02) - HYD. CONTROL CIRCUIT, TO SOLENOID & ATTACHMENT CONTROL VALVES PIN FROM 11601 TO 11653 (08) - HYDRAULICS

1

P3237530

UNION

ADAPTER - straight

9шт.

P7046042

SEAL

- adapter

1шт.

2

P937295

TEE

- street

2шт.

3

P2537406

BLANK-OFF PLUG

CAP - tee

3шт.

4

P6349089

PIPE

TUBE - control, lower port of boom control section, lower portion

1шт.

5

P6349090

PIPE

TUBE - control, lower port of bucket control section, lower portion

1шт.

6

P4137657

PIPE

TUBE - control, lower part of arm control section, lower section

1шт.

7

P3237534

UNION

ADAPTER - straight

2шт.

8

P937274

TEE

- street

1шт.

9

P6749184

PIPE

TUBE - control, lower port of arm control section, upper section

1шт.

10

P6749191

PIPE

TUBE - control, lower port of boom control section, upper portion

1шт.

11

P6749190

PIPE

TUBE - control, lower port of bucket control section, upper section

1шт.

12

P6249125

PIPE

TUBE - control, upper port of arm control section

1шт.

13

P6249127

PIPE

TUBE - control, upper port of bucket control section

1шт.

14

P6249126

PIPE

TUBE - control, upper port of boom control section

1шт.

15

P4024266

CLAMP

SPLIT FLANGE - hose flange

12шт.

16

P1130483

O-RING

- hose flange

6шт.

17

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

24шт.

18

P5931952

HOSE

- 39-3/8", Serial Range: long,-cylinders

3шт.

19

P5931978

HOSE

- 49-3/16", Serial Range: long,-cylinders

2шт.

20

REF

INSTRUCTION

HOSE - to cylinders, see Figure 8G-4

1шт.

21

P1737018

ANGLE

ELBOW - 90 degree

2шт.

22

P4620327

SHIN

CLAMP - tube, for five tubes

4шт.

23

P33822

SCREW

BOLT - hex, 8 mm x 50 mm

7шт.

24

P3528794

WASHER

SPACER - bolt, 6 mm thick

8шт.

25

P134596

SAFETY NUT

NUT - hex, self-locking, 8 mm

8шт.

26

P4420368

SHIN

CLAMP - tube, for four tubes

2шт.

27

P4420364

SHIN

CLAMP - tube, for two tubes

4шт.

28

P133849

SCREW

BOLT - hex, 8 mm x 80 mm

1шт.

29

P1737008

ANGLE

ELBOW - 90 degree

6шт.

30

P2537413

PLUG

- attachment control valve

1шт.

P1145268

SEAL

- plug

1шт.

31

P7249111

PIPE

TUBE - control, to solenoid control valve

1шт.

32

P6449069

PIPE

TUBE - leak return, at parallel section

1шт.

33

P937274

TEE

- street

1шт.

34

P4637609

PIPE

TUBE - leak return, lower

1шт.

35

P3237549

UNION

DISCONNECT ASSEMBLY - pressure check

1шт.

P7046042

SEAL

- disconnect assembly

1шт.
