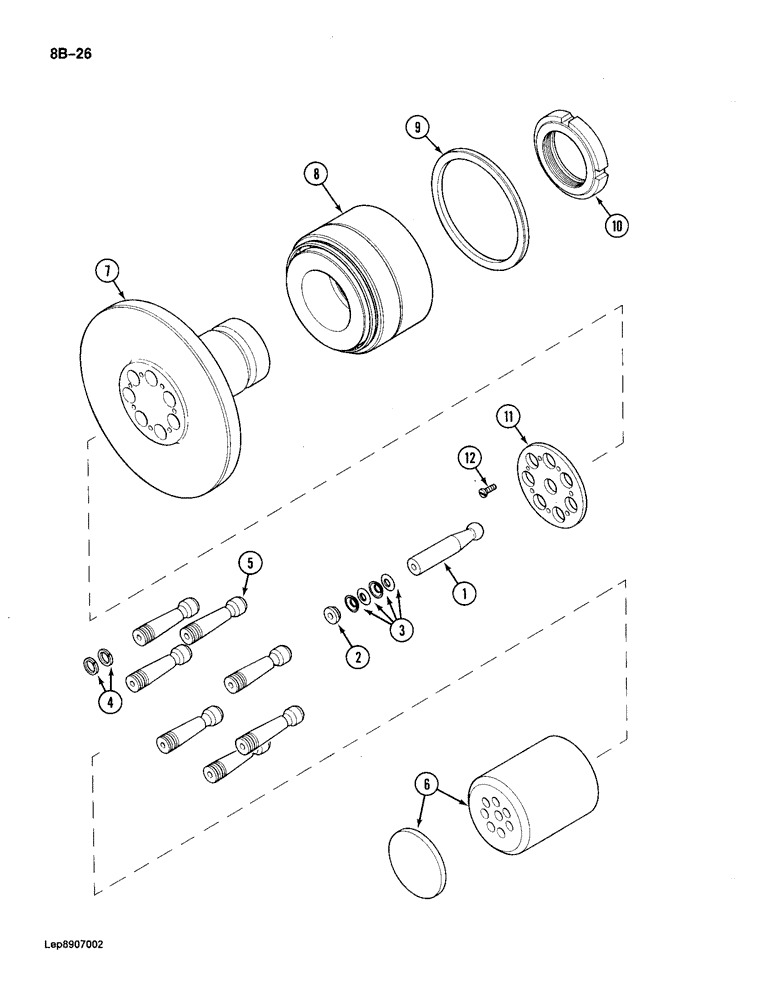

Запчасти Case 688 (8B-26) - ROTARY GROUP (08) - HYDRAULICS

P4543544

PUMP

HYDRAULIC PUMP ASSEMBLY - high pressure, Serial Range: 11601-XXXXX

1шт.

P4543564

PUMP

HYDRAULIC PUMP ASSEMBLY - high pressure, Start Serial: XXXXX

1шт.

P3843604

ROTOR

ROTATING GROUP - hydraulic pump, swing control, Includes: Ref. 1 - 12, Serial Range: 11601-XXXXX

1шт.

P3843626

ROTOR

ROTATING GROUP - hydraulic pump, swing control, Includes: Ref. 1 - 12, Start Serial: XXXXX

1шт.

P8646286

LOCK, CYLINDER

BARREL ASSEMBLY - rotating group, swing control, Includes: Ref. 1 - 6

1шт.

1

P8646287

PISTON

- barrel, middle position

1шт.

2

P3628840

GUIDE

SEAT - barrel

1шт.

3

P934910

WASHER

- spring

4шт.

4

P9346068

SCRAPER RING

RING - piston

14шт.

5

NSS

NOT SOLD SEPARAT

PISTON - barrel

7шт.

6

NSS

NOT SOLD SEPARAT

CYLINDER - piston assembly

1шт.

7

NSS

NOT SOLD SEPARAT

SHAFT - drive, piston pump

1шт.

8

NSS

NOT SOLD SEPARAT

BEARING - shaft, large

1шт.

9

P1946347

BLOCK

SHIM - bearing adjusting

1шт.

10

NSS

NOT SOLD SEPARAT

NUT - bearing

1шт.

11

P2728988

LARGE PLATE

PLATE - piston shoe

1шт.

12

P3533074

SCREW

- slotted, 3 mm x 8 mm

7шт.
