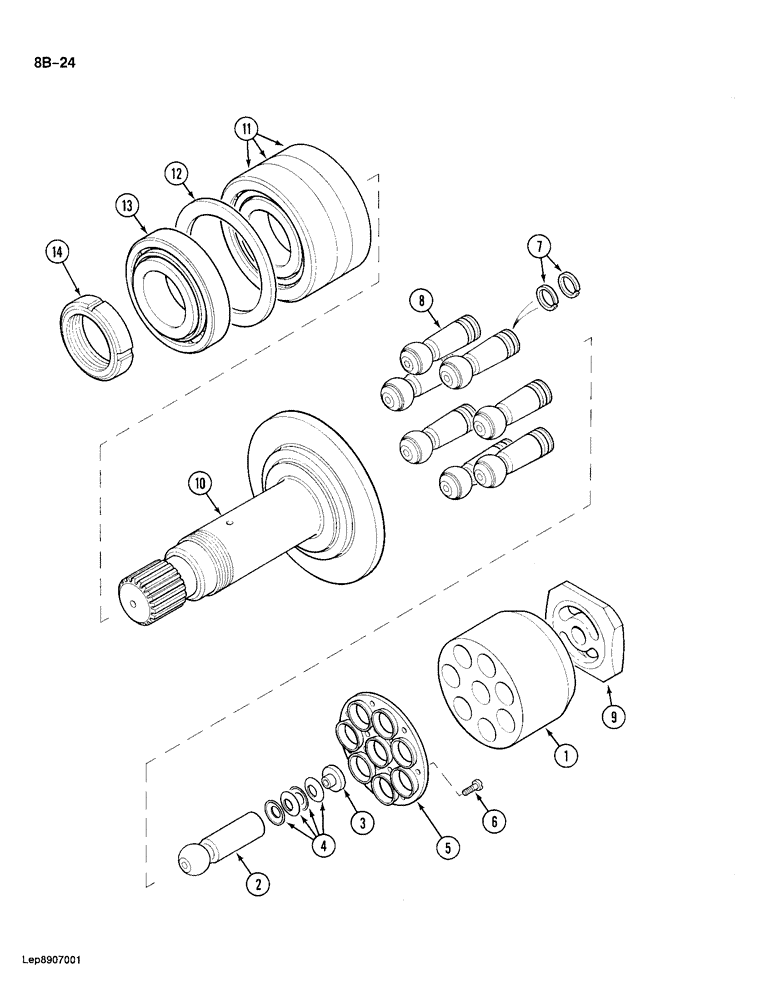

Запчасти Case 688 (8B-24) - ROTARY GROUP (08) - HYDRAULICS

P4543544

PUMP

HYDRAULIC PUMP ASSEMBLY - high pressure, Serial Range: 11601-XXXXX

1шт.

P4543564

PUMP

HYDRAULIC PUMP ASSEMBLY - high pressure, Start Serial: XXXXX

1шт.

P3843603

ROTOR

ROTATING GROUP - hydraulic pump, adjustable flow, Serial Range: 11601-XXXXX

1шт.

P3843625

ROTOR

ROTATING GROUP - hydraulic pump, adjustable flow, Start Serial: XXXXX

1шт.

P8646282

LOCK CYLINDER

BARREL ASSEMBLY - rotating group, adjustable flow

1шт.

1

NSS

NOT SOLD SEPARAT

CYLINDER piston assembly

1шт.

2

P8646283

PISTON

- barrel, middle position

1шт.

3

P3628834

CUPEL

SEAT - barrel

1шт.

4

P934909

WASHER

- spring

4шт.

5

P2728987

LARGE PLATE

PLATE - piston shoe

1шт.

6

P32571

SCREW

- slotted, 5 mm x 16 mm

14шт.

7

P9346059

SCRAPER RING

RING - piston

14шт.

8

NSS

NOT SOLD SEPARAT

PISTON - barrel

7шт.

9

P8646281

DISTRIBUTOR

PLATE - swash

1шт.

10

NSS

NOT SOLD SEPARAT

SHAFT - drive, piston pump

1шт.

11

NSS

NOT SOLD SEPARAT

BEARING - shaft, large

1шт.

12

NSS

NOT SOLD SEPARAT

PLATE - bearing

1шт.

13

NSS

NOT SOLD SEPARAT

BEARING - shaft, small

1шт.

14

NSS

NOT SOLD SEPARAT

NUT - bearing

1шт.
