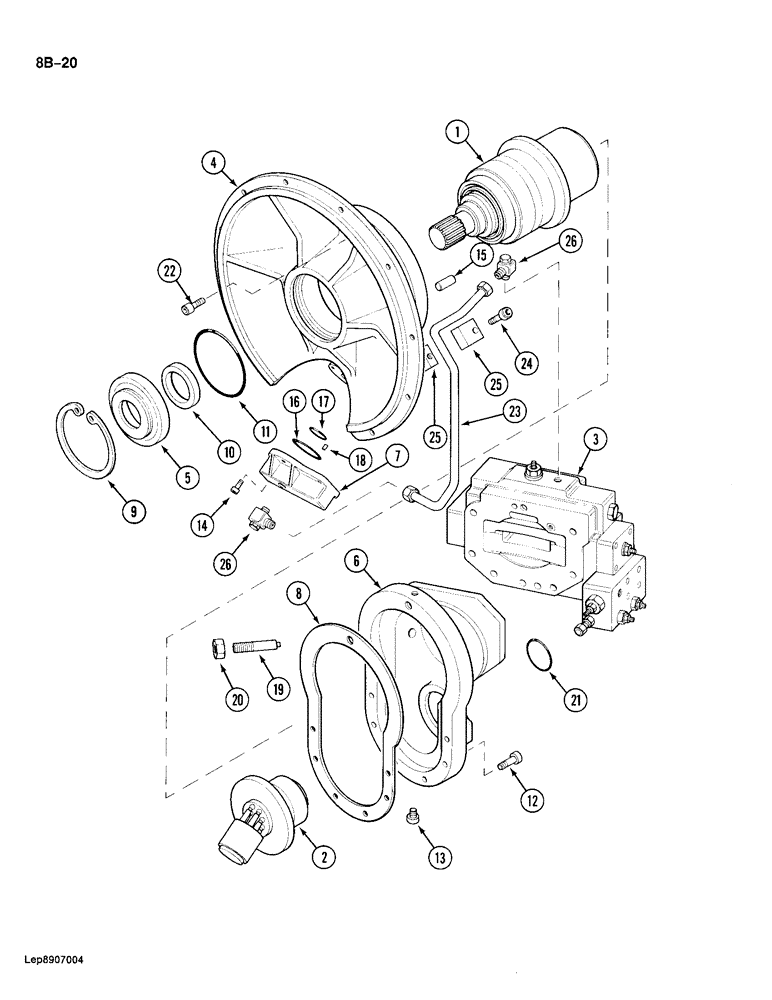

Запчасти Case 688 (8B-20) - HIGH PRESSURE HYDRAULIC PUMP, P.I.N. FROM 11601 TO 11653. (08) - HYDRAULICS

P4543544

PUMP

HYDRAULIC PUMP ASSEMBLY - high pressure, Includes: Ref. 1 - 26

1шт.

1

REF

INSTRUCTION

ROTATING GROUP - hydraulic pump, adjustable flow, see Figure 8B-24

1шт.

2

REF

INSTRUCTION

ROTATING GROUP - hydraulic pump, swing control, see Figure 8B-26

1шт.

3

REF

INSTRUCTION

REGULATOR - hydraulic pump, see Figure 8B-28

1шт.

4

P5240339

HOUSING

- pump assembly (Order (1) housing P5240363, (1) retainer P2728990 & (1) seal P9346065)

1шт.

5

P2728986

FLANGE

RETAINER - seal

1шт.

6

P5240340

HOUSING

- rear

1шт.

7

P5240341

HEAD (CYLINDER)

BODY - swing rotating group

1шт.

8

P9346065

SEAL

- housing to rear housing

1шт.

9

P36260

RING, SNAP

SNAP RING - retainer

1шт.

10

P8846071

GASKET

SEAL - shaft (Replaces P8846072)

1шт.

11

P2930490

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

-, Serial Range: retainer-housing

1шт.

12

W1232958

BOLT,M8 x 45mm, Cl 10.9

6шт.

13

P3337447

PLUG

- housing

2шт.

14

P32910

SCREW

BOLT - hex socket, 6 mm x 16 mm

6шт.

15

P36055

DEUTZ PART

PIN - housing location

2шт.

16

P2930484

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

- body to housing, large

1шт.

17

P2930488

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

- body to housing, small

1шт.

18

P1136024

SPLIT PIN/SAFETY PIN

PIN - body to swing rotating group

1шт.

19

P32890

SCREW

- adjusting

1шт.

20

P3037501

UNION

NUT - adjusting screw

1шт.

21

P2930452

O-RING,0.07" Thk x 3.239" ID, -42, Cl 5, 75 Duro

- housing to low pressure pump

1шт.

22

P32944

SCREW

BOLT - hex socket, 12 mm x 40 mm

6шт.

P4050188

PIPE

TUBE ASSEMBLY - regulator to swing control valve body

1шт.

23

NSS

NOT SOLD SEPARAT

TUBE - regulator to swing control valve body

1шт.

24

P32911

SCREW

BOLT - hex socket, 6 mm x 20 mm

2шт.

25

P5120374

SHIN

CLAMP -, Serial Range: tube-housing

2шт.

26

P4837512

FITTING

ADAPTER -, Serial Range: tube-body

2шт.

P4743376

VALVE

flow cancellation

1шт.

Adopted starting with valve number 8529030001.

1шт.
