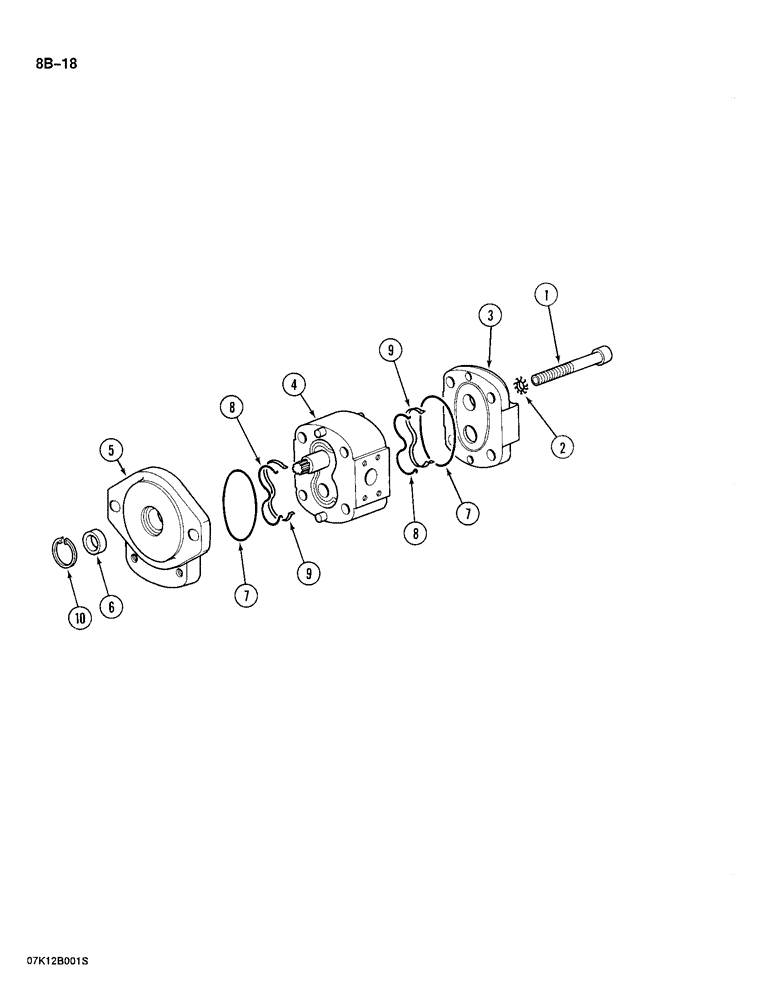

Запчасти Case 688 (8B-18) - LOW PRESSURE HYDRAULIC PUMP (08) - HYDRAULICS

P4543548

PUMP

HYDRAULIC PUMP ASSEMBLY - low pressure, Includes: Ref. 1 - 10

1шт.

1

NSS

NOT SOLD SEPARAT

BOLT - hex socket head, cover and housing

2шт.

2

NSS

NOT SOLD SEPARAT

WASHER - lock, cover and housing bolt

2шт.

3

NSS

NOT SOLD SEPARAT

COVER - pump, closed end

1шт.

4

NSS

NOT SOLD SEPARAT

GEAR HOUSING ASSEMBLY - includes drive shaft and gears

1шт.

5

NSS

NOT SOLD SEPARAT

COVER - pump, drive end

1шт.

6

P151415

OIL SEAL

SEAL - drive and cover

1шт.

P5949616

SEAL PACKAGE

KIT - repair, seal, Includes: Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING - covers to gear housing assembly

2шт.

8

NSS

NOT SOLD SEPARAT

SEAL - gear housing assembly

2шт.

9

NSS

NOT SOLD SEPARAT

PROTECTOR - housing seal

2шт.

10

P36215

RING, SNAP

SNAP RING - seal retaining

1шт.
