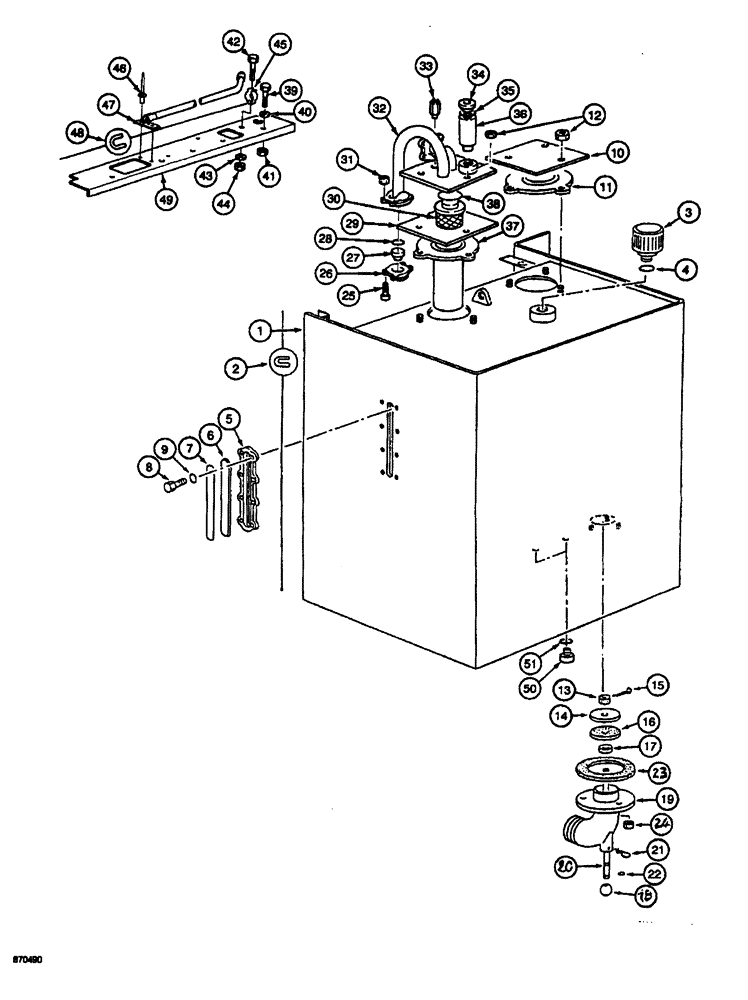

Запчасти Case 688 (8-002) - HYDRAULIC RESERVOIR, P.I.N. FROM 74123 TO 74127 (08) - HYDRAULICS

1

P1540242

OIL RESERVOIR

RESERVOIR - hydraulic oil

1шт.

2

REF

INSTRUCTION

TRIM - edge, 28-3/4" long, cut from P1303155

1шт.

3

P1950543

BREATHER

- hydraulic reservoir

1шт.

4

P245217

WASHER, SEALING

SEAL -, Serial Range: breather-reservoir

1шт.

5

P423428

BODY

RETAINER - sight gauge

1шт.

6

P22485

SIGHTGLASS

LENS - sight gauge

1шт.

7

P130487

O-RING

- lens

1шт.

8

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8

8шт.

9

P28425

COMPOSITE SEAL

WASHER - special, sealing

8шт.

10

P2023241

COVER

- hydraulic reservoir

1шт.

11

P8846035

SEAL

- cover

1шт.

12

P134596

SAFETY NUT

NUT - hex, self-locking, 8 mm

6шт.

P837841

VANEUM GAUGE

SHUTOFF VALVE ASSEMBLY - hydraulic, Includes: Ref. 13 - 22

1шт.

13

P34303

NUT

- hex, slotted

1шт.

14

P2828550

WASHER

PLATE - shutoff

1шт.

15

P35510

SPLIT PIN

COTTER PIN - 2 mm x 20 mm

1шт.

16

P7546099

SEAL

GASKET - shutoff plate

1шт.

17

P2828548

WASHER

- special, shutoff rod

1шт.

18

P152059

BALL KNOB

KNOB - control rod

1шт.

19

NSS

NOT SOLD SEPARAT

BODY - shutoff valve

1шт.

20

P2127954

STEM

ROD - shutoff control

1шт.

21

P36016

SPLIT PIN/SAFETY PIN

PIN - retainer

1шт.

22

P1930415

O-RING

- control rod

1шт.

23

P7546084

SEAL

GASKET -, Serial Range: valve-reservoir

1шт.

24

P134596

SAFETY NUT

NUT - hex, self-locking, 8 mm

3шт.

26

P4024263

SHIN

SPLIT FLANGE - tube plug

1шт.

27

P5327844

BLANK-OFF PLUG

PLUG - tube

1шт.

28

P1230493

O-RING

- tuble plug

1шт.

29

P4540383

COVER

HOUSING - filter

1шт.

30

P1950578

CARTRIDGE

ELEMENT - return oil filter

1шт.

P2930419

O-RING

- element, lower, not shown

1шт.

31

337475

NUT,M12, Cl 10

- M12, Cl 10

4шт.

32

P4540383

COVER

TUBE AND COVER - oil filter

1шт.

33

P1241851

ELECTRO/HYD CONTACT

SENDER - filter restriction indicator

1шт.

34

P1337409

PLUG

- filler, Includes: Ref. 34

1шт.

35

P130469

O-RING,40.95MM ID x 2.62MM Width

- plug

1шт.

36

P1037311

RESTRICTOR

ADAPTER -, Serial Range: plug-cover

1шт.

37

P8846035

SEAL

- filter, Serial Range: housing-reservoir

1шт.

38

P30495

O-RING

- element, upper

1шт.

39

P33873

SCREW

BOLT - hex head, 12 mm x 25 mm

4шт.

40

P34613

WASHER

- flat, 12 mm

4шт.

41

P34596

LOCK NUT

NUT - hex, self-locking, 12 mm

4шт.

42

P32529

SCREW,Hex Soc Hd, M4 x 16

- slotted head, 4 mm x 16 mm

1шт.

43

P4328717

WASHER

SPACER - screw, 3 mm thick

1шт.

44

P34107

NUT - hex, 4 mm

1шт.

45

P1736995

FASTENER

CLIP - support rod

1шт.

46

P35418

RIVET

POP RIVET - 8 mm x 17 mm, Serial Range: rod-panel

2шт.

47

P736693

STAND

ROD - support, engine access cover

1шт.

48

REF

INSTRUCTION

TRIM - edge, 2-5/8" long, cut from P1303155

1шт.

49

P4825662

PLATE

PANEL - front, hydraulic reservoir

1шт.

50

P2537429

PLUG

- reservoir drain, Includes: Ref. 51

2-3шт.

51

P5746063

SEAL

- plug

1шт.
