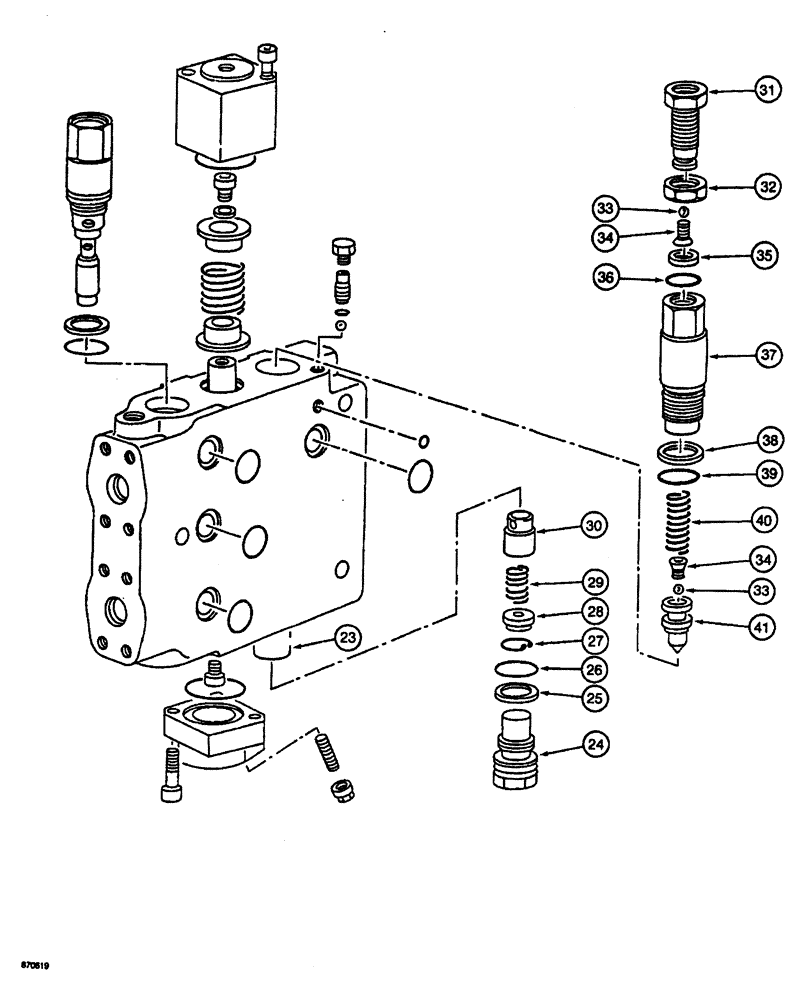

Запчасти Case 688 (7-20) - DRIVE CONTROL VALVE, TRACK DRIVE SECTION, P.I.N. FROM 74123 TO 74227 (07) - BRAKES

P3143667

DISTRIBUTOR

TRACK DRIVE SECTION ASSEMBLY - center, left-hand drive motor, Includes: Ref. 23 - 41

1шт.

P3143666

DISTRIBUTOR

TRACK DRIVE SECTION ASSEMBLY - inside, right-hand drive motor, Includes: Ref. 23 - 41

1шт.

23

NSS

NOT SOLD SEPARAT

PLUNGER - valve

1шт.

24

P3037406

PLUG

- valve body

1шт.

25

P1245232

RING

BACKUP RING - seal

1шт.

26

P2230463

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- plug

1шт.

27

NSS

NOT SOLD SEPARAT

SNAP RING - seat retainer

1шт.

28

NSS

NOT SOLD SEPARAT

SEAT - retainer

1шт.

29

NSS

NOT SOLD SEPARAT

SPRING - piston

1шт.

30

NSS

NOT SOLD SEPARAT

PISTON - plunger

1шт.

P3143686

SHOCK ABSORBER

FLOW CONTROL VALVE ASSEMBLY - drive control valve, Includes: Ref. 31 - 41

1шт.

31

P6027839

TAPPET

SCREW - adjusting, flow control valve

1шт.

32

P2434562

NUT

- lock, adjusting screw

1шт.

33

P31002

BALL

- check, flow control valve

2шт.

34

P3333043

SCREW

- ball retainer

2шт.

35

P1245231

BACK-UP RING

BACKUP RING - seal

1шт.

36

P2230462

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

- adjusting screw

1шт.

37

P2340475

CAP

BODY - flow control valve

1шт.

38

P1245232

RING

BACKUP RING - seal

1шт.

39

P2230463

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- body

1шт.

40

P1538155

SPRING

- flow control valve

1шт.

41

P7946210

PISTON

SEAT - ball, flow control valve

1шт.
