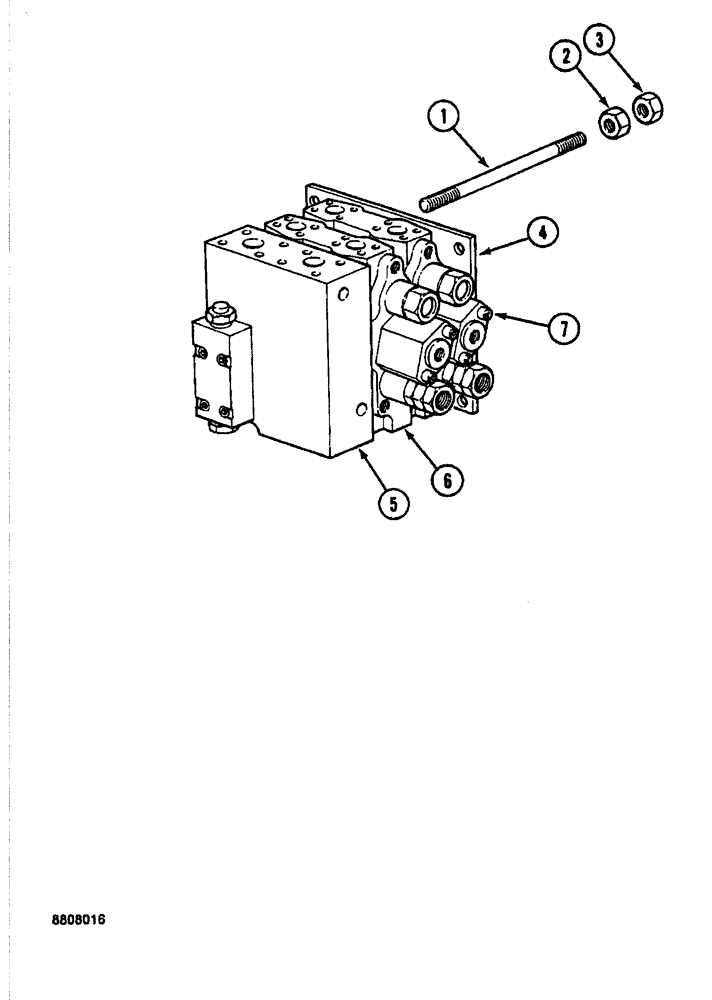

Запчасти Case 688 (7-16) - DRIVE CONTROL VALVE, P.I.N. FROM 74228 TO 74485, 11501 AND AFTER (07) - BRAKES

1

P2527739

STEM

STUD - control valve sections

3шт.

2

P34169

NUT

- hex, 16 mm

3шт.

3

P34564

NUT

- hex, self-locking, 16 mm

3шт.

4

P3143639

LARGE PLATE

PLATE - mounting, drive control valve

1шт.

5

REF

INSTRUCTION

SECTION ASSEMBLY - inlet and outlet, brake release valve, see Figure 7-22

1шт.

6

REF

INSTRUCTION

SECTION ASSEMBLY - track drive, center, left-hand drive motor, see Figures 7-24 & 7-26

1шт.

7

REF

INSTRUCTION

SECTION ASSEMBLY - track drive, inside, right-hand drive motor, see Figures 7-24 & 7-26

1шт.
