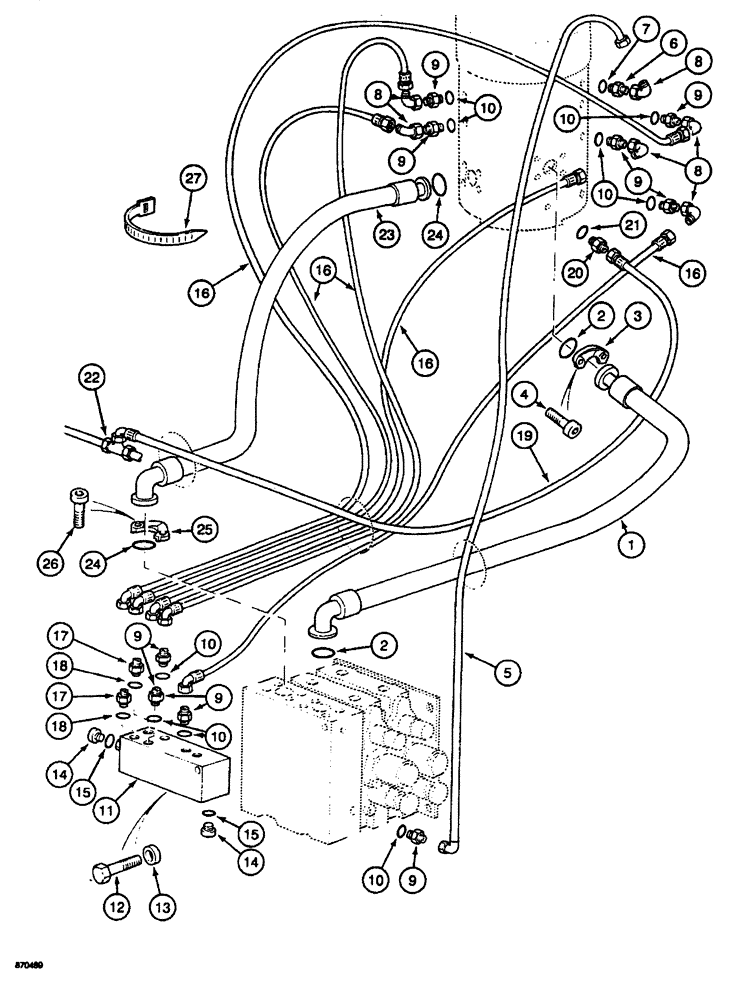

Запчасти Case 688 (7-10) - PRESSURE AND RETURN LINE, TO DRIVE CONTROL VALVE, P.I.N. FROM 74123 TO 74227 (07) - BRAKES

1

P5431934

HOSE

- 31-1/2" long, pressure, to center block of drive control valve

1шт.

2

P330421

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

- hose flange

2шт.

3

P4024267

SHIN

SPLIT FLANGE - hose

4шт.

4

J532918

SCREW,Hex Skt, M12 x 40mm, Cl 10.9

8шт.

5

P5431940

HOSE

- 39-3/8" long, pressure sensing (Replaces P5431986)

1шт.

6

P3743308

VALVE POPPET

ADAPTER - power sensing hose to swivel, Includes: Ref. 7

1шт.

7

P7046042

SEAL

- adapter

1шт.

8

P1737018

ANGLE

ELBOW - 90 degree

6шт.

9

P3237530

UNION

ADAPTER - straight, Includes: Ref. 10

9шт.

10

P7046042

SEAL

- adapter, not shown

1шт.

11

REF

INSTRUCTION

VALVE ASSEMBLY - brake release, see Figures 7-28

1шт.

12

P433855

SCREW

BOLT - hex head, 6 mm x 70 mm

2шт.

13

P3528799

WASHER

SPACER - bolt, 4 mm thick

2шт.

14

P2537447

PLUG

- brake release valve, Includes: Ref. 15

2шт.

15

P7046042

SEAL

- adapter, not shown

1шт.

16

P5431979

HOSE,6.20 mm ID x 900.00 mm

- pilot, swivel to brake release valve 6.20 mm ID x 900.00 mm

5шт.

17

P3237581

UNION

ADAPTER - straight, Includes: Ref. 18

2шт.

18

P7046042

SEAL

- adapter, not shown

1шт.

19

P5431985

HOSE

- 31-1/2" long, leak return

1шт.

20

P3237532

UNION

ADAPTER - straight, Includes: Ref. 21

1шт.

21

P2230418

SEAL

O-RING - adapter

1шт.

22

REF

INSTRUCTION

TEE - from brake leak return tubes, see Figures 7-2 & 7-4

1шт.

23

P5431941

HOSE

- 31-1/2" long, Serial Range: return-swivel

1шт.

24

P330421

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

- hose flange

2шт.

25

P4024272

BRACKET

SPLIT FLANGE - hose

4шт.

26

P732911

SCREW

BOLT - hex socket head, 12 mm x 30 mm, grade 10.9

8шт.

27

P51946

CLAMP

TIE STRAP - hose, 10-1/8" long

1шт.
